Emission Control System (2GR-FE) (Service Information): Canister: Components: Illustration

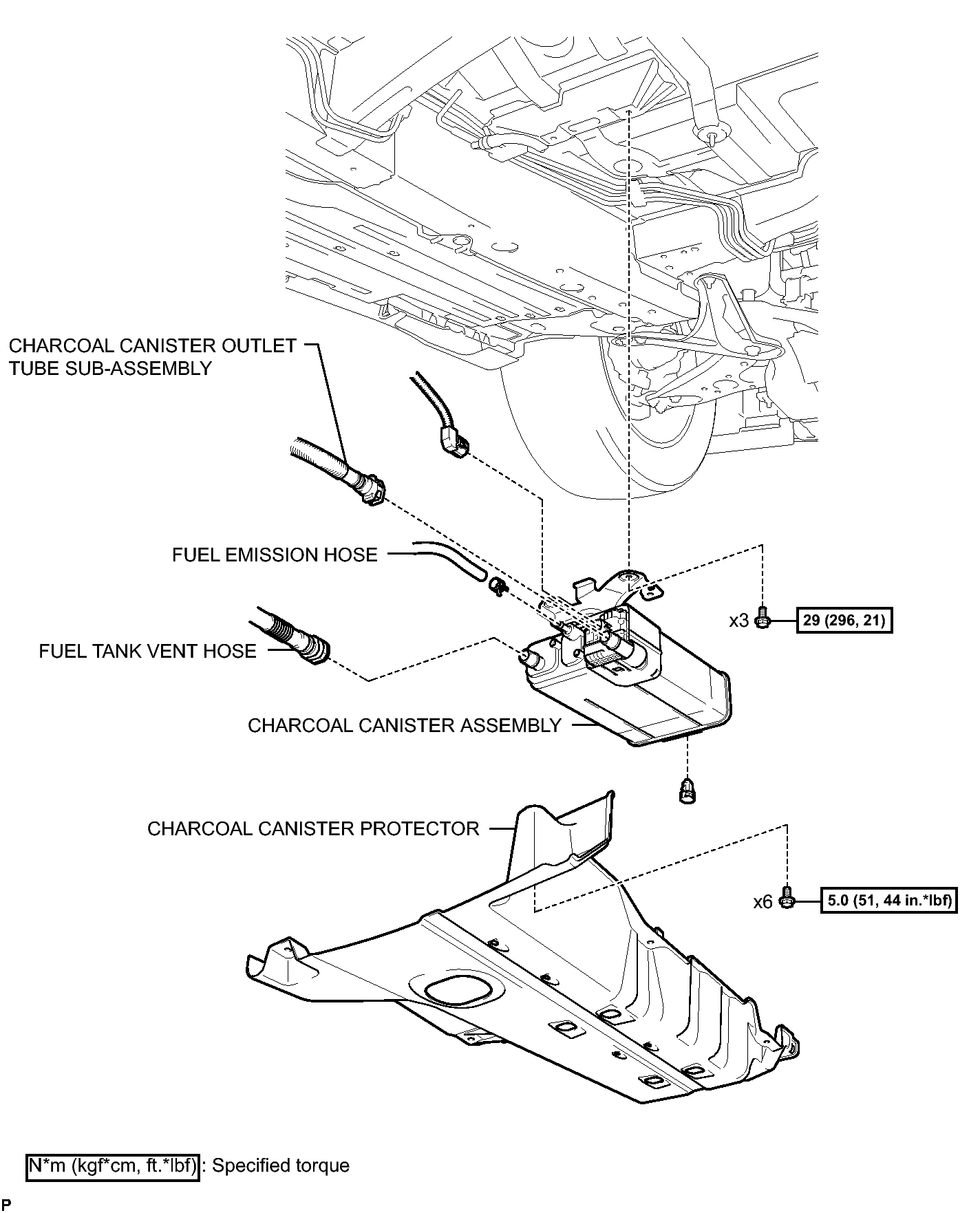

Fig 1: Identifying Canister Replacement Components Location With Torque Specifications
GTY296646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
