Shift Lock System: Inspection: Inspection

INSPECT KEY INTERLOCK SOLENOID

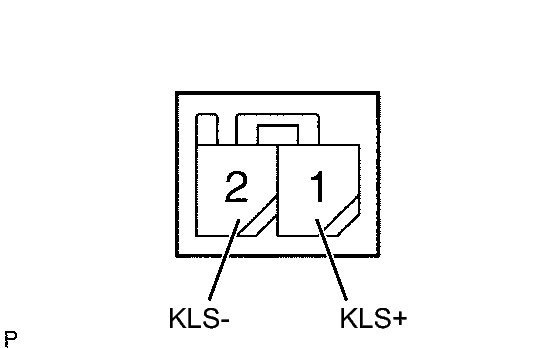

Fig 1: Inspecting Key Interlock Solenoid
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the solenoid connector.
2. Connect the battery's positive (+) lead to terminal 1 (KLS+) and the battery's negative (-) lead to terminal 2 (KLS-). Check that the operating noise of the solenoid can be heard.
  If the result is not as specified, replace the shift lock control unit assembly.
