System Diagram

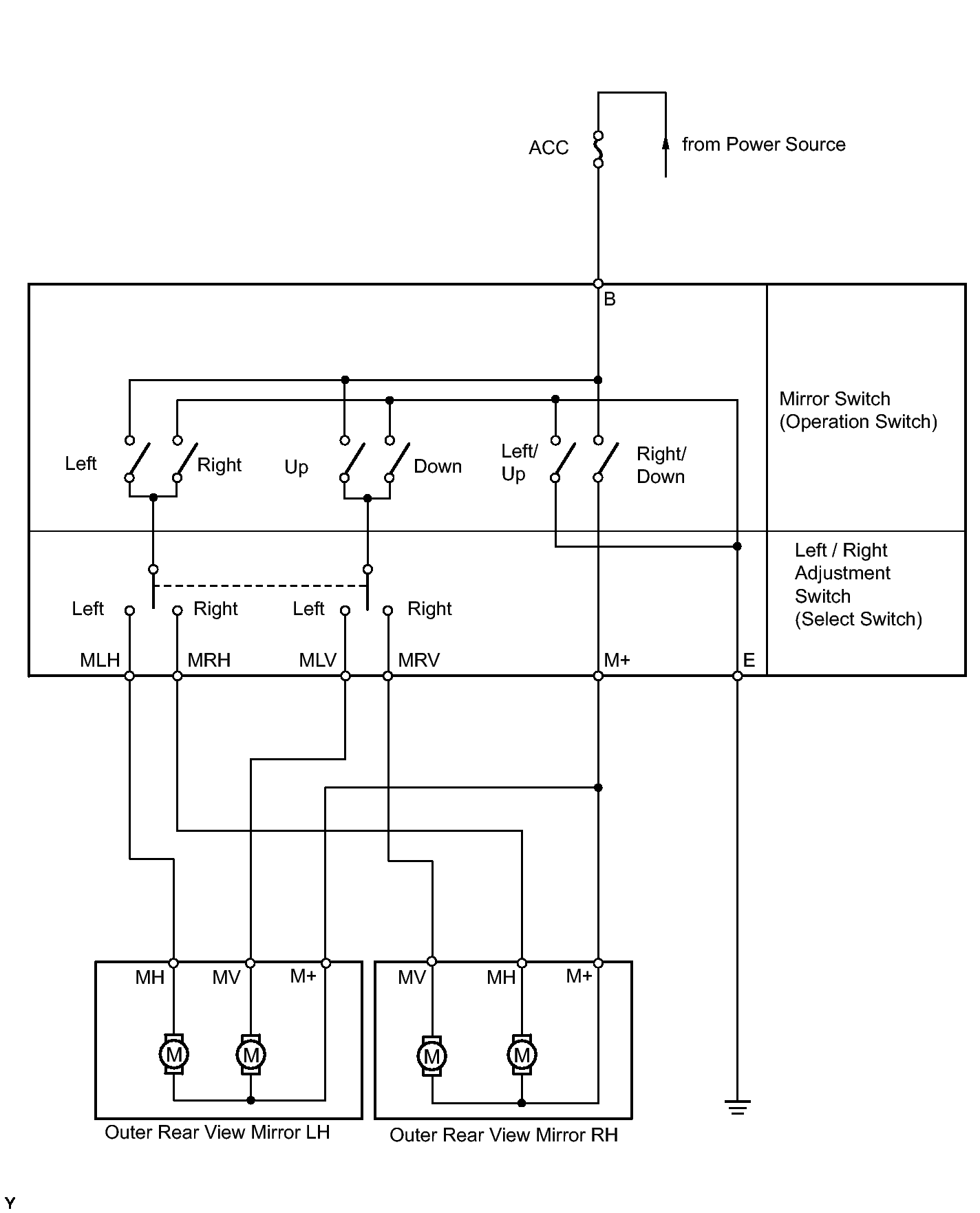

Fig 1: Power Mirror Control Circuit Diagram

GTY213764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
