Home >> Toyota >> 2011 >> RAV4 Base, 2.5 F, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control Main Switch (Service Information) >> Cruise Control Main Switch >> Components >> Illustration

Cruise Control Main Switch: Components: Illustration

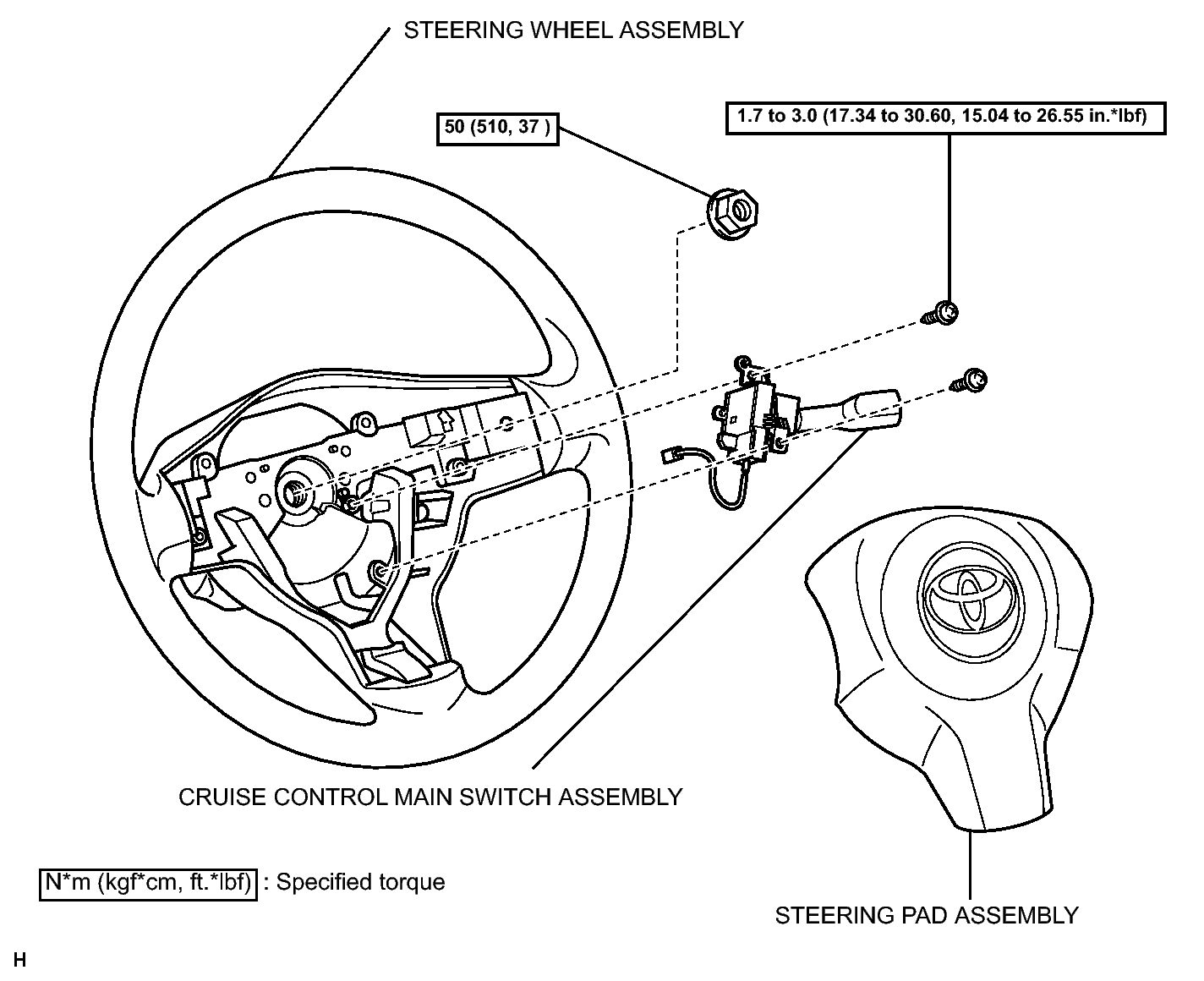

Fig 1: Identifying Cruise Control Main Switch Replacement Components With Torque Specifications

GTY239593

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
