Fuel Tank: Installation: Installation

  1. INSTALL NO. 1 FUEL TANK CUSHION (for 4WD)
    1. Install new No. 1 fuel tank cushions onto the fuel tank.
      Fig 1: Locating No. 1 Fuel Tank Cushion (4WD)
      GTY216405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 3 FUEL TANK CUSHION (for 4WD)
    1. Install new No. 3 fuel tank cushions onto the fuel tank.
      Fig 2: Locating No. 3 Fuel Tank Cushion (4WD)
      GTY220448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FUEL TANK CUSHION (for 2WD)
    1. Install new fuel tank cushions onto the fuel tank.
      Fig 3: Locating Fuel Tank Cushion (2WD)
      GTY229479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FUEL TANK VENT HOSE (for 4WD)
    1. Install the fuel tank vent hose.
      Fig 4: View Of Fuel Tank Vent Hose (4WD)
      GTY234878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FUEL TANK VENT HOSE (for 2WD)
    1. Install the fuel tank vent hose onto the fuel tube clamp.
      Fig 5: Locating Fuel Tank Clamp
      GTY177606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Install the fuel tank main tube onto the fuel tank.
      Fig 6: Locating Fuel Tank Main Tube
      GTY177631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FUEL TANK ASSEMBLY (for 4WD)
    1. Set the fuel tank on a transmission jack.
    2. Operate the transmission jack, then install the fuel tank into the vehicle.
      Fig 7: Holding Fuel Tank With Transmission Jack
      GTY238180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 No. 1 fuel tank bands with the 4 bolts.
      Fig 8: Remove/Install No. 1 Fuel Tank Bands And Bolts (4WD)
      GTY219883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  8. INSTALL FUEL TANK ASSEMBLY (for 2WD)
    1. Set the fuel tank on a transmission jack.
    2. Operate the transmission jack, then install the fuel tank into the vehicle.
      Fig 9: Holding Fuel Tank With Transmission Jack
      GTY188416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 No. 1 fuel tank bands with the 4 bolts.
      Fig 10: Remove/Install No. 1 Fuel Tank Bands And Bolts (2WD)
      GTY176505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  9. INSTALL FUEL TANK FILLER PIPE SUB-ASSEMBLY
    1. Connect the fuel tank filler pipe hose to the fuel tank.
      Fig 11: Connecting Fuel Tank To Filler Pipe Hose To Fuel Tank
      GTY172365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the hose clamp is facing the correct direction when installing.

    2. Engage the claw, then install the fuel tank filler pipe cover onto the fuel tank filler pipe.
      Fig 12: View Of Fuel Tank Filler Pipe Cover Claw
      GTY173190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Connect the fuel tank main tube.
      Fig 13: Connecting The Fuel Tank Main Tube
      GTY237029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Align the fuel tube connector with the pipe, then push the fuel tube connector in until it comes into contact with the seat to connect the fuel tank main tube to the pipe, then push the retainer up until the claws lock.
        NOTE:
        • Check that there are no scratches or foreign objects around the connecting surfaces of the fuel tube connector and pipe before performing this work.
        • After connecting the fuel tank main tube, check that the fuel tank main tube is securely connected by pulling on the fuel tube connector and pipe.
  11. CONNECT BREATHER TUBE FUEL HOSE
    1. Connect the breather tube fuel hose.
      Fig 14: Locating Breather Tube Fuel Hose
      GTY172593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the breather tube fuel hose.
      Fig 15: Connecting Breather Tube Fuel Hose
      GTY232521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Align the fuel tube connector with the pipe, then push the fuel tube connector in until the retainer makes a "click" sound to connect the fuel tank breather tube to the pipe.
        NOTE:
        • Check that there are no scratches or foreign objects around the connecting surfaces of the fuel tube connector and pipe before performing this work.
        • After connecting the breather tube fuel hose, check that the fuel pump tube is securely connected by pulling on the fuel tube connector and pipe.
      2. Install the checker onto the pipe.
  12. CONNECT FUEL TANK VENT HOSE (for Torsion Beam Type Suspension)
    1. Connect the fuel tank vent hose.
      Fig 16: Connecting Fuel Tube Connector (Quick Type C)
      GTY227463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Align the fuel tube connector with the pipe, then push the fuel tube connector in until it comes into contact with the seat to connect the fuel tank vent hose to the pipe.
      2. Slide the retainer of the fuel tube connector to lock the claws as shown in the illustration.
        NOTE:
        • Check that there are no scratches or foreign objects around the connecting surfaces of the fuel tube connector and pipe before performing this work.
        • After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the fuel tube connector.
  13. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY (for Double Wishbone Type Suspension)
  14. INSTALL CHARCOAL CANISTER ASSEMBLY (for Double Wishbone Type Suspension)

    HINT:

  15. INSTALL FUEL TANK PROTECTOR SUB-ASSEMBLY (for 4WD)
    1. Install the fuel tank protector sub-assembly with the 4 bolts and 2 nuts.

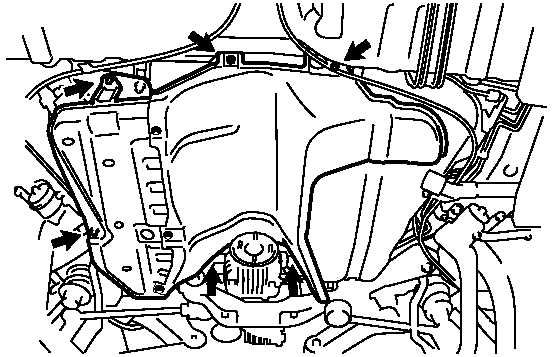

      Fig 17: Locating Fuel Tank Protector Fasteners (4WD)
      GTY231796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  16. INSTALL FUEL TANK PROTECTOR SUB-ASSEMBLY (for 2WD)
    1. Install the fuel tank protector sub-assembly with the 4 bolts.
      Fig 18: Locating Fuel Tank Protector Fasteners (2WD)
      GTY184503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  17. CONNECT PARKING BRAKE CABLE
    1. Install the parking brake cables with the 4 bolts.

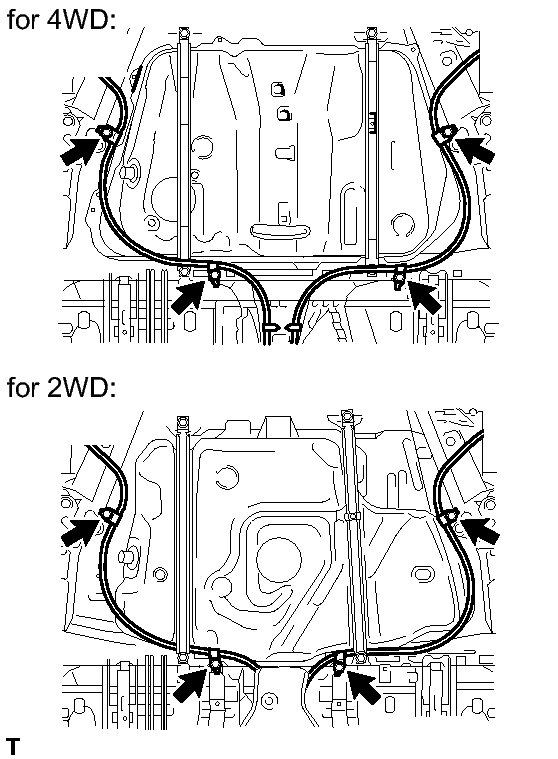

      Fig 19: Locating Parking Brake Cables With Bolts
      GTY238181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  18. TEMPORARILY INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD)  . Refer to INSTALLATION - Step 1
  19. FULLY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for 4WD)  . Refer to INSTALLATION - Step 2
  20. INSTALL CENTER EXHAUST PIPE ASSEMBLY (for 4WD)

    HINT:

    Refer to INSTALLATION - Step 10

  21. INSTALL CENTER EXHAUST PIPE ASSEMBLY (for 2WD)

    HINT:

    Refer to INSTALLATION - Step 9

  22. ADD FUEL
  23. INSTALL FUEL SENDER GAUGE RH ASSEMBLY (for 4WD)  See step  1
  24. INSTALL FUEL SUCTION TUBE ASSEMBLY
    1. Install the fuel suction tube assembly to the fuel tank assembly. Refer to INSTALLATION .
  25. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  26. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  27. INSPECT FOR EXHAUST GAS LEAK
  28. INSTALL NO. 2 REAR FLOOR SERVICE HOLE COVER (for 4WD)  See step  7
