Parts Location: Illustration

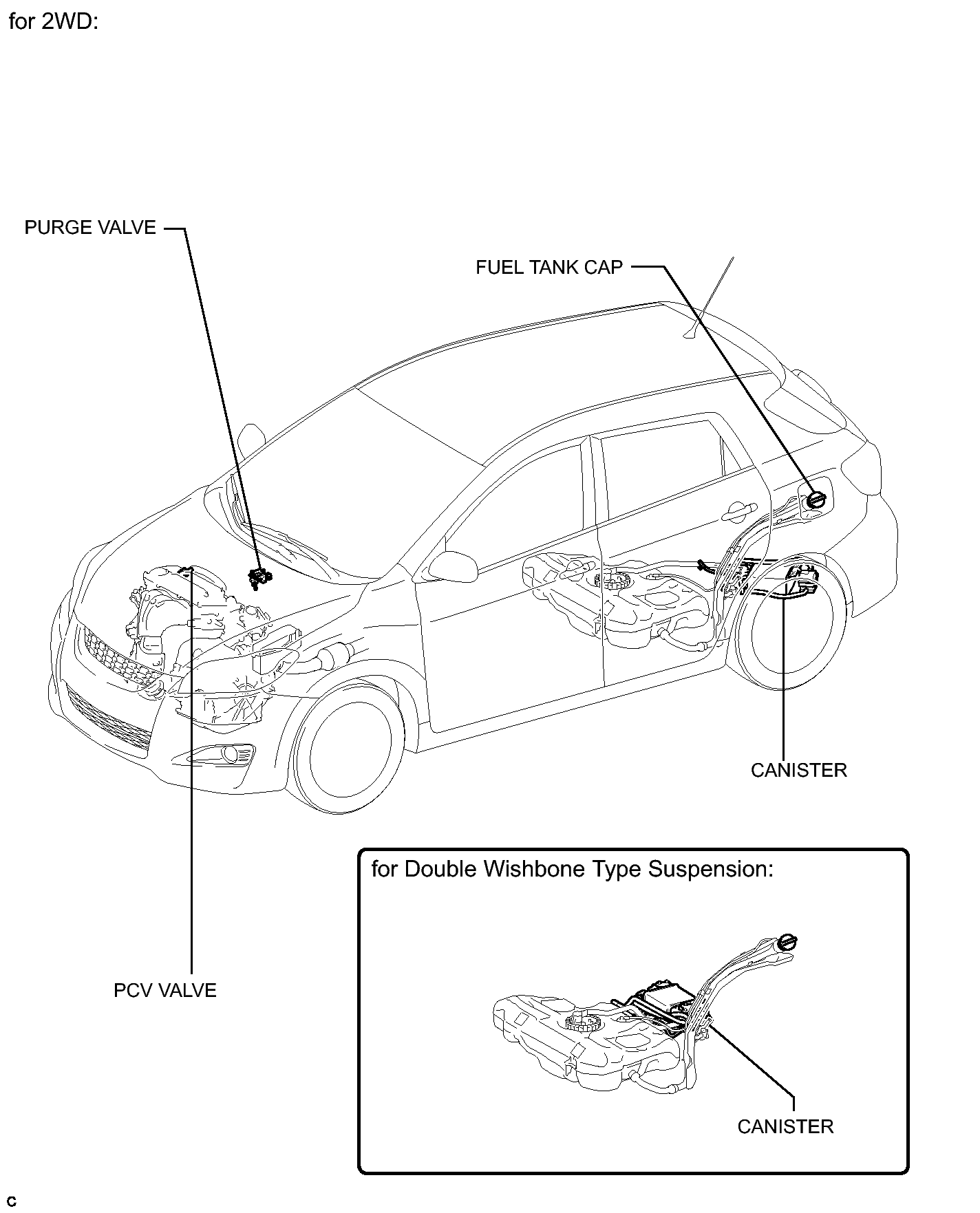

Fig 1: Identifying Emission Control System Components Location (For 2WD) (1 Of 2)
GTY218059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

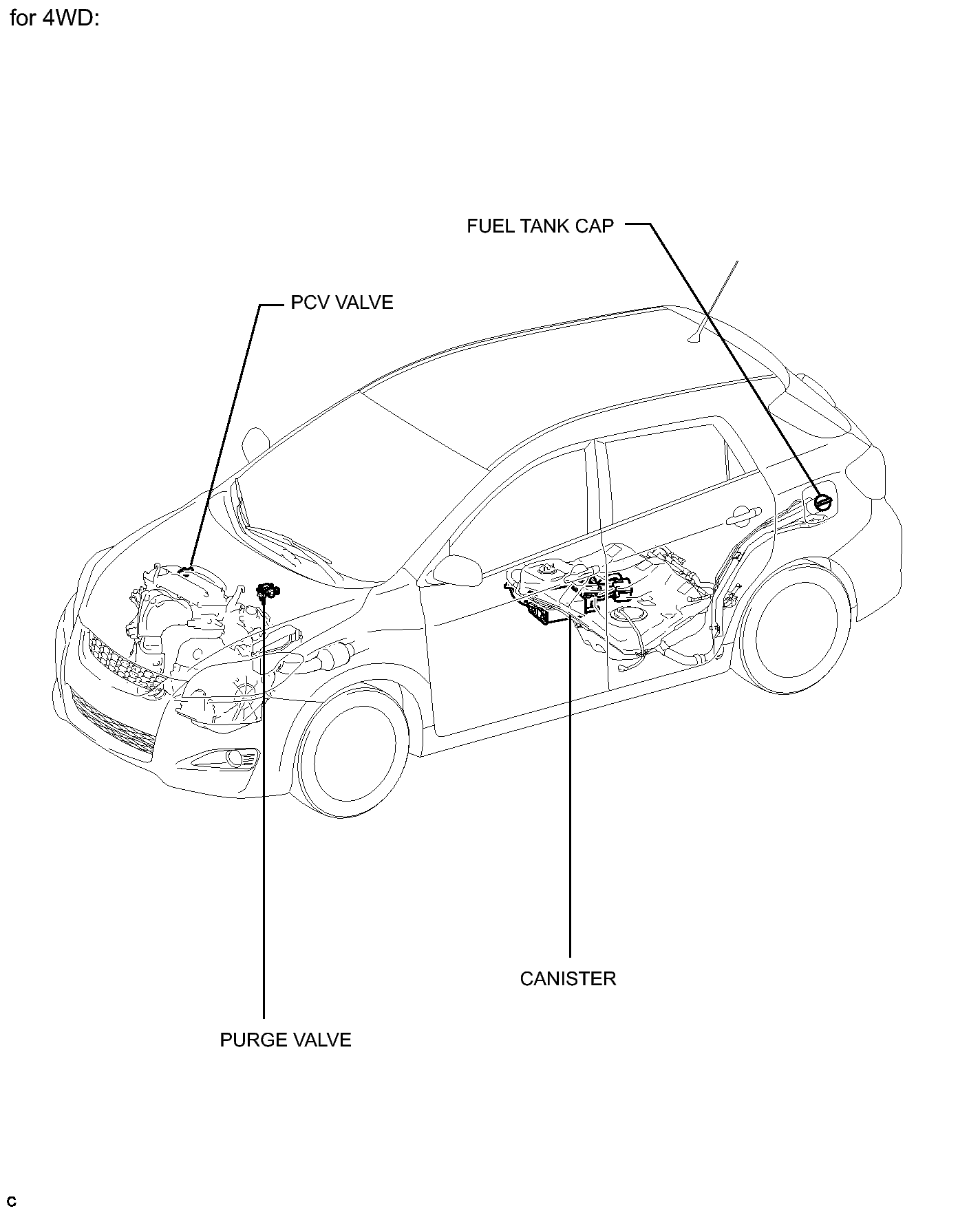

Fig 1: Identifying Emission Control System Components Location (For 4WD) (2 Of 2)
GTY231519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
