Security Indicator Light Assembly: Removal: Removal

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 8
  2. REMOVE TELLTALE LIGHT ASSEMBLY
    1. Disengage the 4 claws and remove the telltale light assembly.

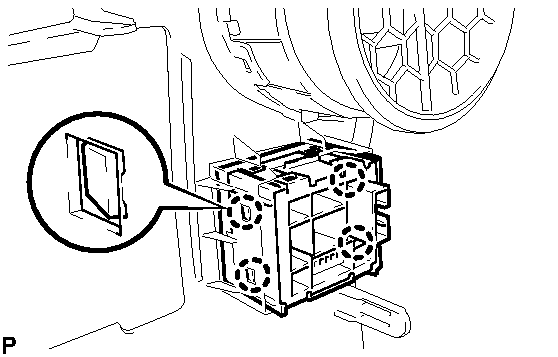

      Fig 1: View Of Telltale Light Assembly And Claws
      GTY215192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
