Parts Location: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

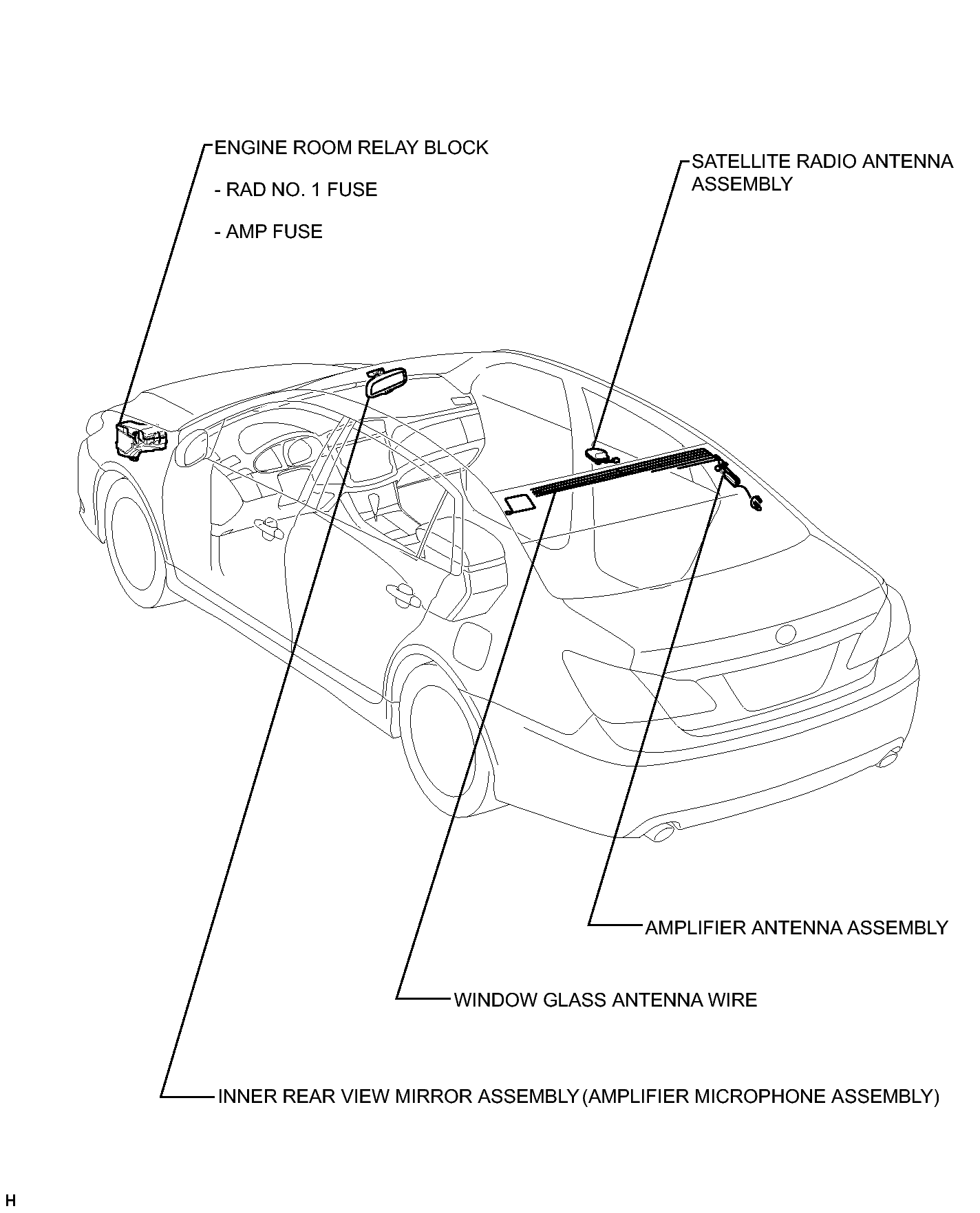

Fig 1: Identifying Audio And Visual System Components Location (1 Of 3)
GTY296181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

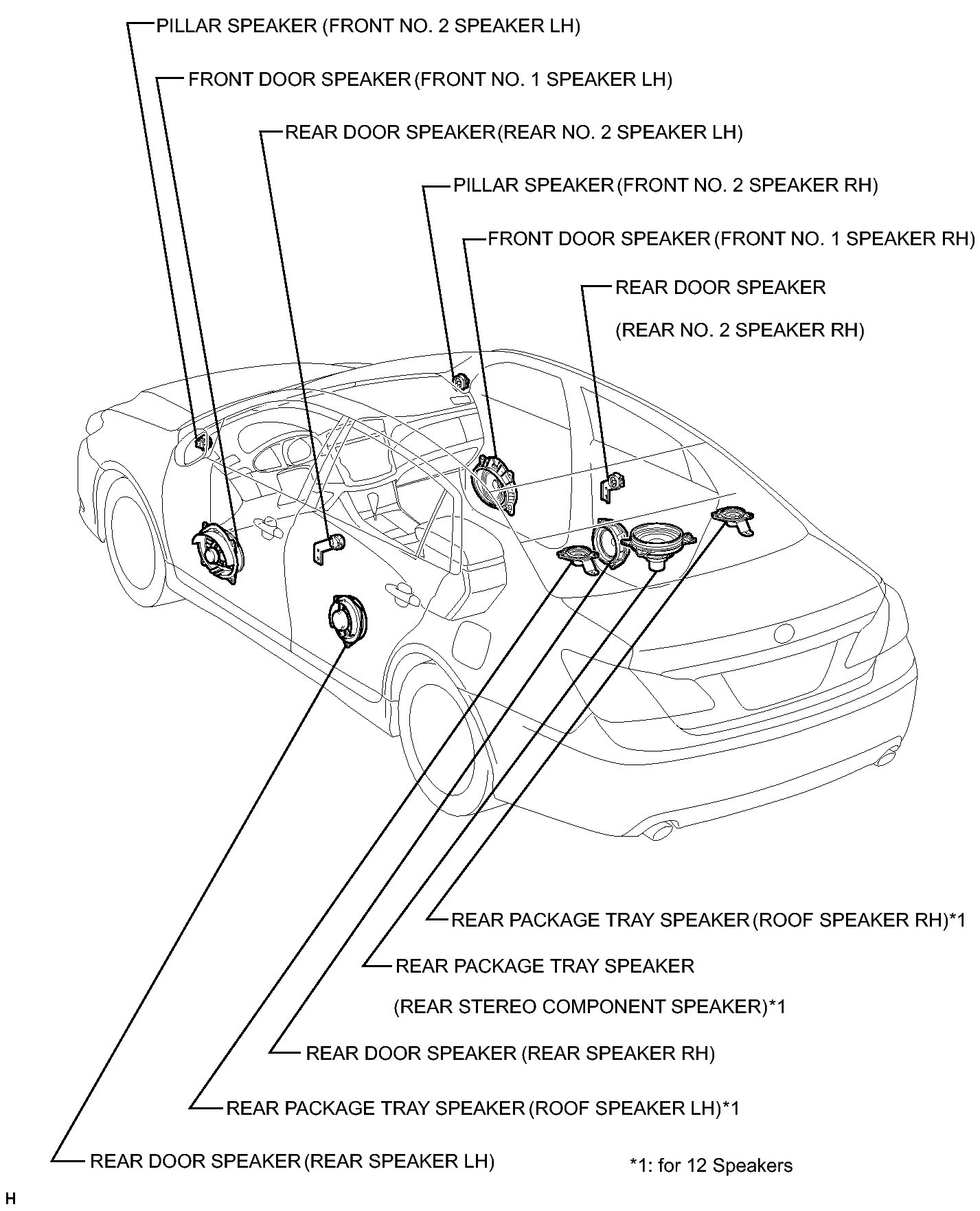

Fig 1: Identifying Audio And Visual System Components Location (2 Of 3)
GTY304668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

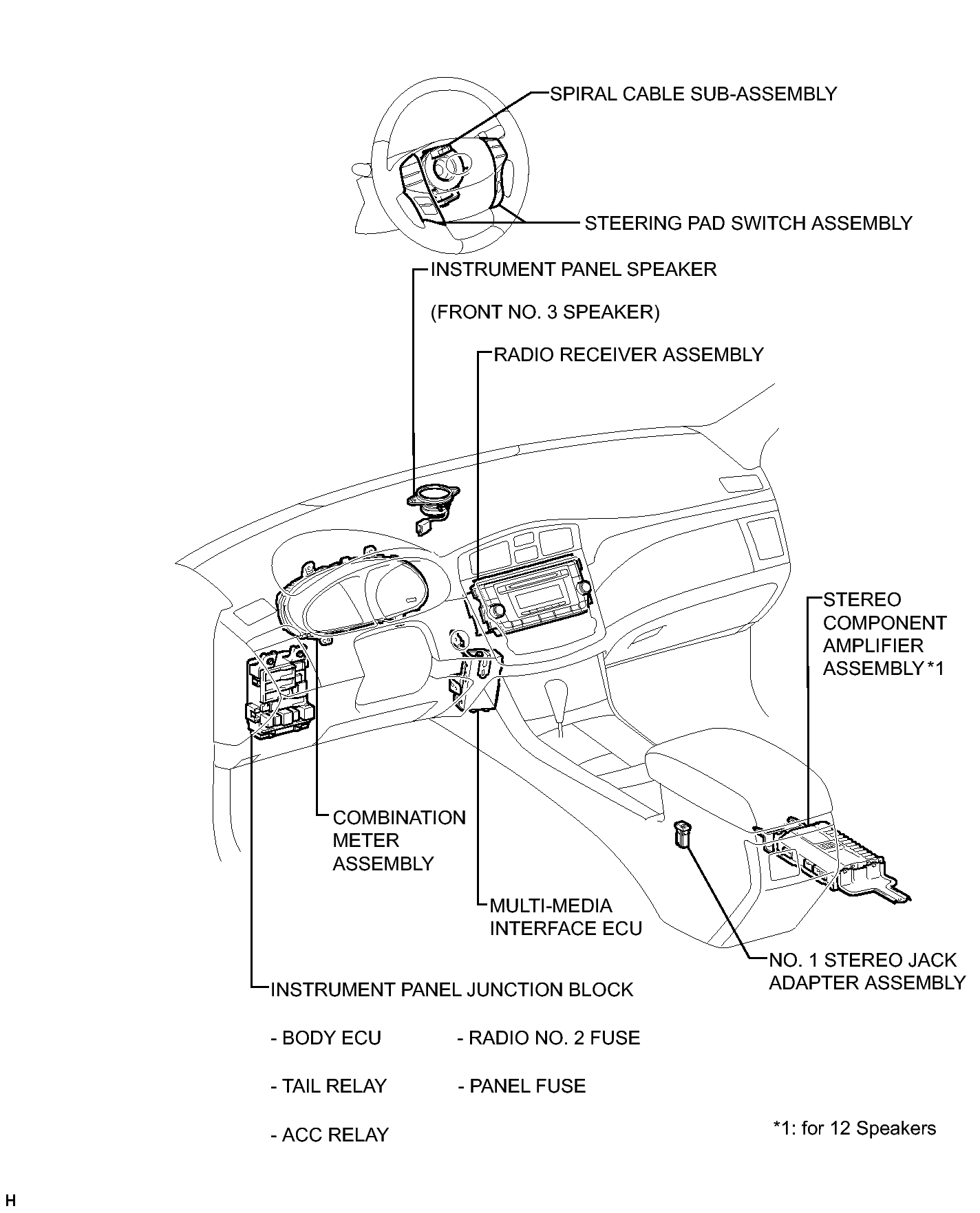

Fig 1: Identifying Audio And Visual System Components Location (3 Of 3)
GTY303236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
