Parts Location: Illustration

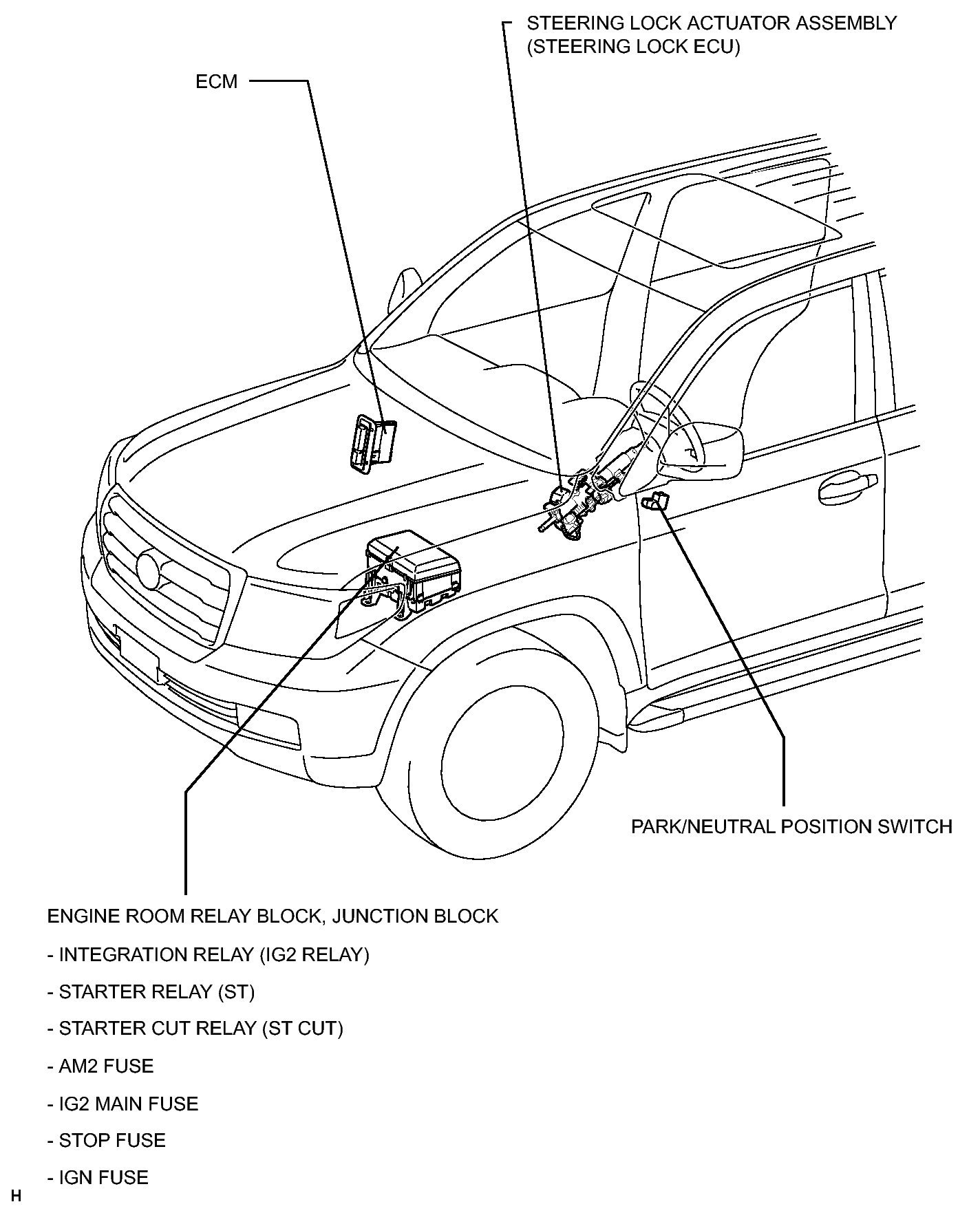

Fig 1: Identifying Smart Key System Components (Start Function) (1 Of 2)
GTY228618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

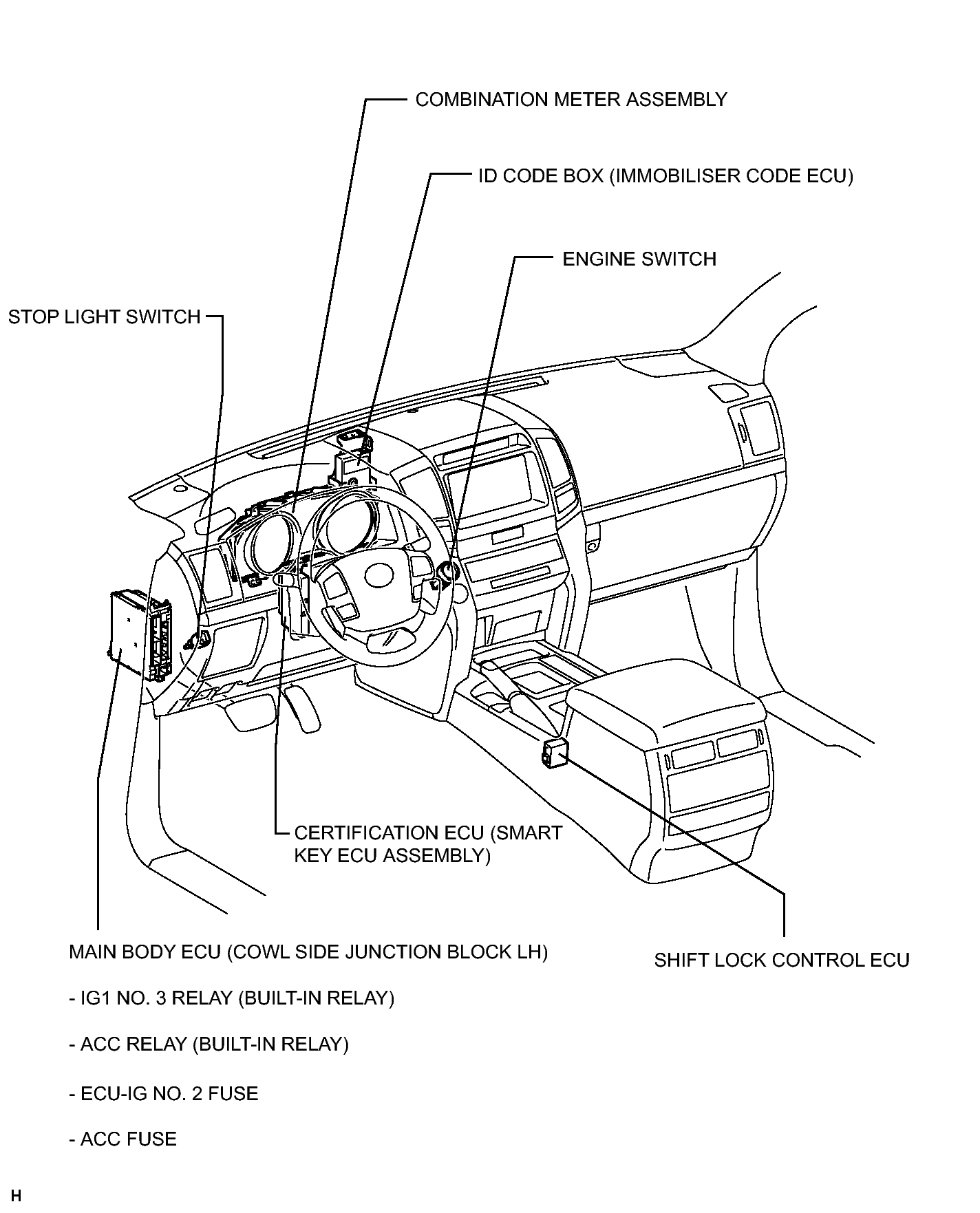

Fig 1: Identifying Smart Key System Components (Start Function) (2 Of 2)
GTY235156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
