Power Source Mode does not Change: Wiring Diagram

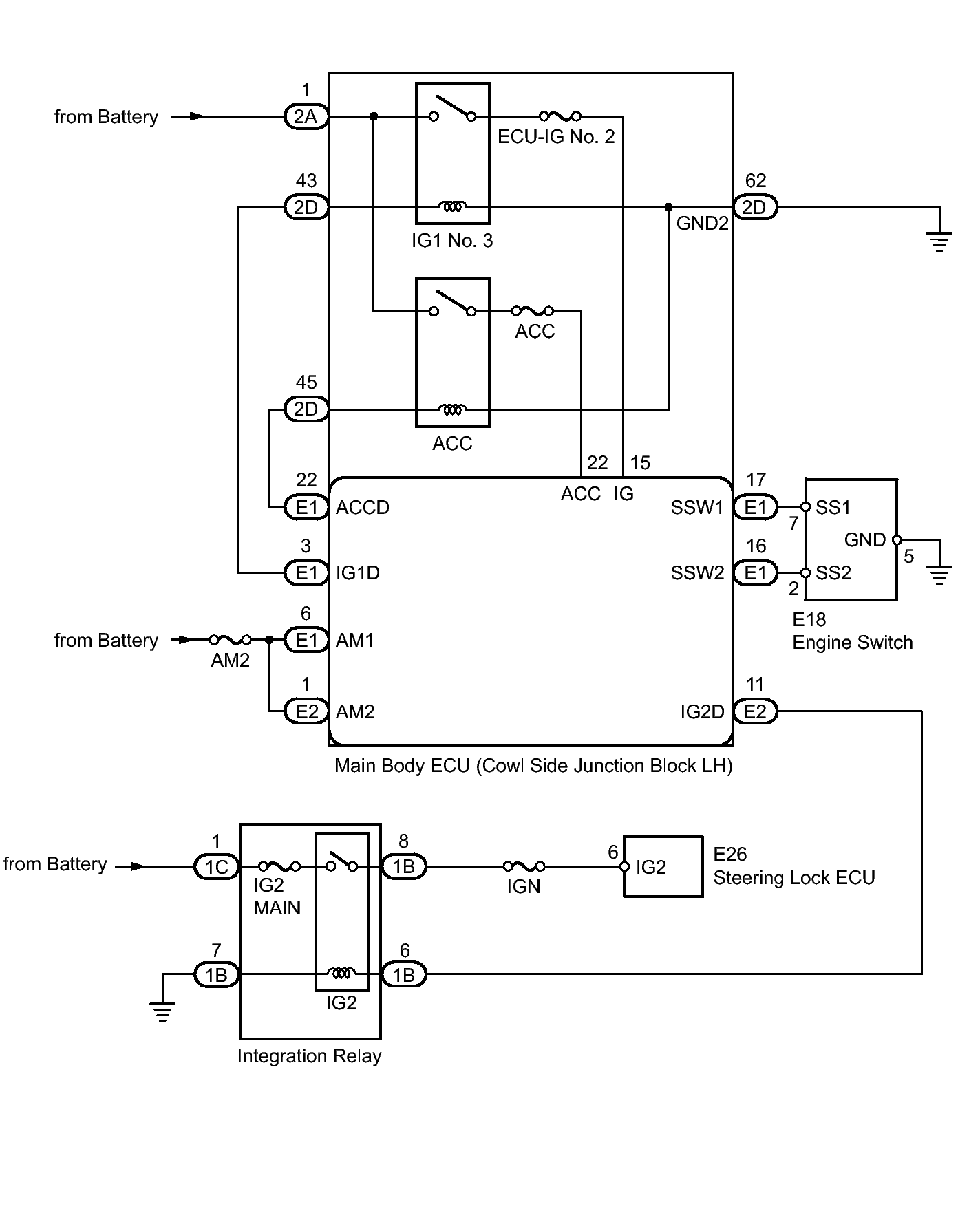

Fig 1: Power Source Mode Does Not Change - Wiring Diagram

GTY233448

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
