Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

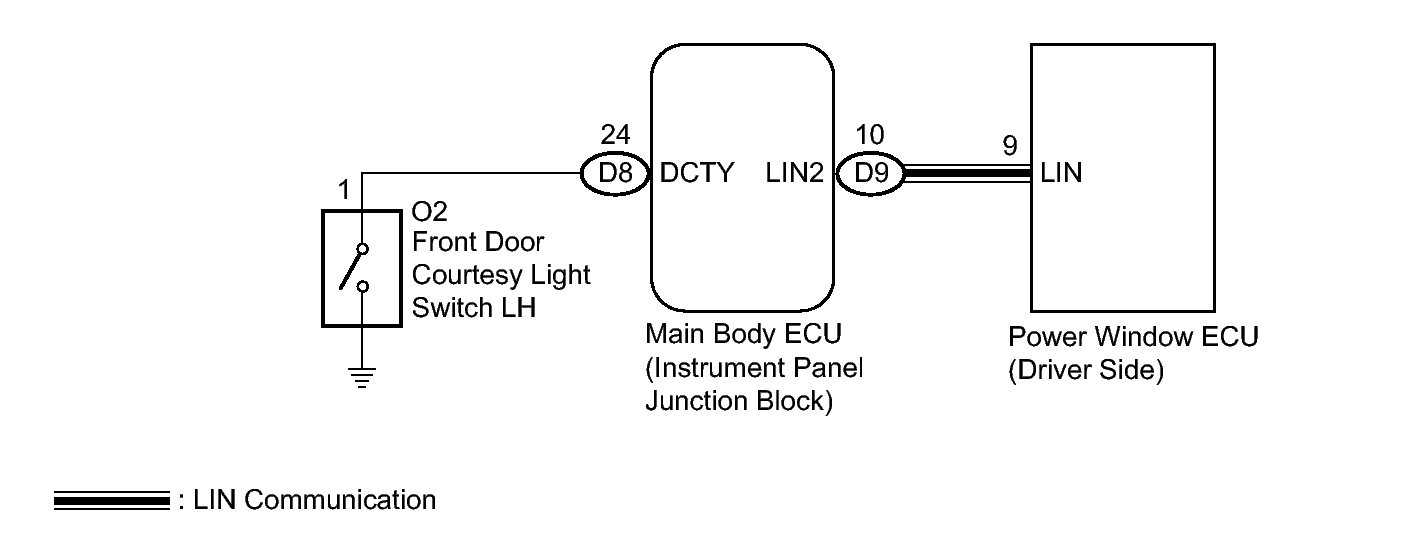

Fig 1: Identifying Front Door Courtesy Light Switch Wiring Diagram
GTY199036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
