Driver Side Door Entry Unlock Function does not Operate: Procedure

1. When the door control switch on the master switch assembly is operated, check that the locked doors unlock. Refer to OPERATION CHECK .

   OK

   Locked doors unlock.

NG → See step   10

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY (MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK))



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D-Door Lock Pos SW	Driver door lock position switch signal/LOCK or UNLOCK	ON: Driver side door is unlocked OFF: Driver side door is locked	-

   OK

   On the Techstream screen, the display changes between ON and OFF as shown in the chart above.

   Result

   Result	Proceed to
   OK	A
   NG	B (Proceed to "Driver Door LOCK/UNLOCK Functions do not Operate")

B → See step   12

A: Go to next step

1. Enter the following menus: Body Electrical / Smart Key / Data List.
2. Read the Data List according to the display on the Techstream.
   SMART KEY (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)):



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D Touch Sensor	Status of touch sensor front LH / ON or OFF	ON: Touch sensor is touched OFF: Touch sensor is not touched	-

   OK

   On the Techstream screen, the display changes between ON and OFF as shown in the chart above.

NG → See step   4

OK → See step   11

1. Disconnect the certification ECU (smart key ECU assembly) and door electrical key oscillator connectors.

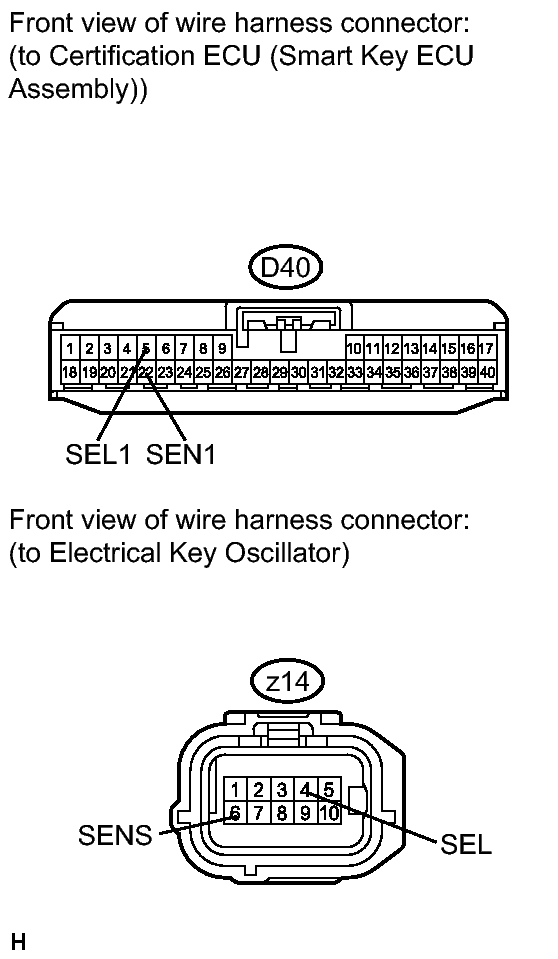

   Fig 1: Identifying Certification ECU And Door Electrical Key Oscillator Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   D40-5 (SEL1) - z14-4 (SEL)	Always	Below 1 Ω
   D40-22 (SEN1) - z14-6 (SENS)	Always	Below 1 Ω
   D40-5 (SEL1) - Body ground	Always	10 kΩ or higher
   D40-22 (SEN1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the front door outside handle. Refer to REMOVAL .
2. Disconnect the touch sensor connector.

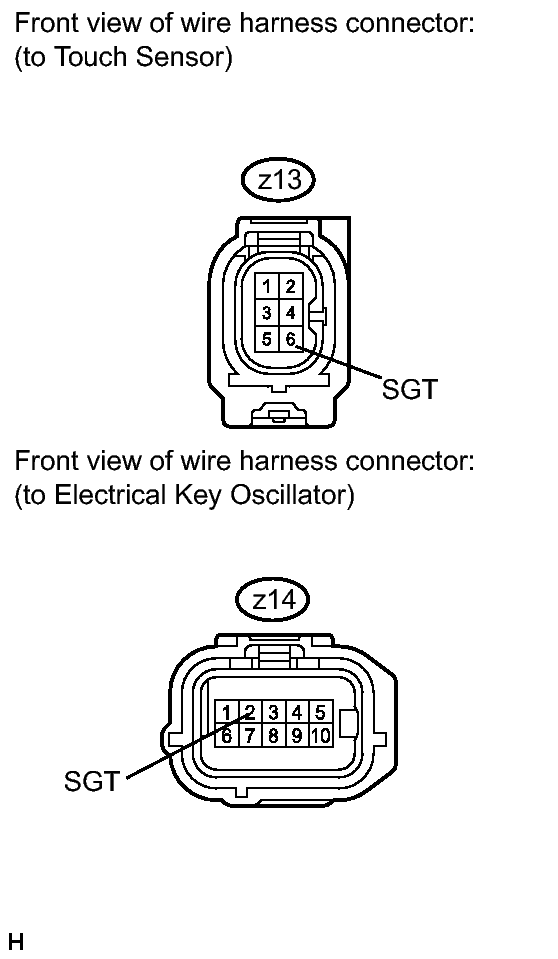

   Fig 2: Identifying Touch Sensor And Door Electrical Key Oscillator Connectors Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   z13-6 (SGT) - z14-2 (SGT)	Always	Below 1 Ω
   z13-6 (SGT) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator. Refer to REMOVAL .

NEXT: Go to next step

1. Check that the entry functions operate normally.

   OK

   Entry functions operate normally.

NG → See step   8

OK → END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the front door outside handle RH. Refer to REMOVAL .

NEXT: Go to next step

1. Check that the entry functions operate normally.

   OK

   Entry functions operate normally.

NG → See step   11

OK → END (FRONT DOOR OUTSIDE HANDLE IS DEFECTIVE)
