System Diagram

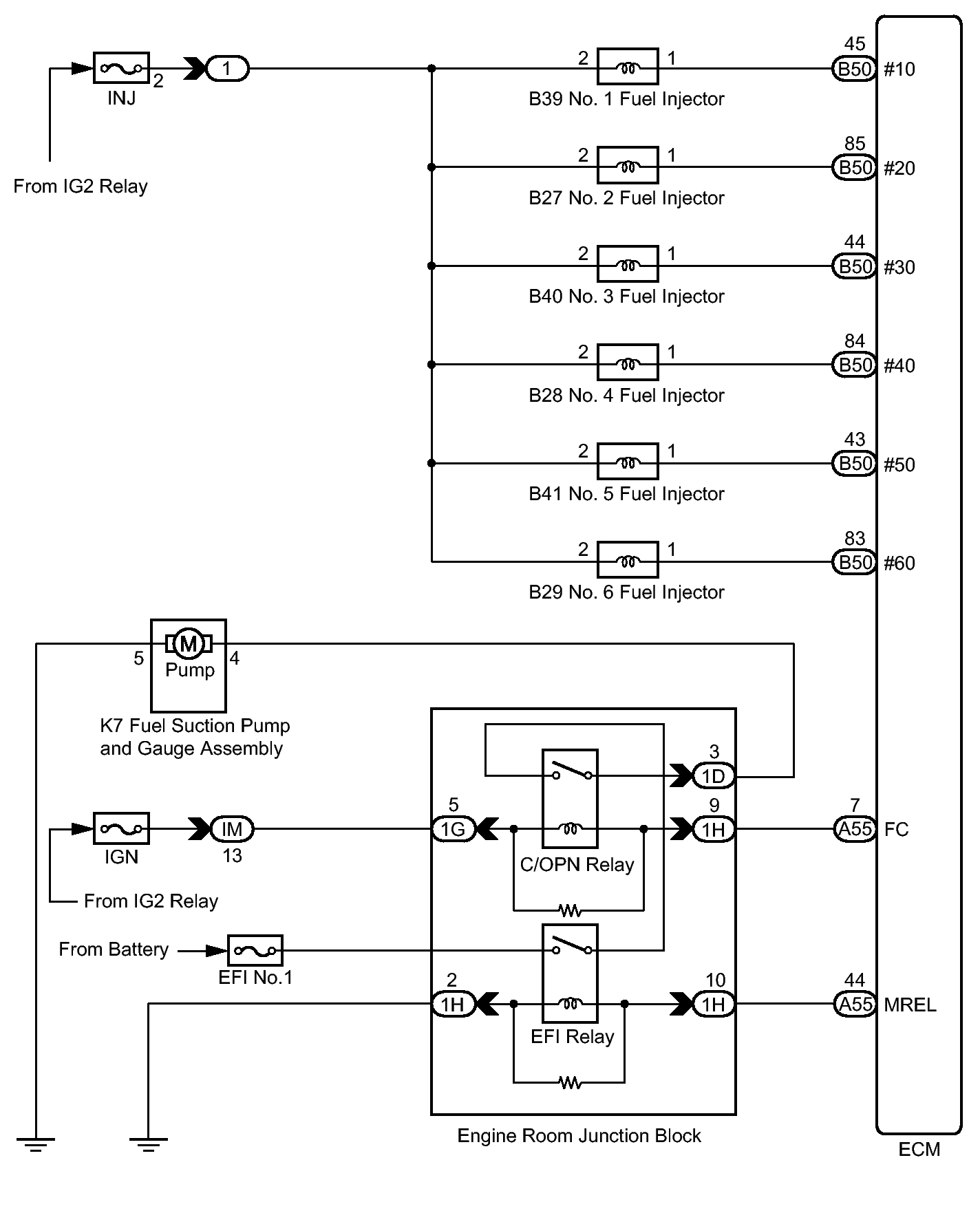

Fig 1: Fuel System Diagram

GTY171935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
