Parts Location: Illustration

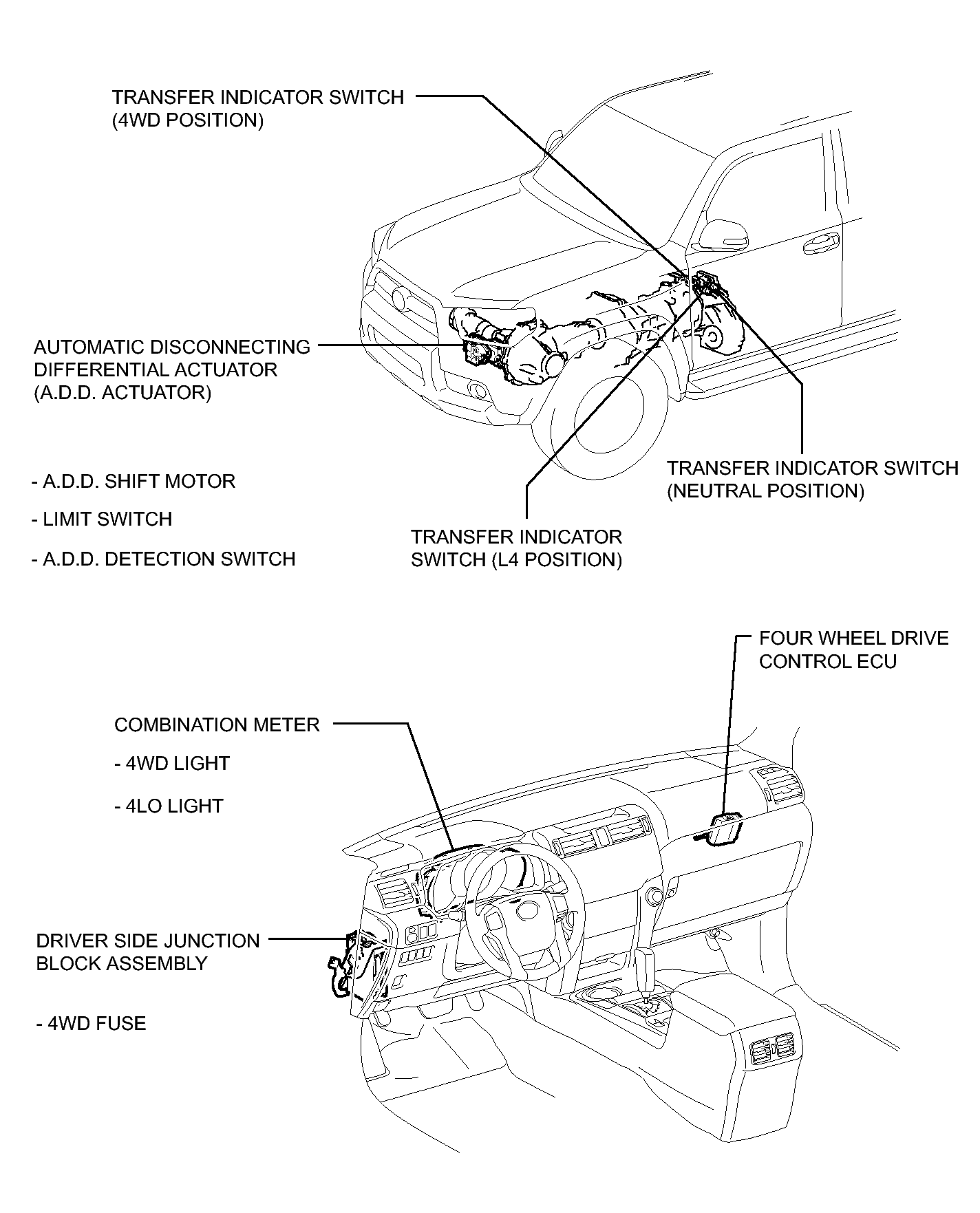

Fig 1: Identifying Transfer Case System Components Location

GTY223111

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
