Parts Location: Illustration

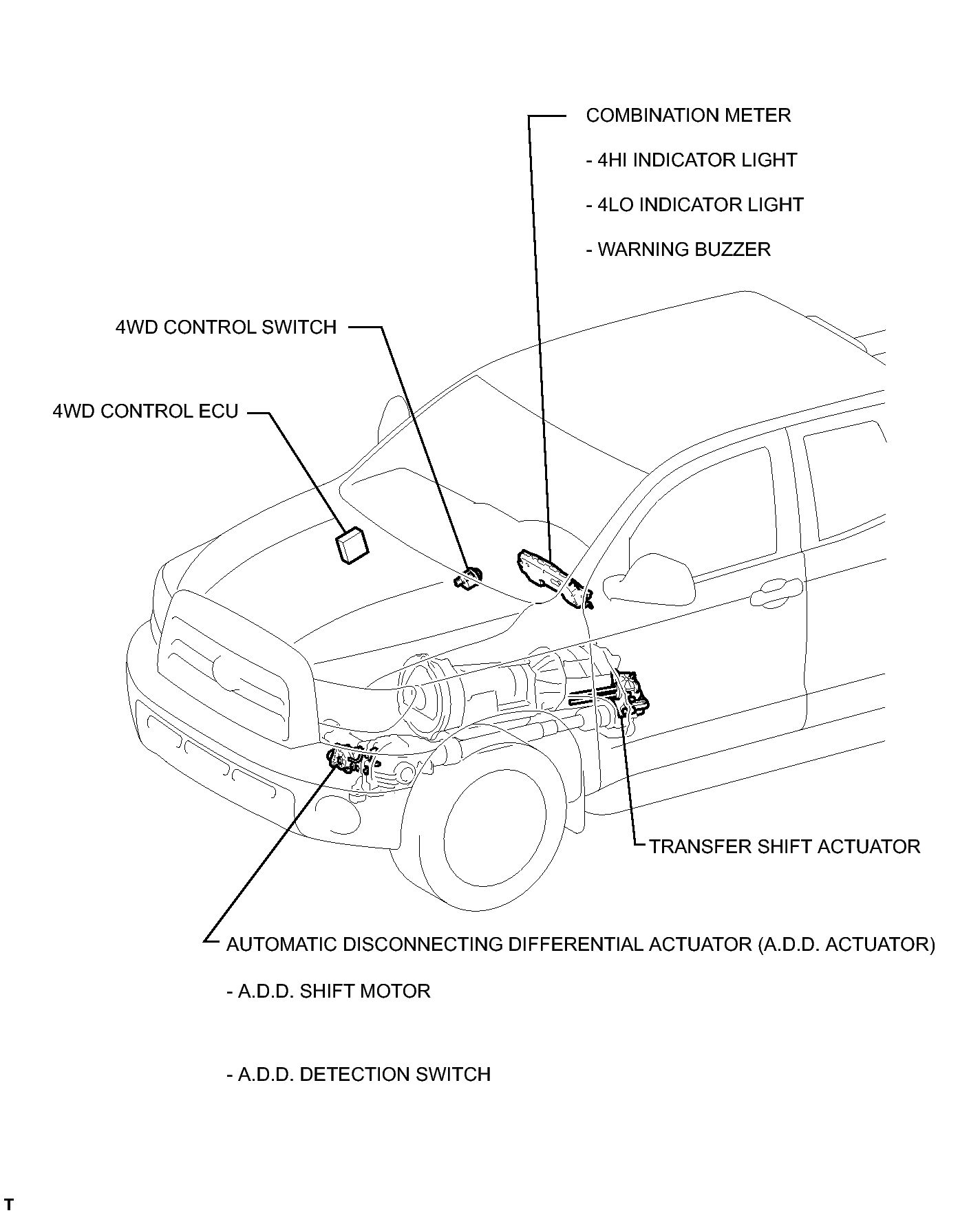

Fig 1: Touch Select 2-4 & High/Low System Replacement Components (1 Of 2)
GTY189368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

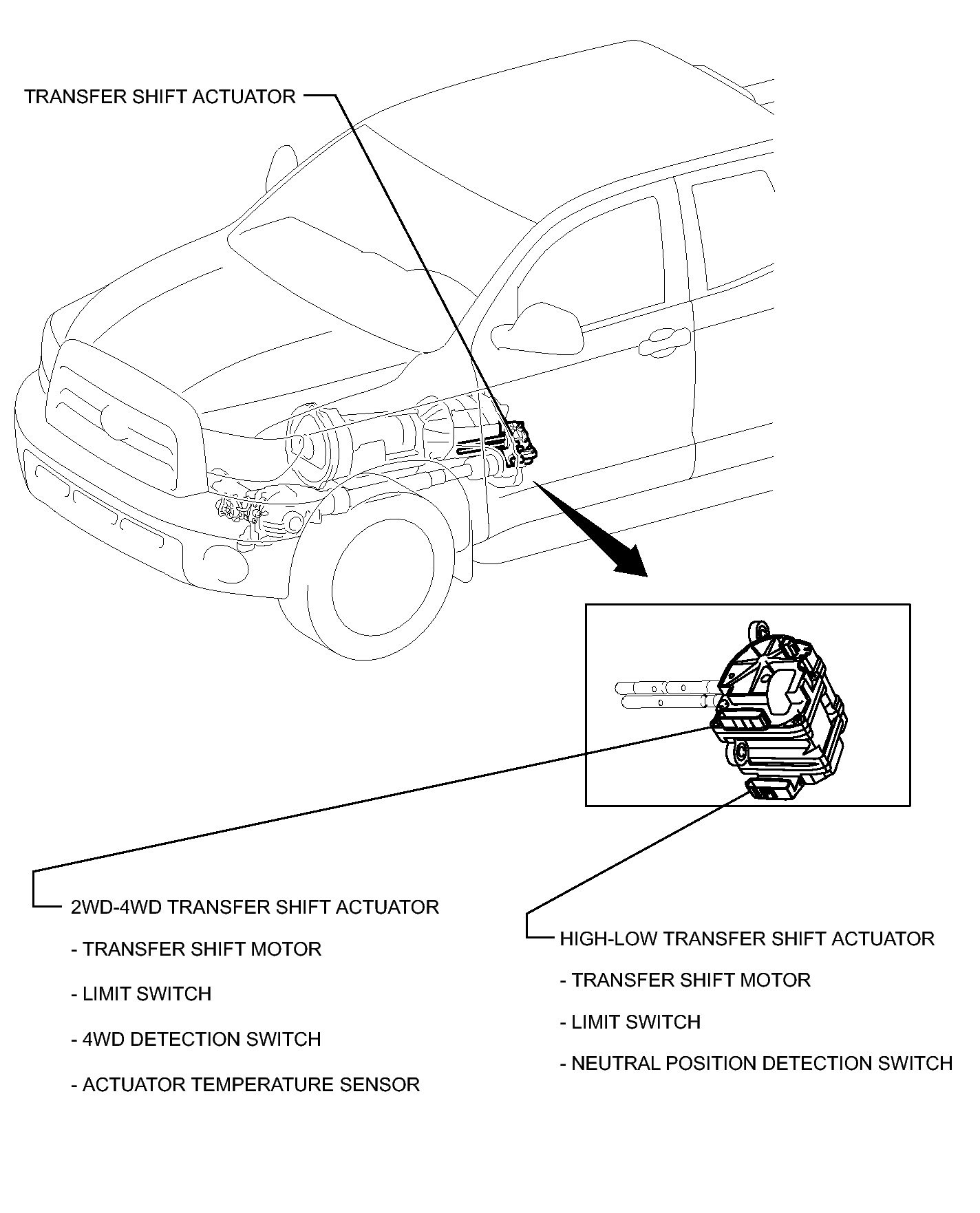

Fig 1: Touch Select 2-4 & High/Low System Replacement Components (2 Of 2)
GTY184008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
