Air Fuel Ratio Sensor: Components: Illustration

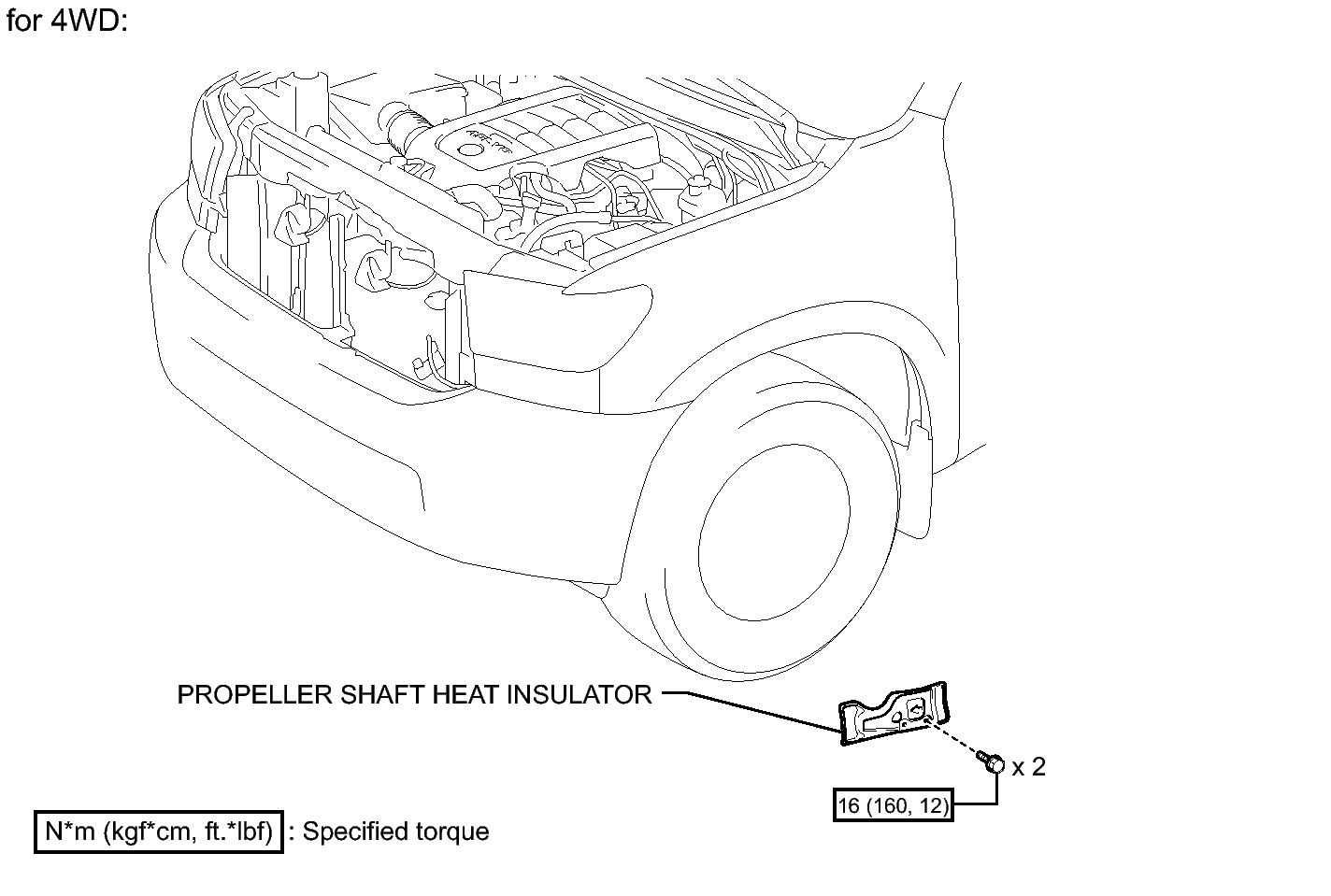

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 3)
GTY175107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

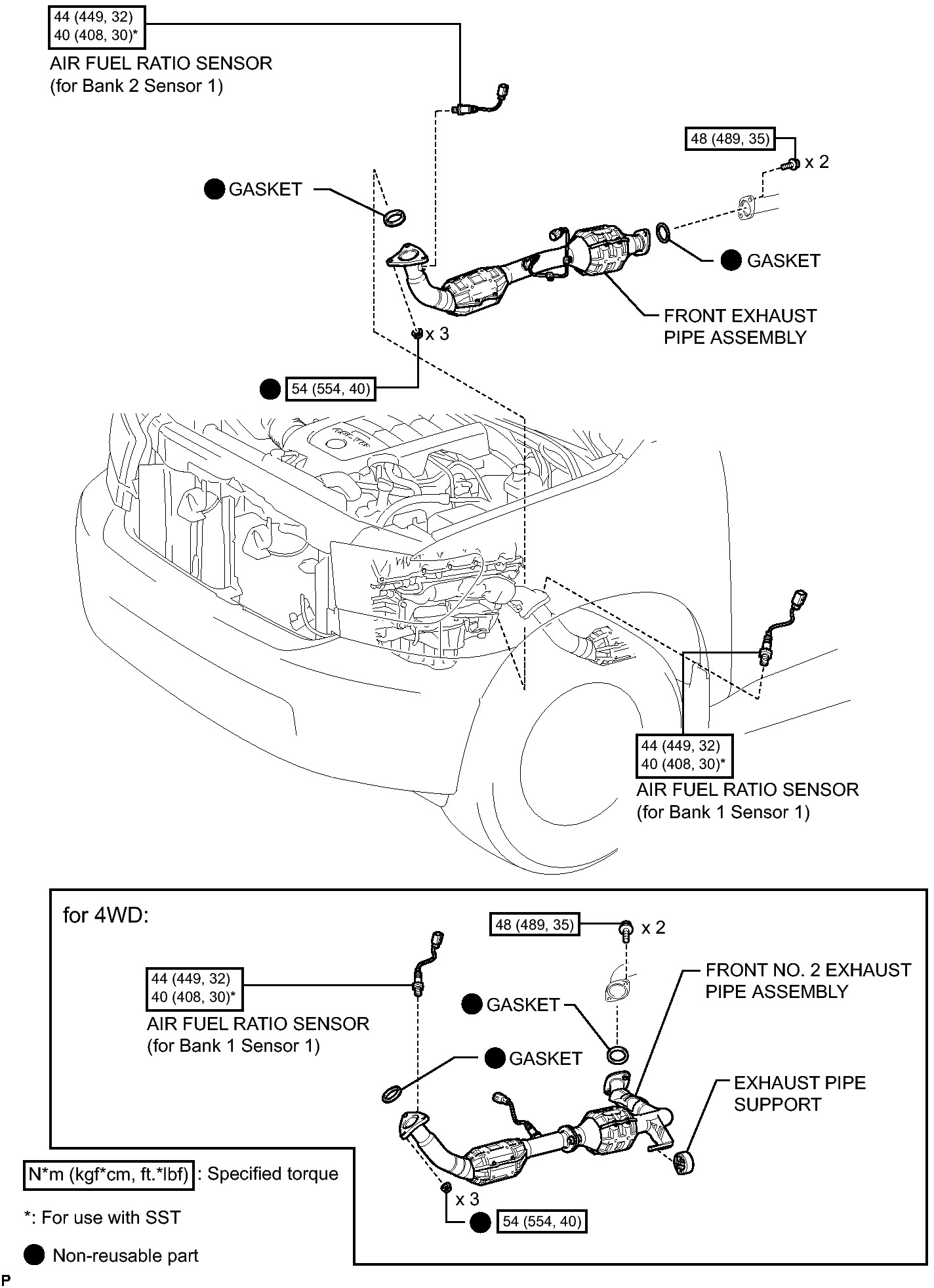

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 3)
GTY171924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


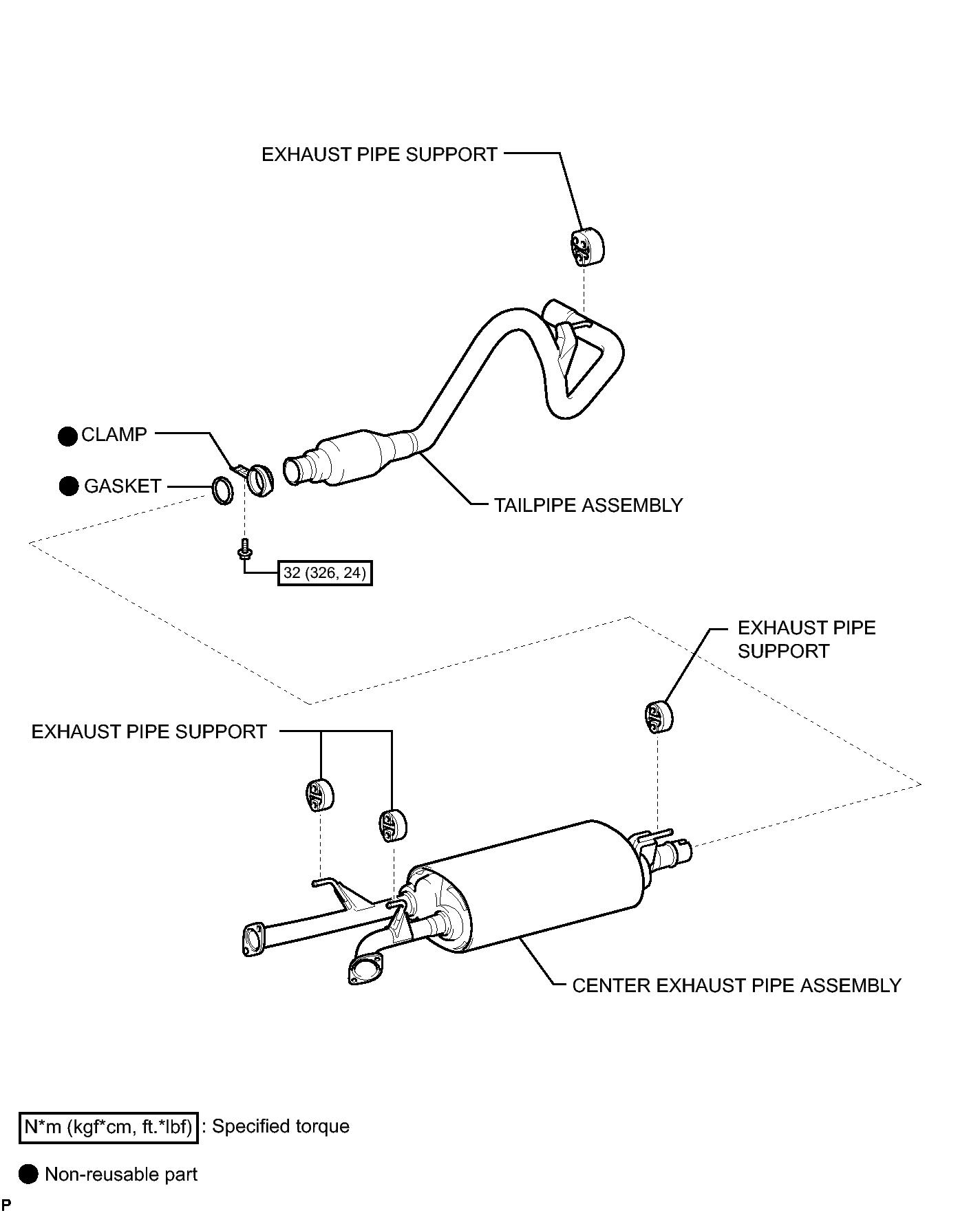

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (3 Of 3)
GTY174085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
