Throttle Body: Removal: Removal

  1. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 2
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  3. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 13
  4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  . Refer to REMOVAL - Step 19
  5. REMOVE THROTTLE BODY
    1. Disconnect the 2 water by-pass hoses from the throttle body.

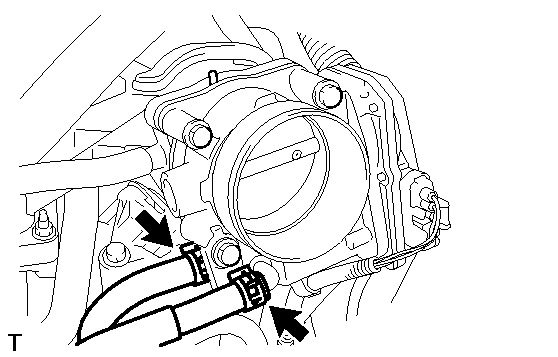

      Fig 1: Locating Water By-Pass Hoses
      GTY212599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the control motor connector.

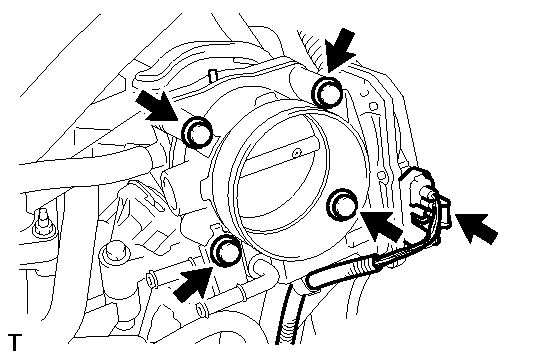

      Fig 2: Locating Throttle Body Bolts
      GTY212783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and throttle body and wire harness clamp stay.
    4. Remove the gasket from the intake air surge tank.
