Air Fuel Ratio Sensor: Removal: Removal

  1. REMOVE RADIATOR HOSE CLAMP  . Refer to REMOVAL - Step 9
  2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

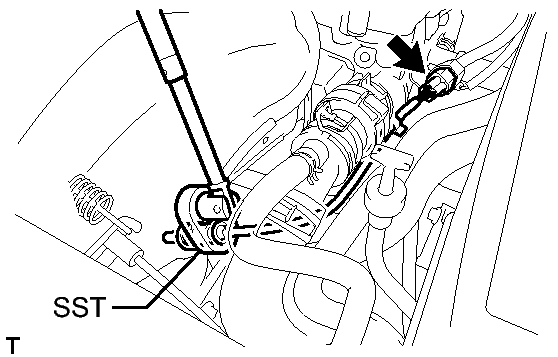

    Fig 1: Removing Sensor From Exhaust Manifold
    GTY225885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Using SST, remove the sensor from the exhaust manifold.
      • SST: 09224-00010
