System Diagram

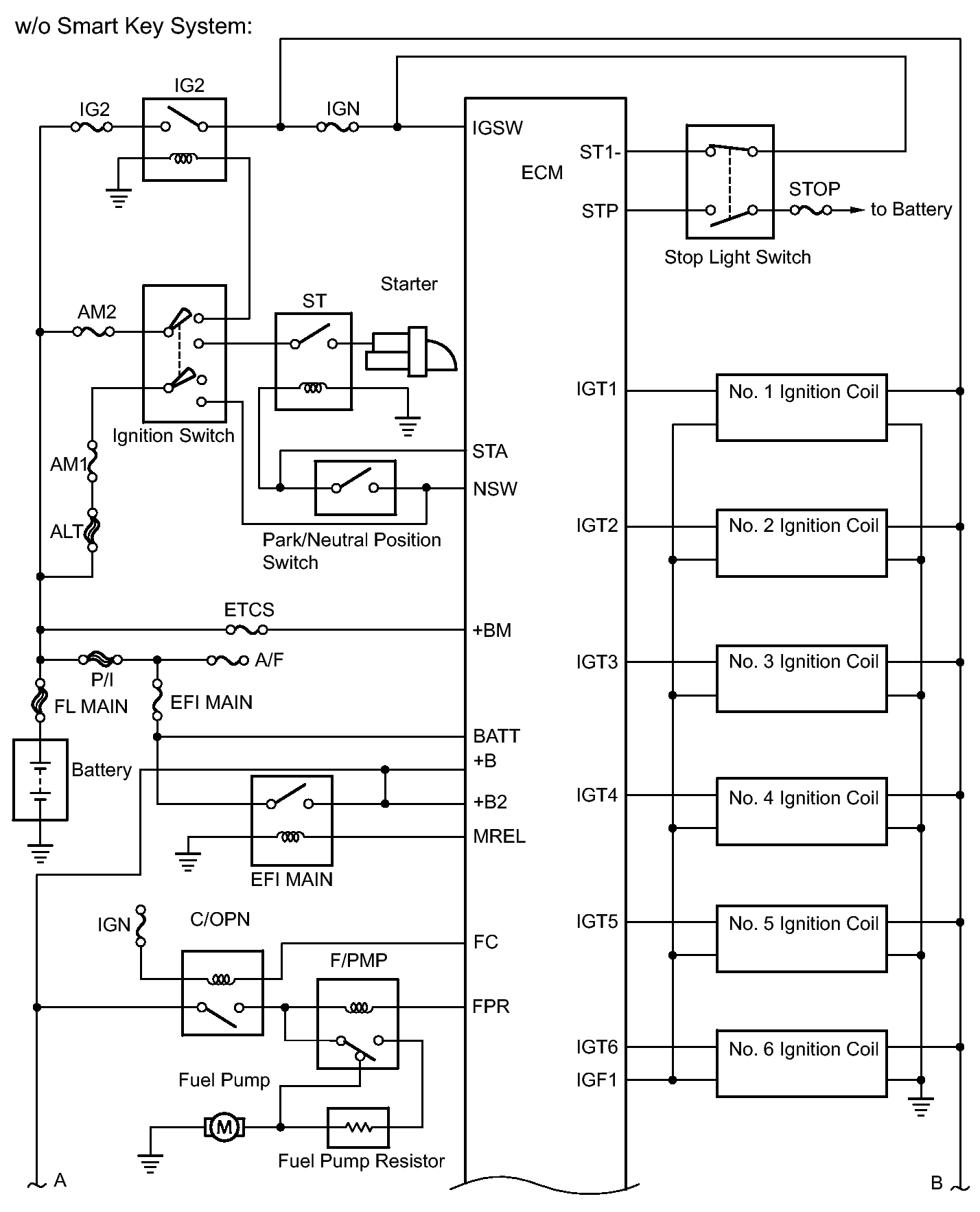

Fig 1: Identifying SFI System Diagram (1 Of 5)
GTY231220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

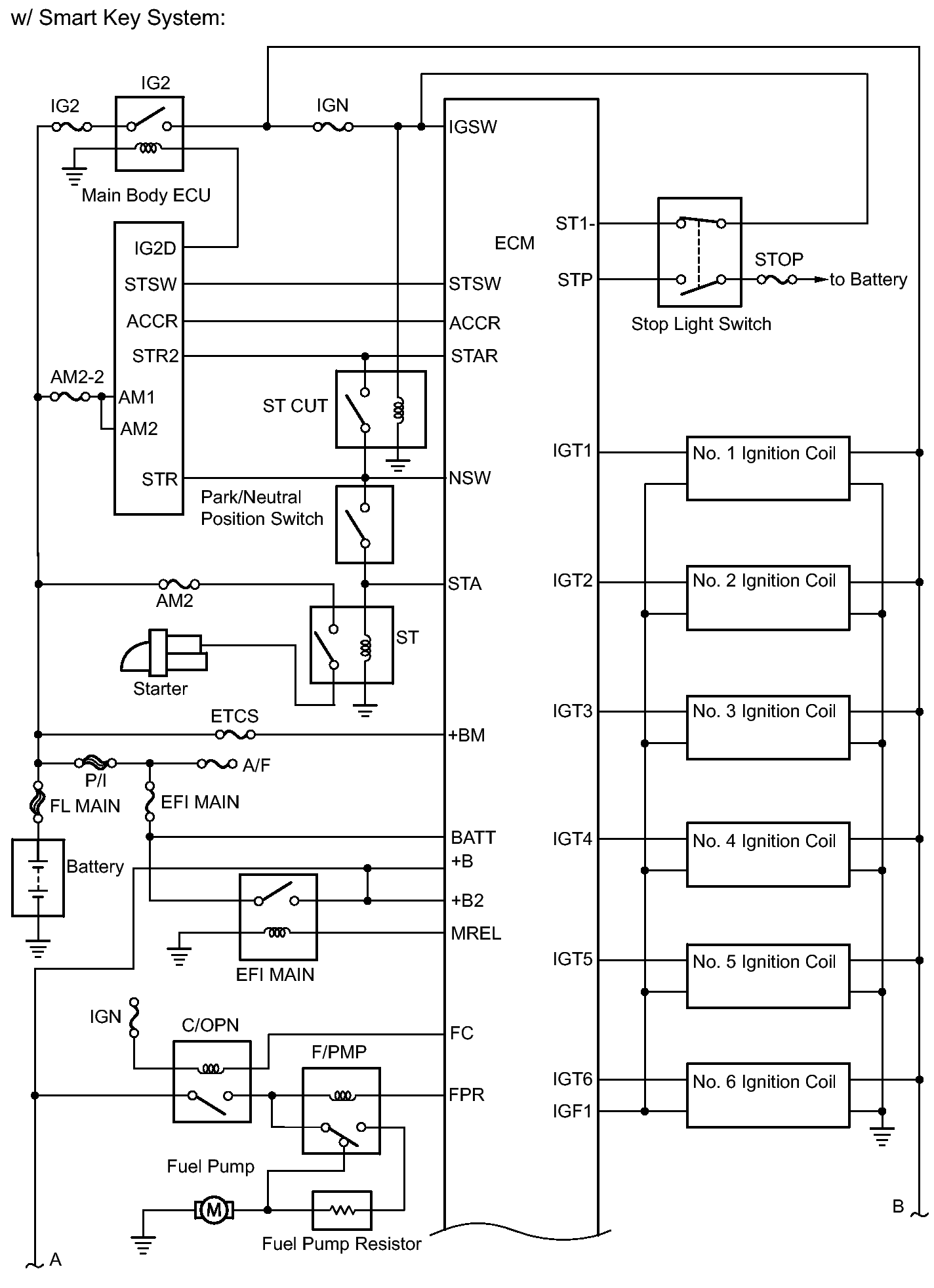

Fig 2: Identifying SFI System Diagram (2 Of 5)
GTY233419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

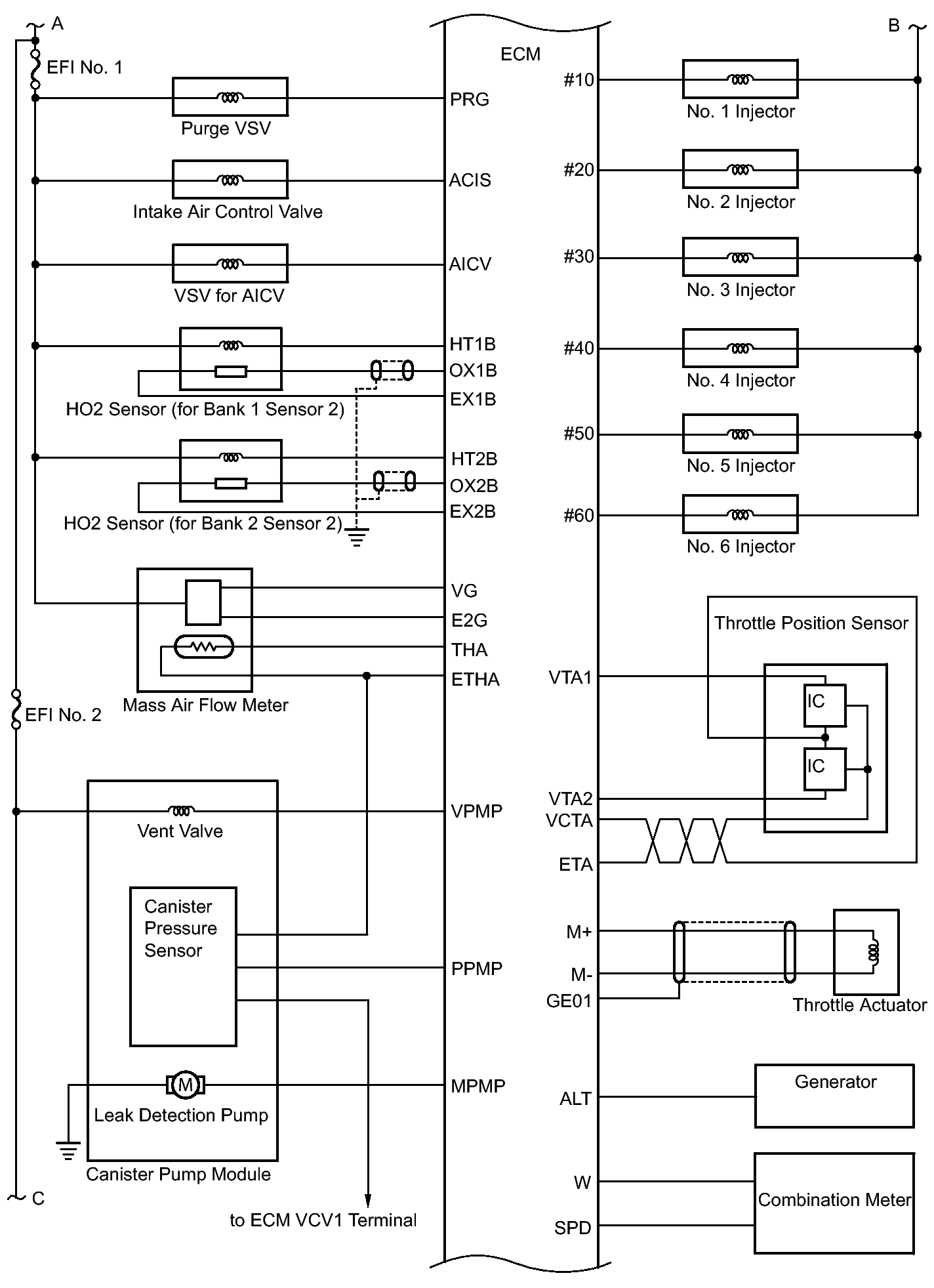

Fig 3: Identifying SFI System Diagram (3 Of 5)
GTY225129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

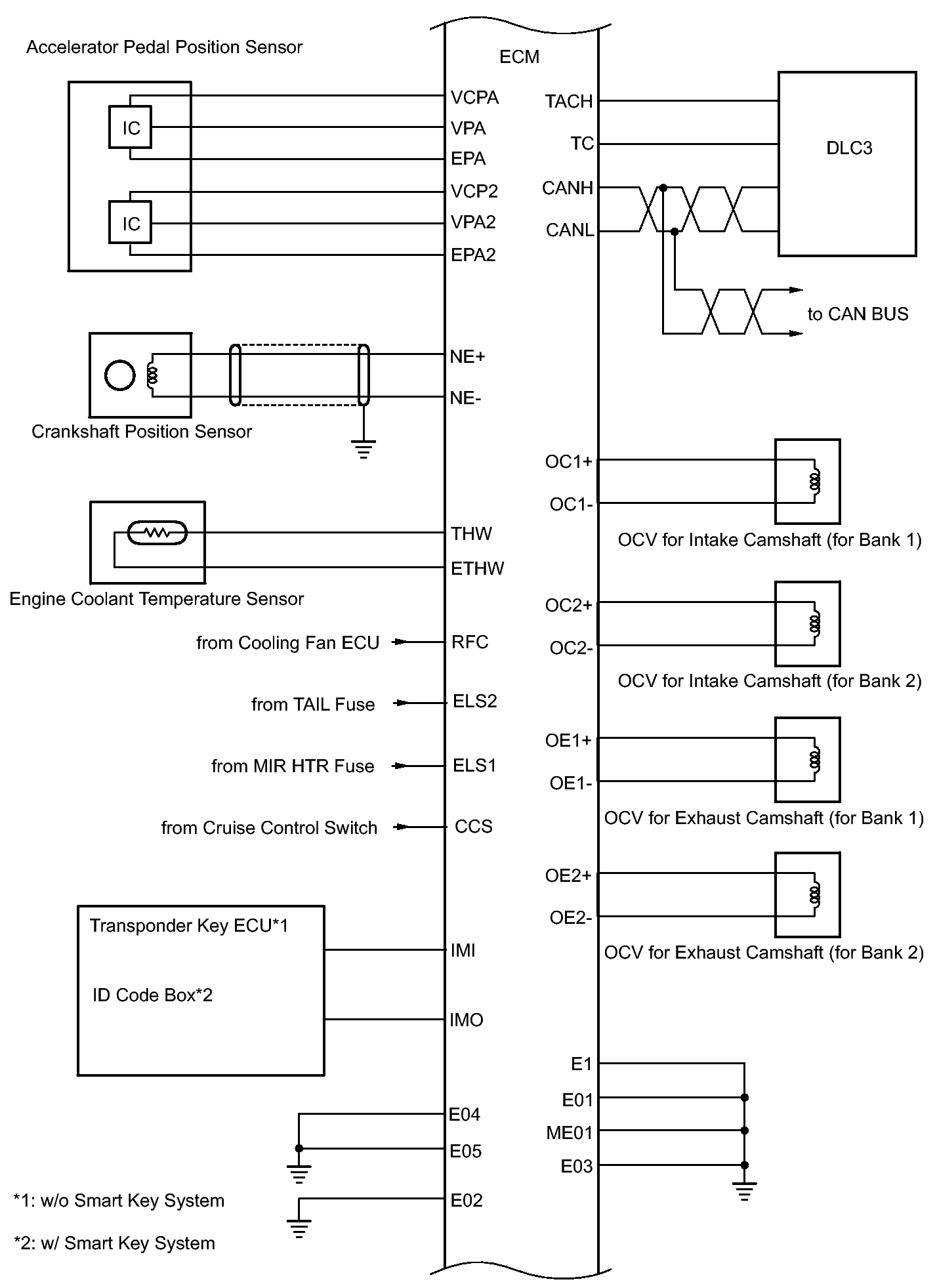

Fig 4: Identifying SFI System Diagram (4 Of 5)
GTY233882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

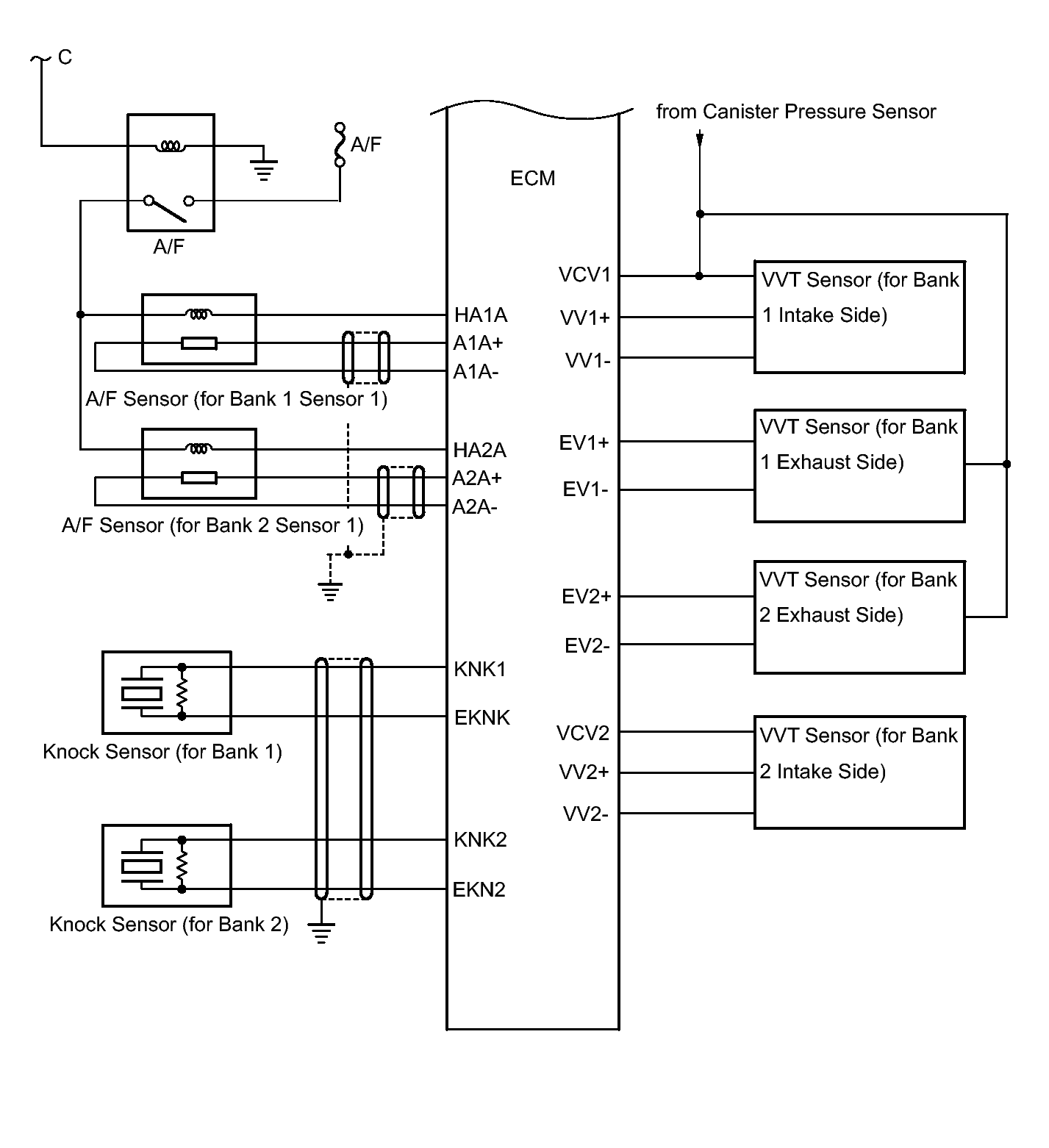

Fig 5: Identifying SFI System Diagram (5 Of 5)
GTY215646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
