In-Line Connector End View (DA2)

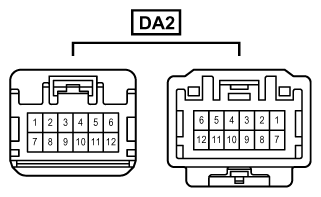

Fig 1: In-Line Connector End View (DA2)

G08406782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
