Section 21 (Engine Ignition System (Inspection) (PHV))
>>
Ignition System
>>
System Diagram
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

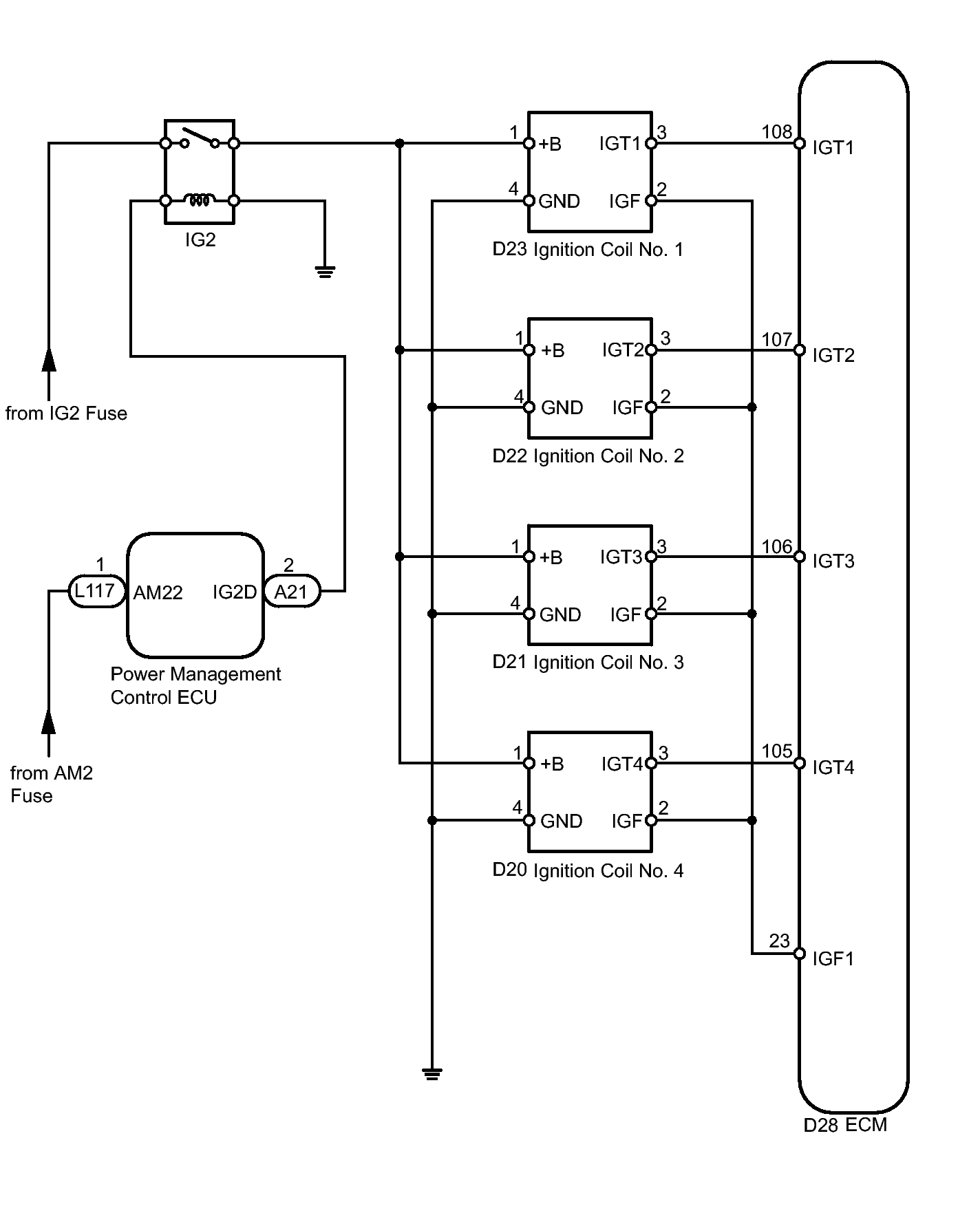

Fig 1: Identifying Ignition System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
