Power Seat: Notes

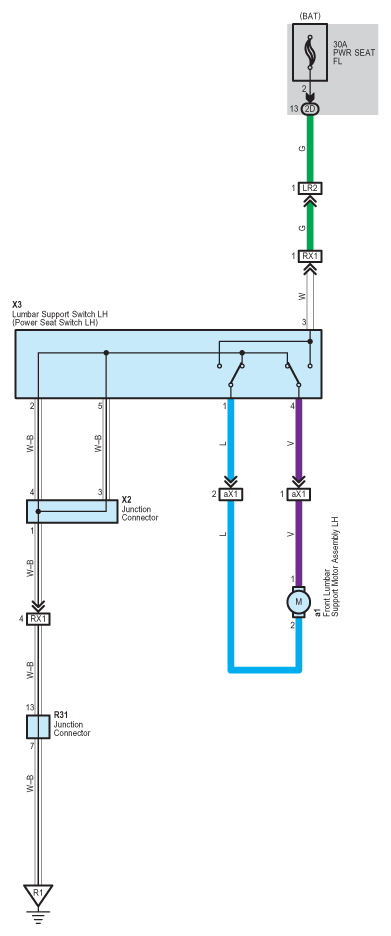

Fig 1: Power Seat - Circuit Diagram

G07570835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
