Engine Immobilizer (Diagnostics - Introduction)
>>
Engine Immobilizer System
>>
System Diagram
>>
System Diagram
System Diagram

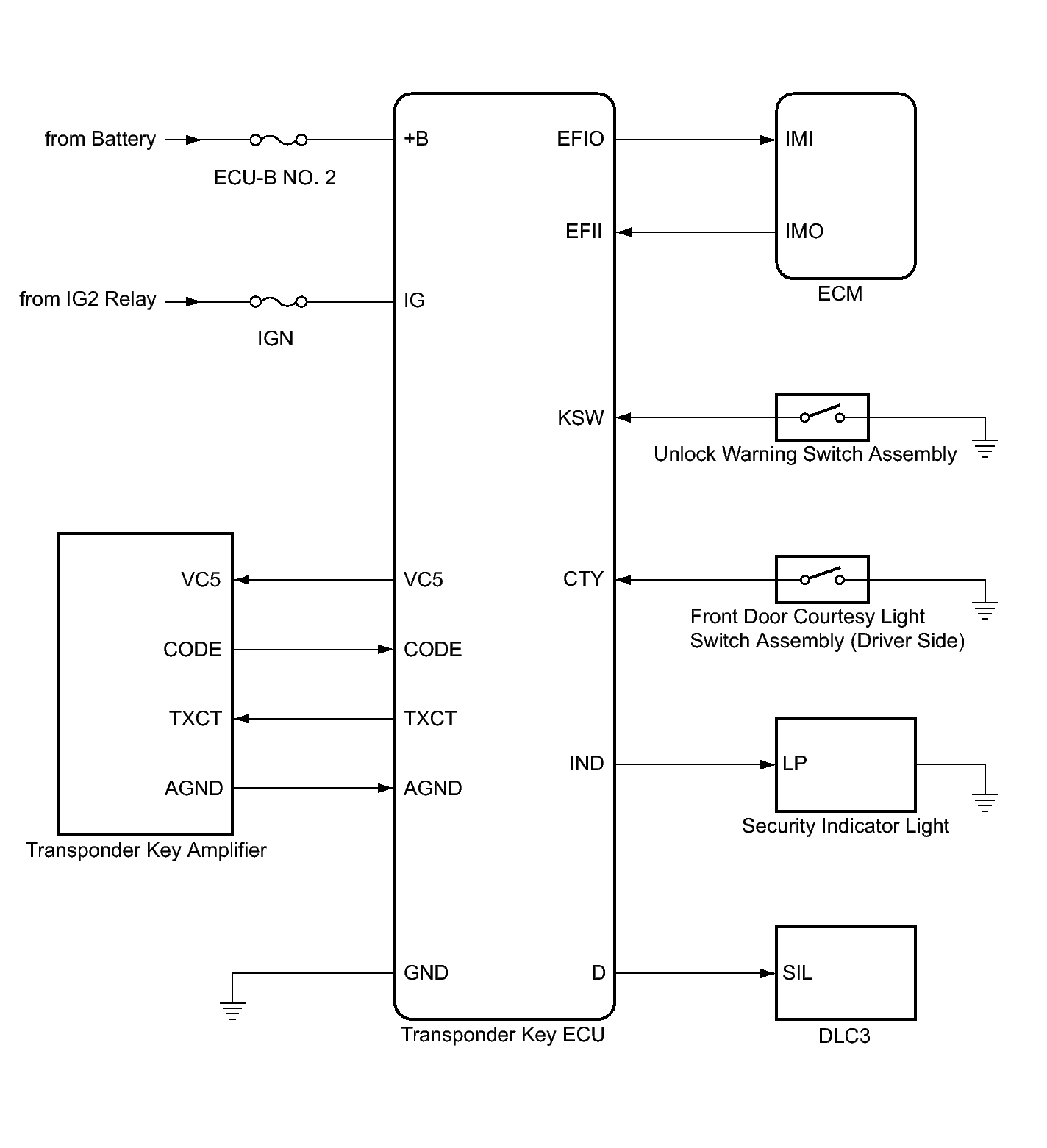

Fig 1: Engine Immobilizer System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
