System Diagram

  1. w/o Smart Key System:

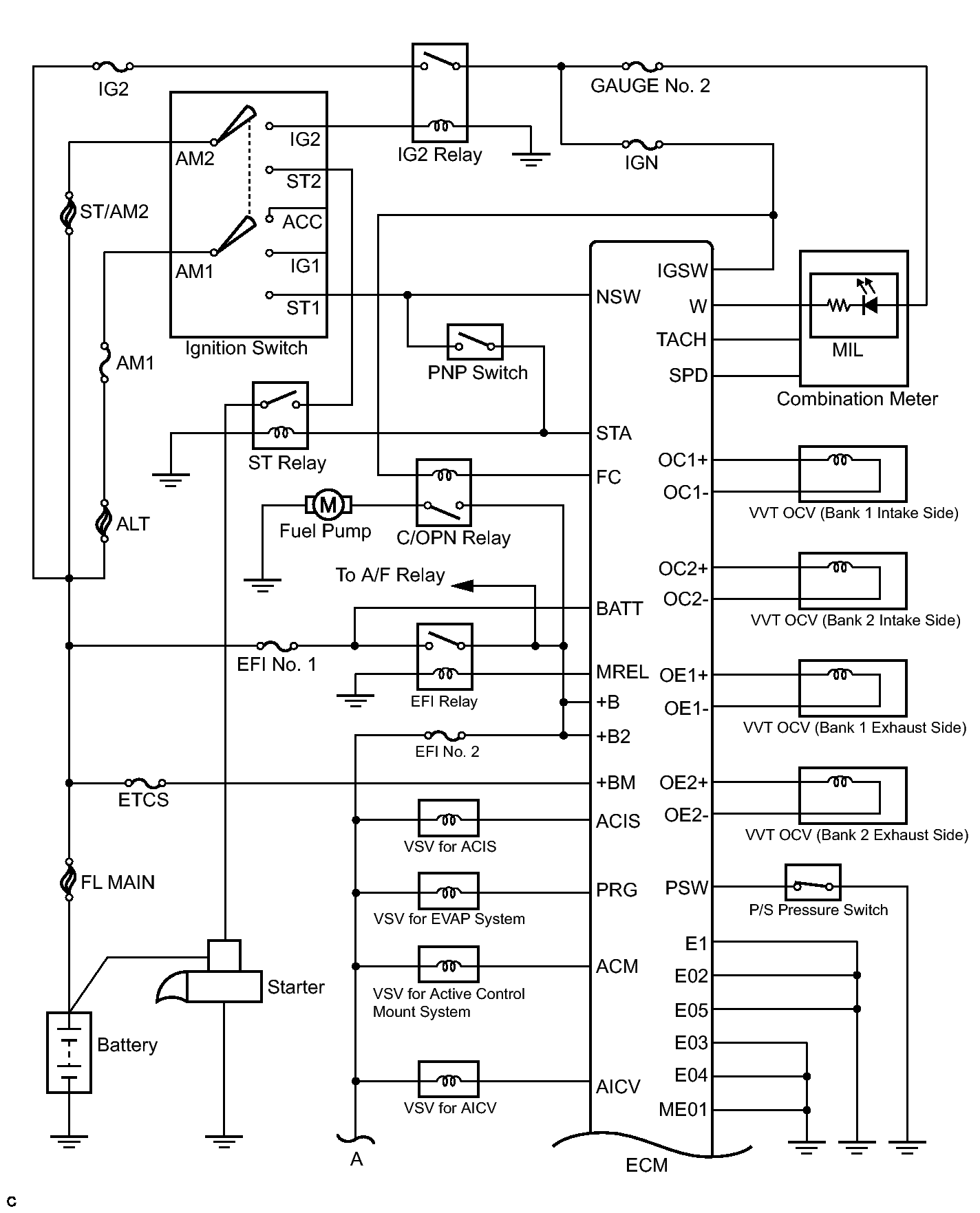

    Fig 1: Engine Control System Diagram - W/O Smart Key System (1 Of 3)
    GTY188577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

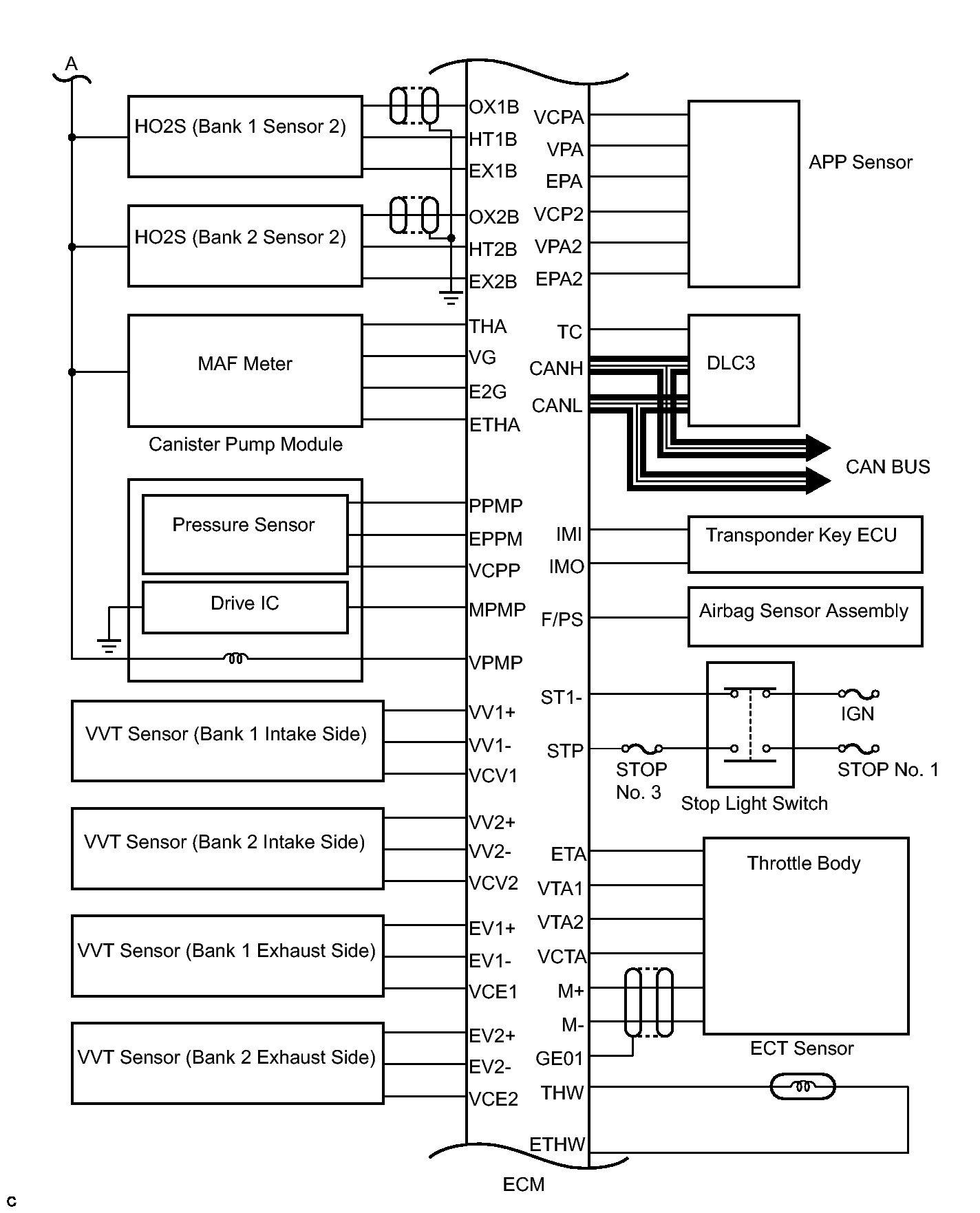

    Fig 2: Engine Control System Diagram - W/O Smart Key System (2 Of 3)
    GTY177036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

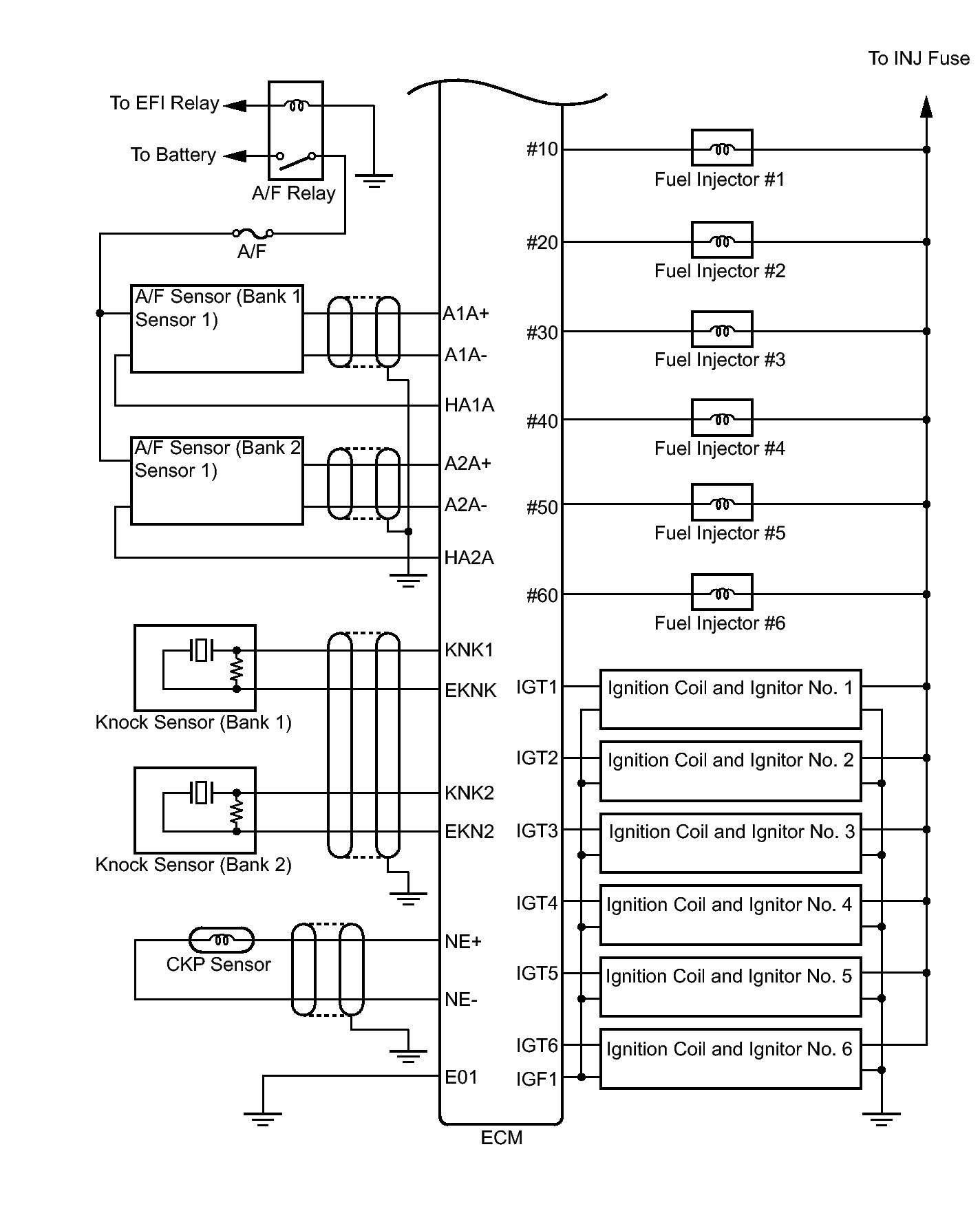

    Fig 3: Engine Control System Diagram - W/O Smart Key System (3 Of 3)
    GTY194977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Smart Key System:

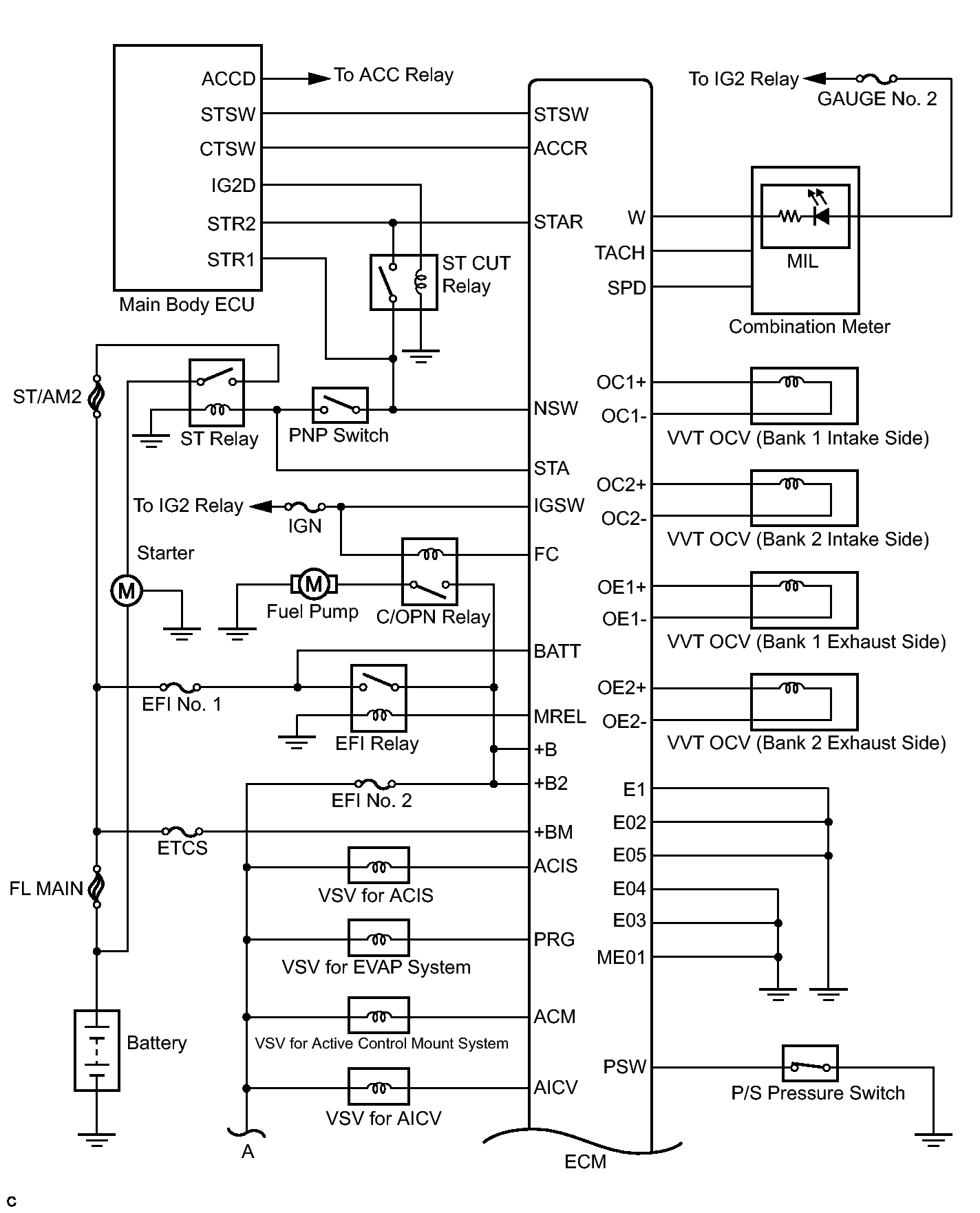

    Fig 4: Engine Control System Diagram - W/ Smart Key System (1 Of 3)
    GTY194160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 5: Engine Control System Diagram - W/ Smart Key System (2 Of 3)
    GTY177036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 6: Engine Control System Diagram - W/ Smart Key System (3 Of 3)
    GTY194977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
