Front Door Speaker: Components

WARNING: This page is about a different car, the 2009 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

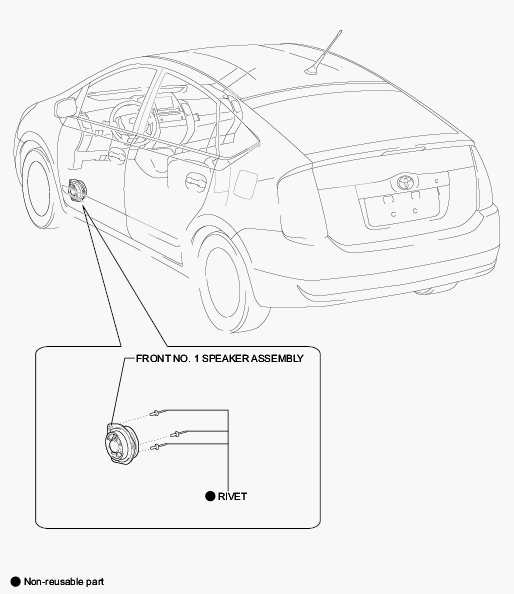

Fig 1: Identifying Front No. 1 Speaker Components
G00468271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For information on front No. 2 speaker, refer to FRONT No. 2 SPEAKER .
