Shift Lock: Notes

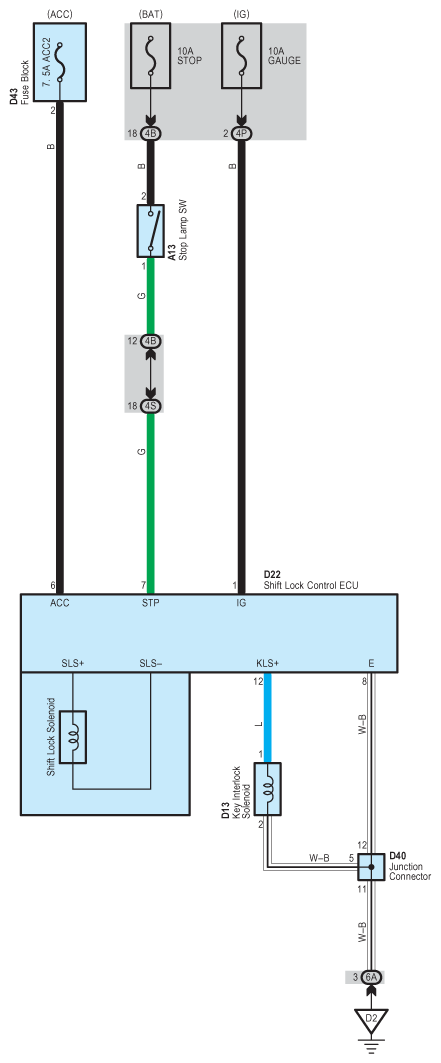

Fig 1: Shift Lock - Circuit Diagram

G07611376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
