Heated Oxygen Sensor: Components

Fig 1: Identifying Heated Oxygen Sensor Replacement Components (1 Of 2)
G06024054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

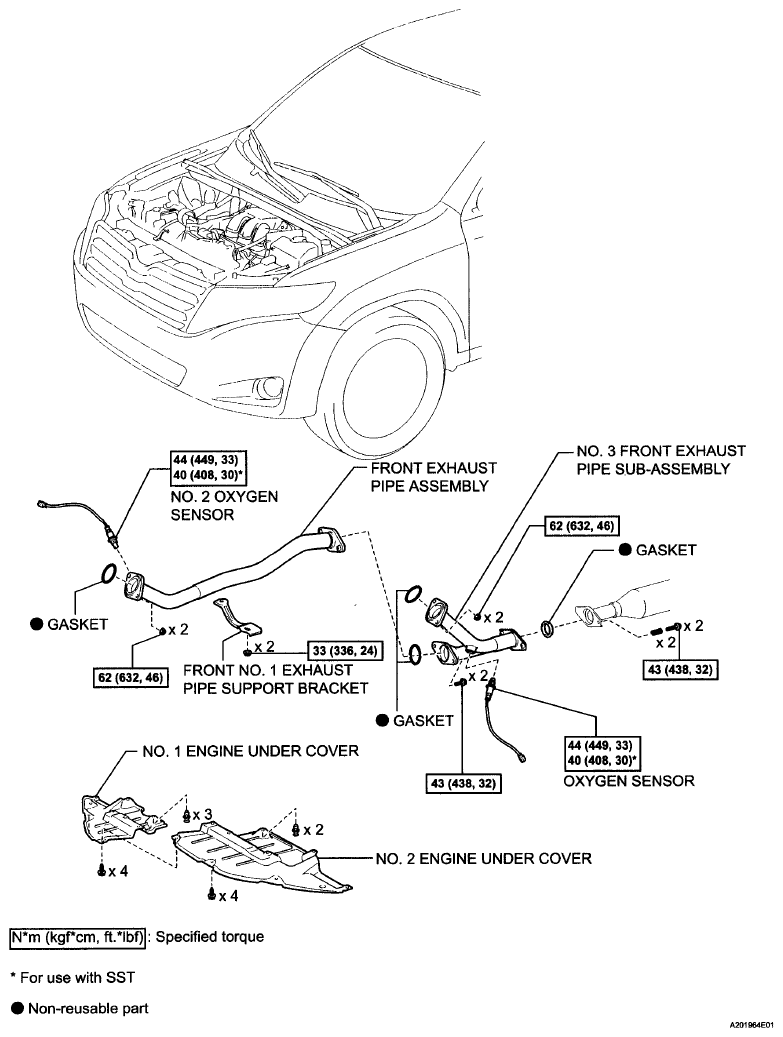

Fig 2: Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 2)
G06024065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
