Throttle Body: Components

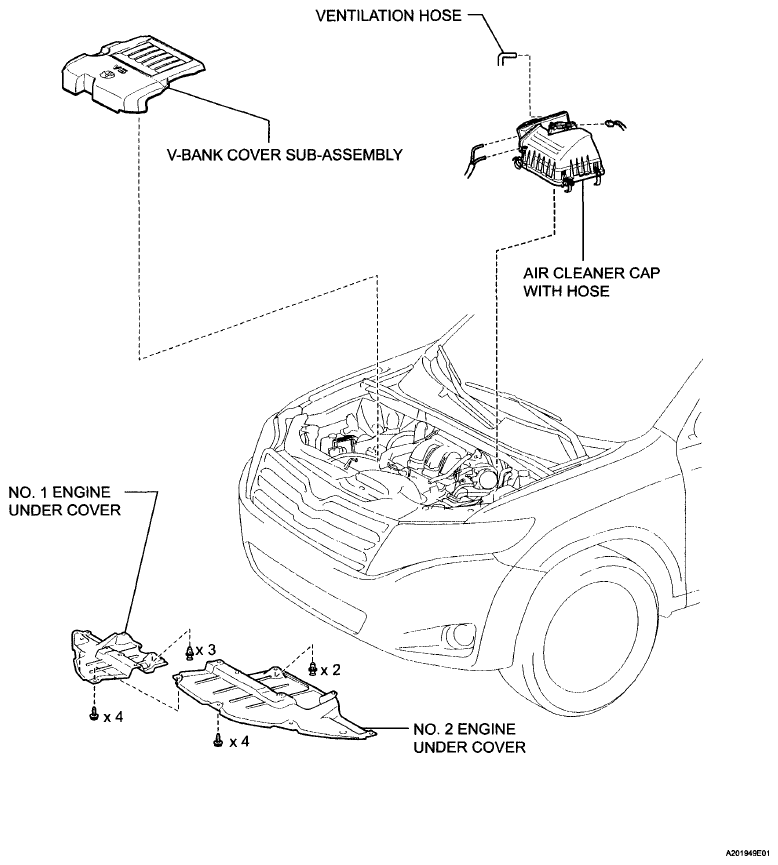

Fig 1: Identifying Throttle Body Replacement Components (1 Of 2)
G06023974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

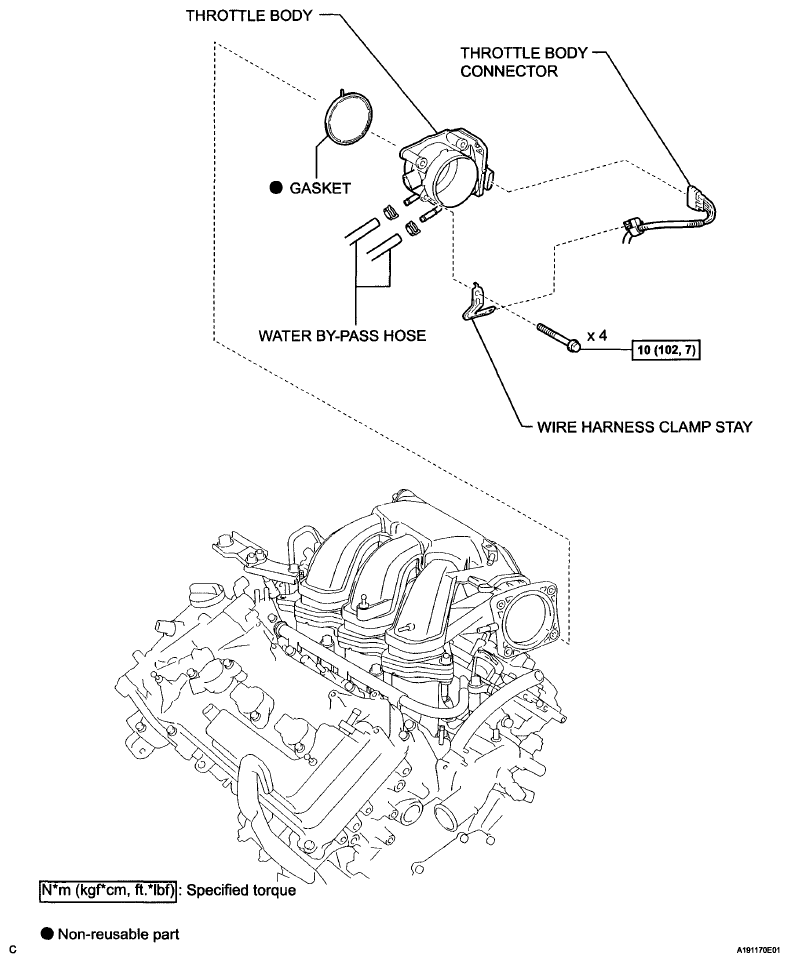

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G06023975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
