Knock Sensor: Components

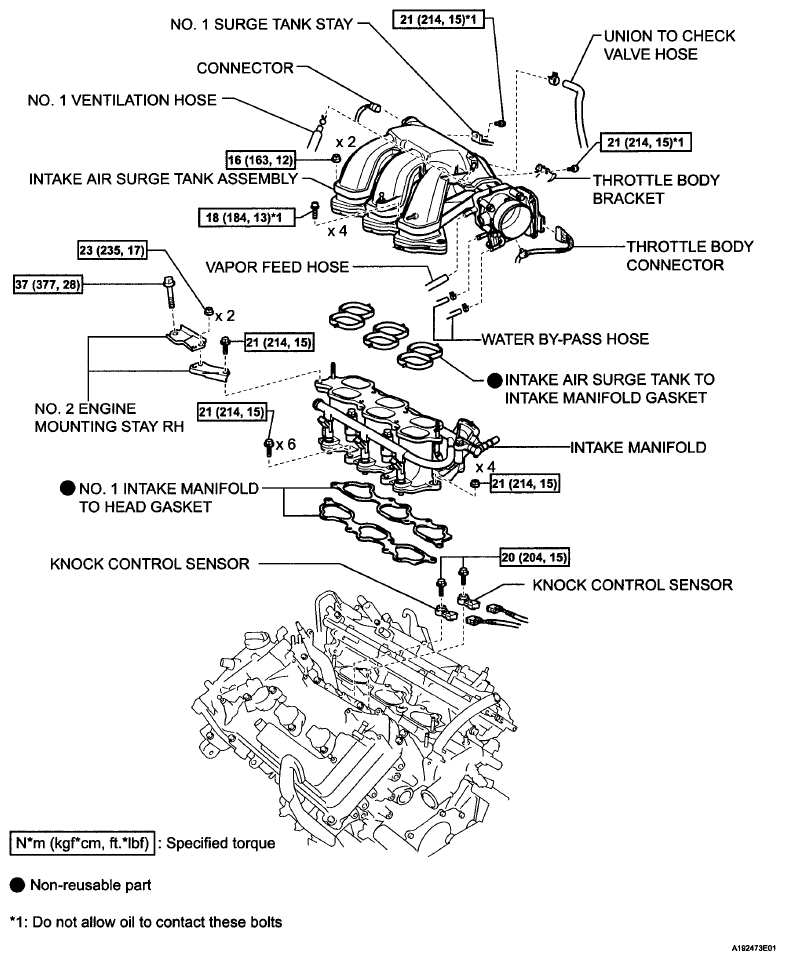

Fig 1: Lnock Sensor Replacement Components With Torque Specifications

G06024050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
