Home >> Toyota >> 2009 >> Venza 3.5 K, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (2GR-FE) - System And Component Inspection, Testing And R & I >> ECM >> Components

Engine Control System (2GR-FE) - System And Component Inspection, Testing And R & I: ECM: Components

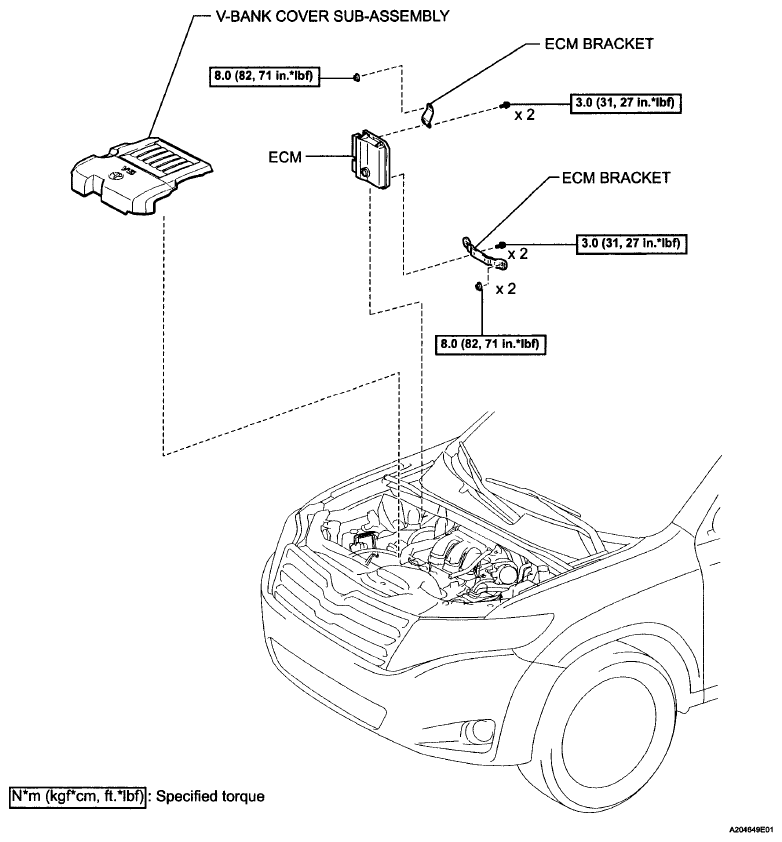

Fig 1: ECM Replacement Components With Torque Specifications
G06024009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
