Air Fuel Ratio Sensor: Components

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components (1 Of 3)
G06024054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

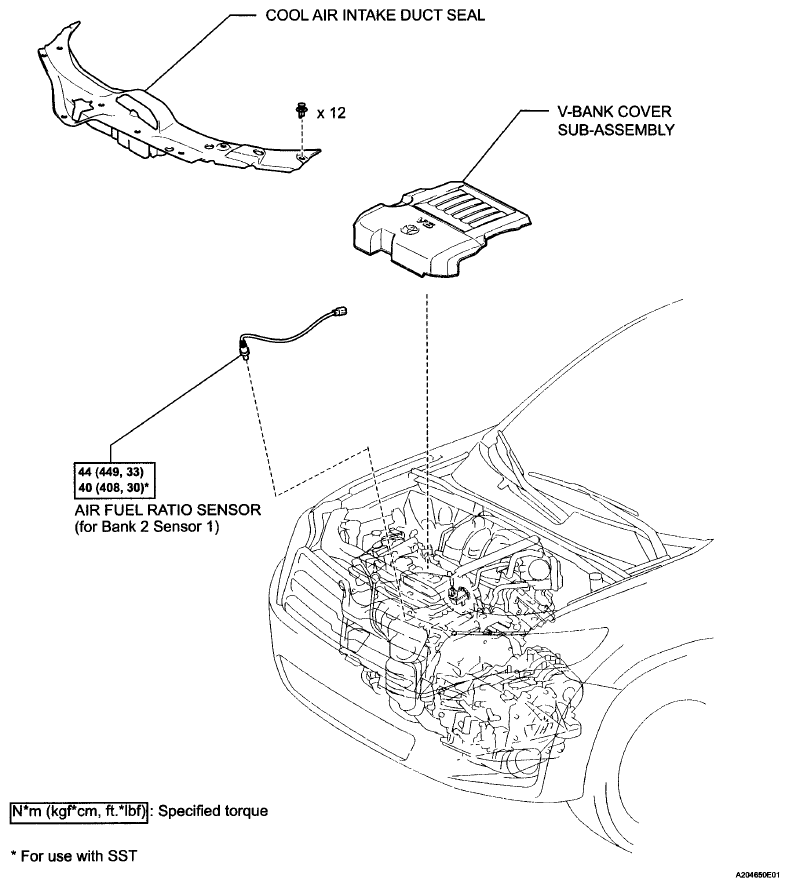

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 3)
G06024055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

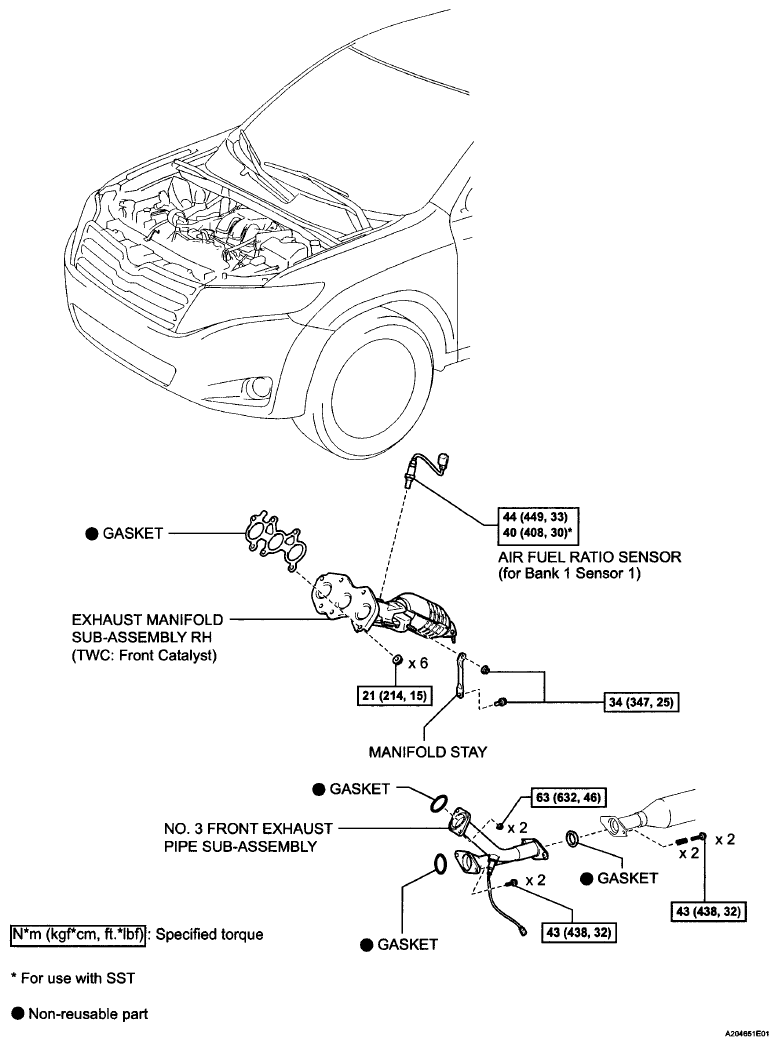

Fig 3: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (3 Of 3)
G06024056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
