EVAP System: Wiring Diagram

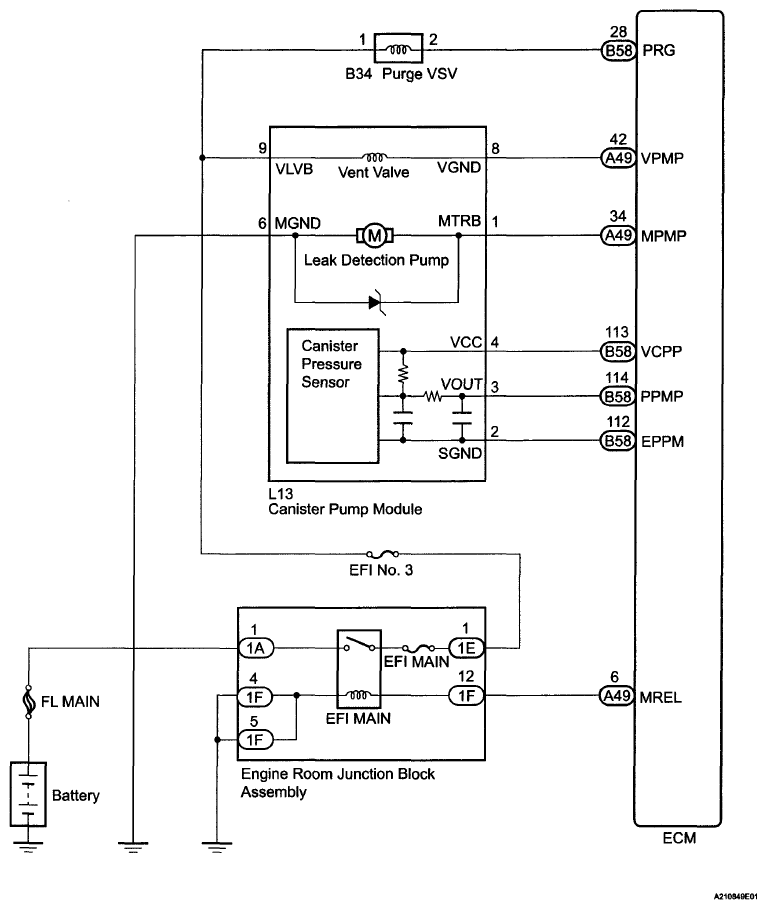

Fig 1: EVAP System - Wiring Diagram

G06023181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
