DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

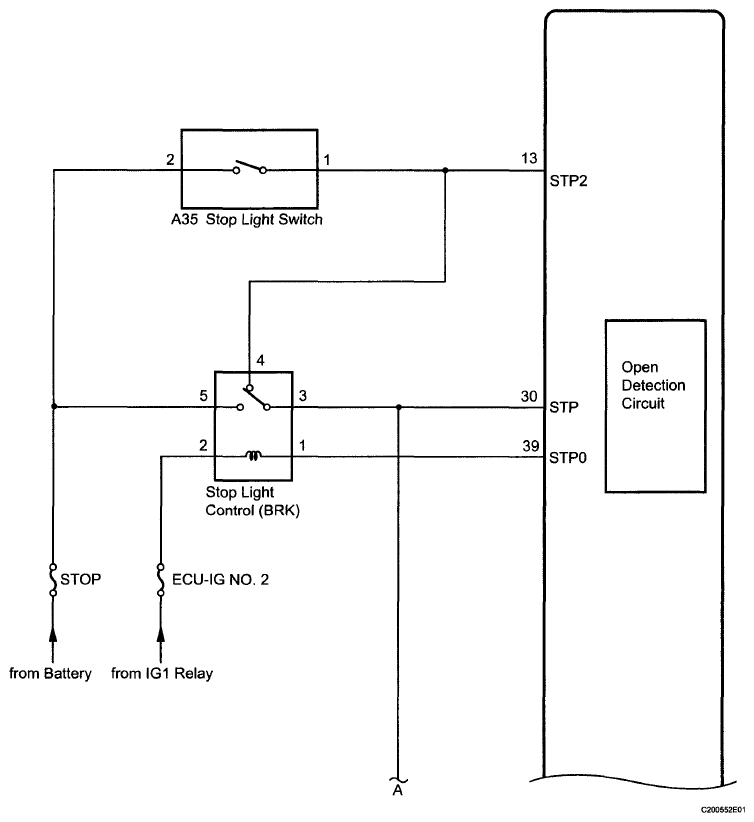

Fig 1: Stop Light Control Switch - Wiring Diagram (1 Of 2)
G06026105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

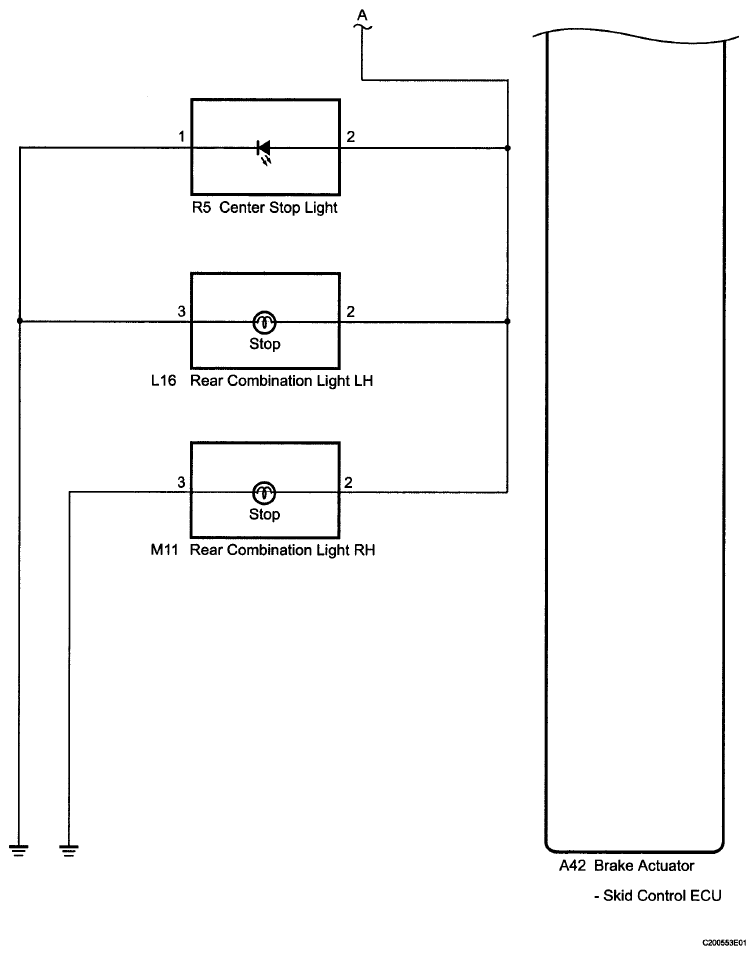

Fig 2: Stop Light Control Switch - Wiring Diagram (2 Of 2)
G06026106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
