Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

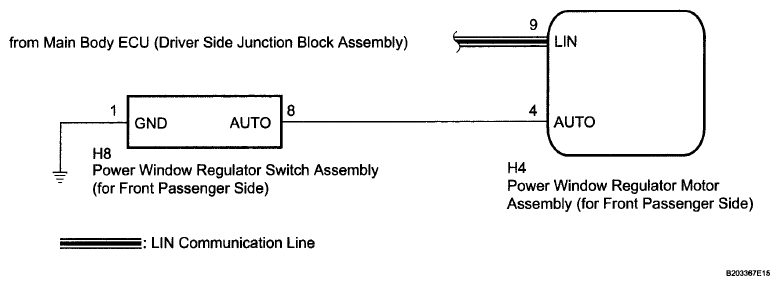

Fig 1: Power Window Switch (Front Passenger Side) - Wiring Diagram
G06028892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
