Radio Receiver: Components

WARNING: This page is about a different car, the 2008 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Radio Receiver Replacement Components (1 Of 2)
G05652381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

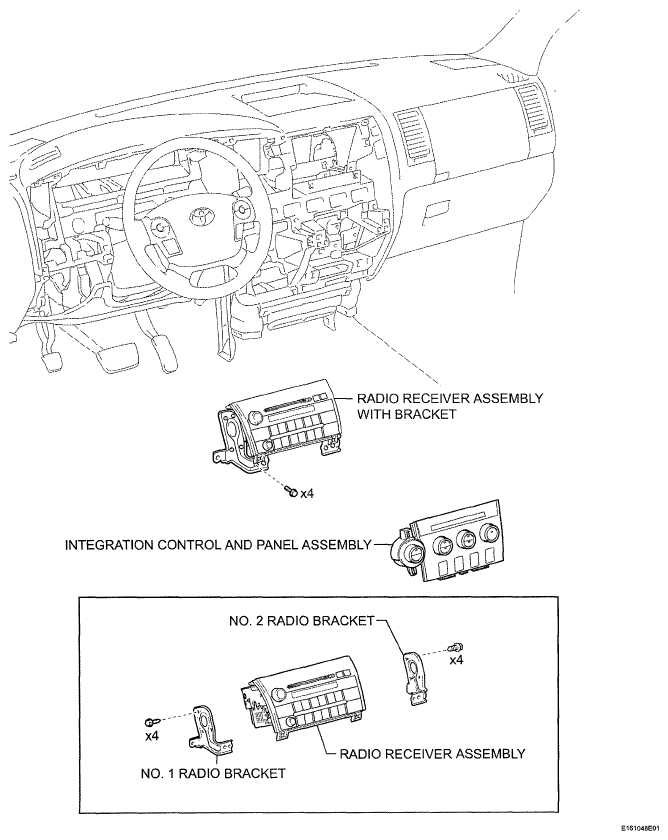

Fig 2: Identifying Radio Receiver Replacement Components (2 Of 2)
G05652382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
