Confirmation Driving Pattern

HINT:

Performing this confirmation pattern will activate the mass air flow performance monitor.

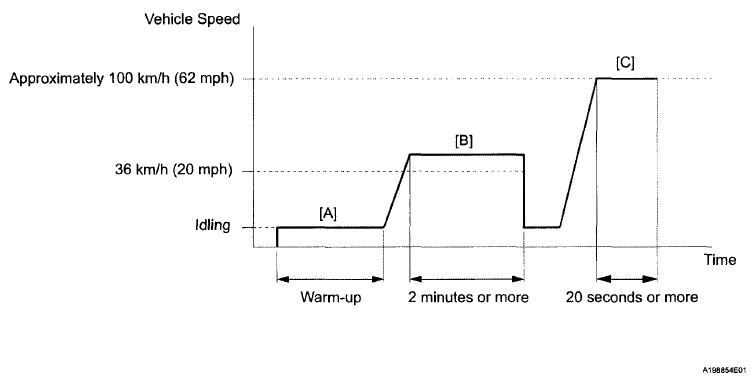

Fig 1: Vehicle Speed Driving Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Clear DTCs (See DTC CHECK/CLEAR ).

   HINT:

   Even if no DTCs are stored, perform the DTC clear operation to start alcohol concentration learning.

5. Start the engine.

   HINT:

   After clearing the DTCs, the engine may become difficult to start if the concentration of alcohol in the fuel is high. Therefore, it may be necessary to crank the engine a few times before it starts.

6. Warm it up until the ECT reaches 75°C (167°F) or higher [A].
7. Drive the vehicle at 32 km/h (20 mph) or more and maintain a constant speed for 2 minutes or more [B].

   HINT:

   Make sure that the Data List "Alcohol Density Learning" is "Compl".

8. Drive the vehicle at approximately 100 km/h (62 mph) for 20 seconds or more [C].
9. Enter the following menus: Powertrain/Engine and ECT/Trouble Codes/Pending.
10. Check if any DTCs (any pending DTCs) are output.
