System Diagram

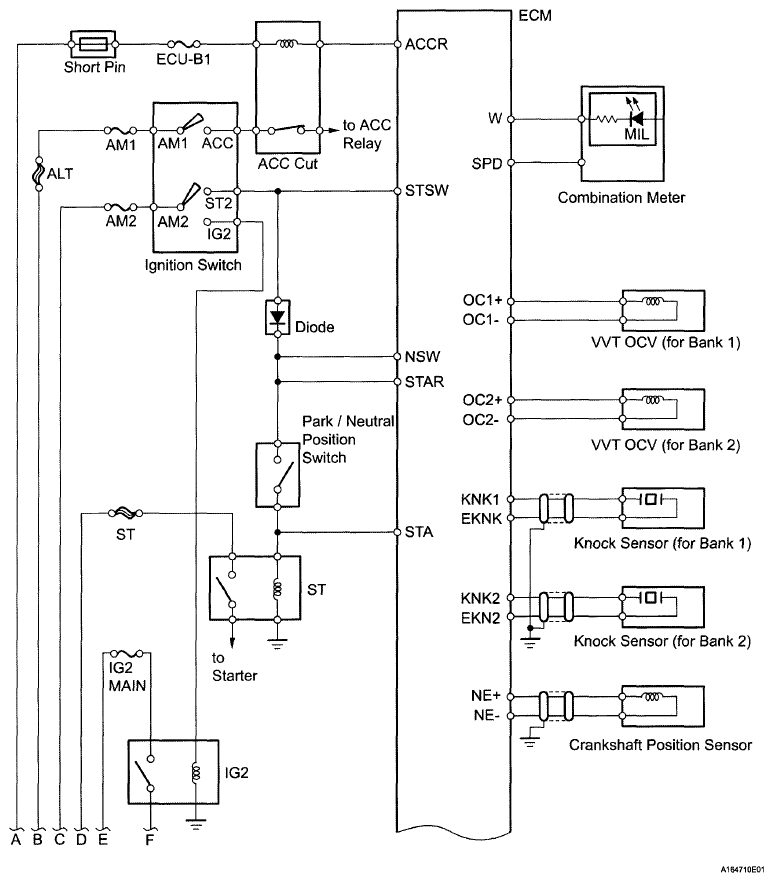

Fig 1: SFI System Diagram (1 Of 6)
G06223919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

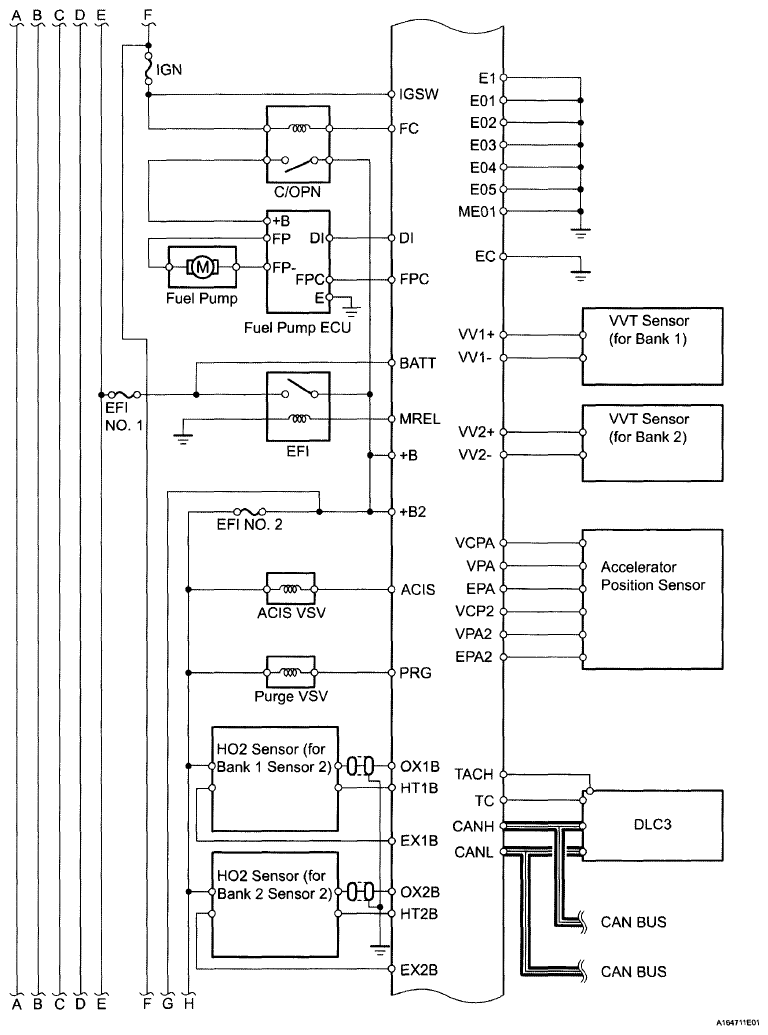

Fig 2: SFI System Diagram (2 Of 6)
G06223920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

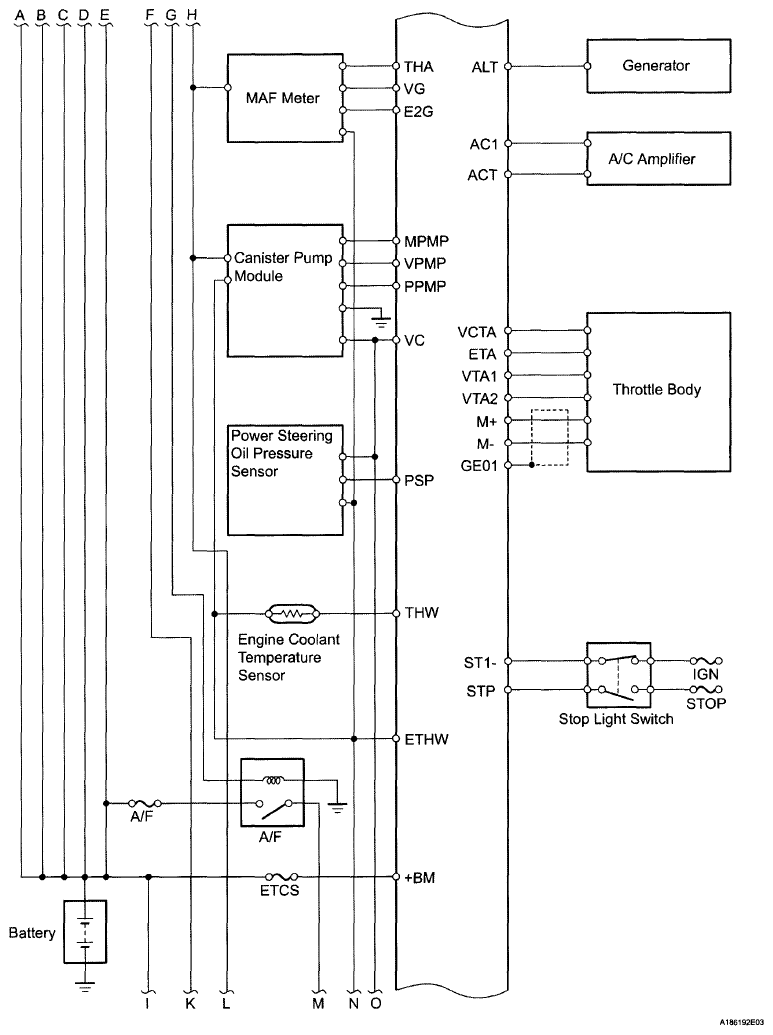

Fig 3: SFI System Diagram (3 Of 6)
G06223921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

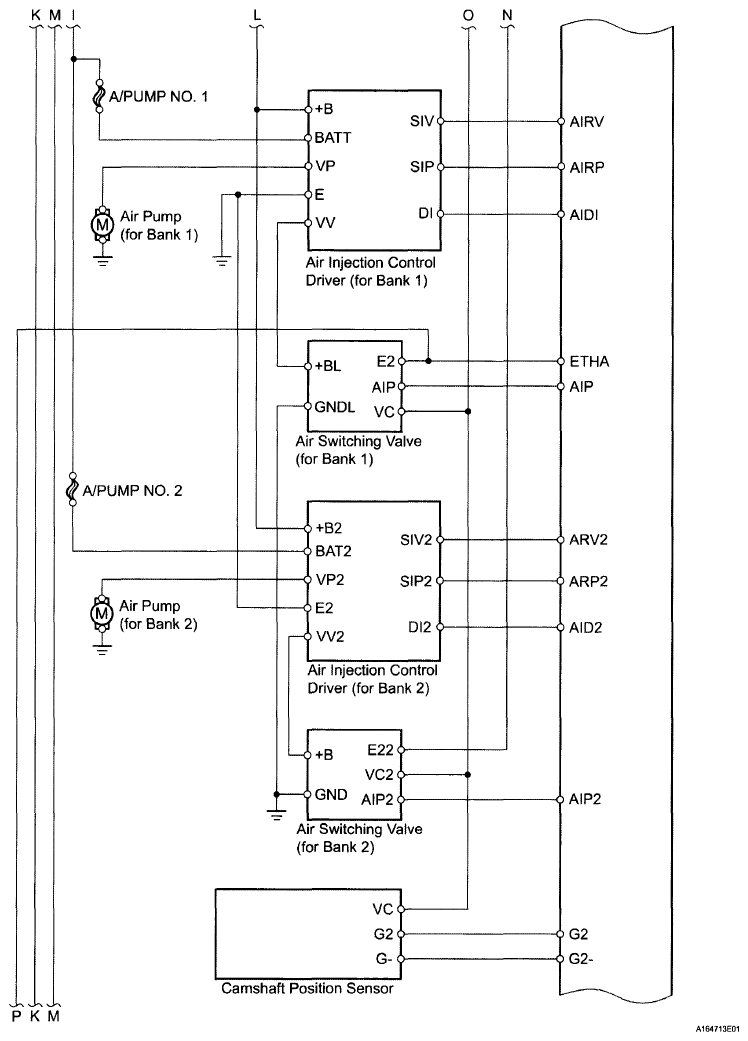

Fig 4: SFI System Diagram (4 Of 6)
G06223922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

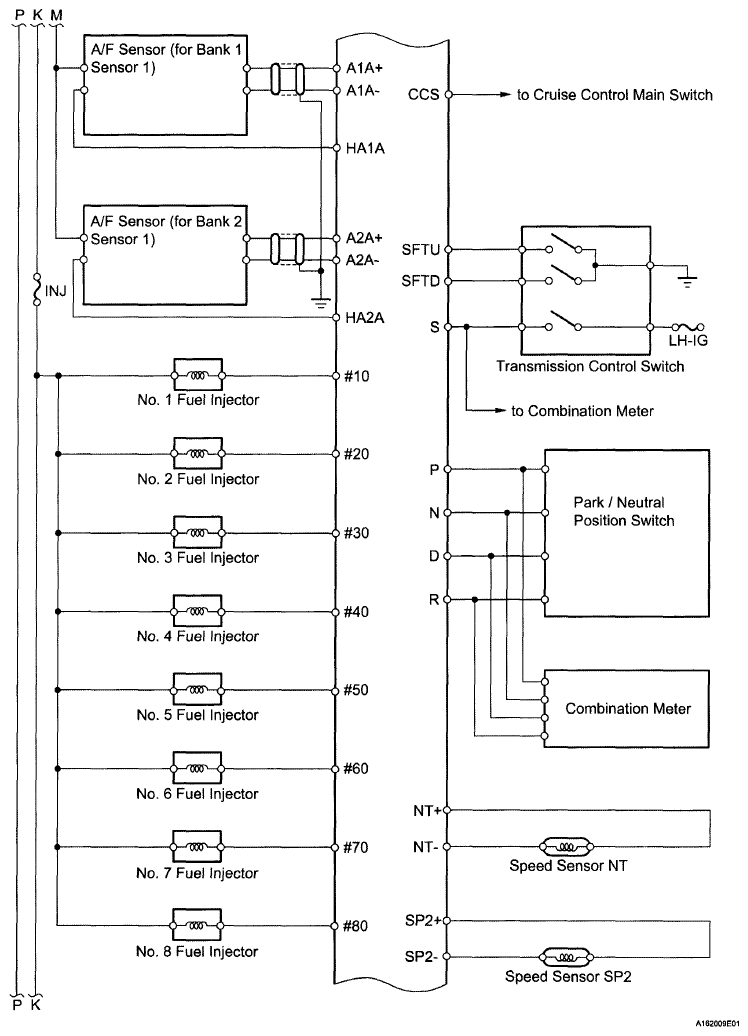

Fig 5: SFI System Diagram (5 Of 6)
G06223923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

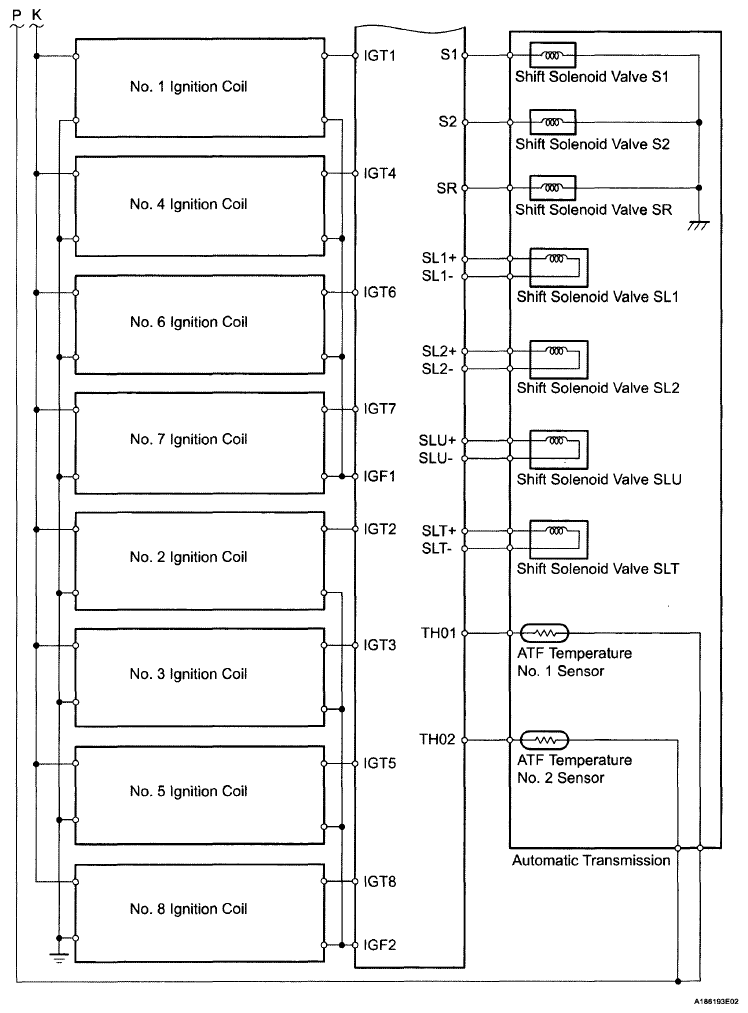

Fig 6: SFI System Diagram (6 Of 6)
G06223924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
