VVT Sensor: Components

Fig 1: Identifying VVT Sensor Replacement Components And Torque Specifications (1 Of 3)
G06227665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

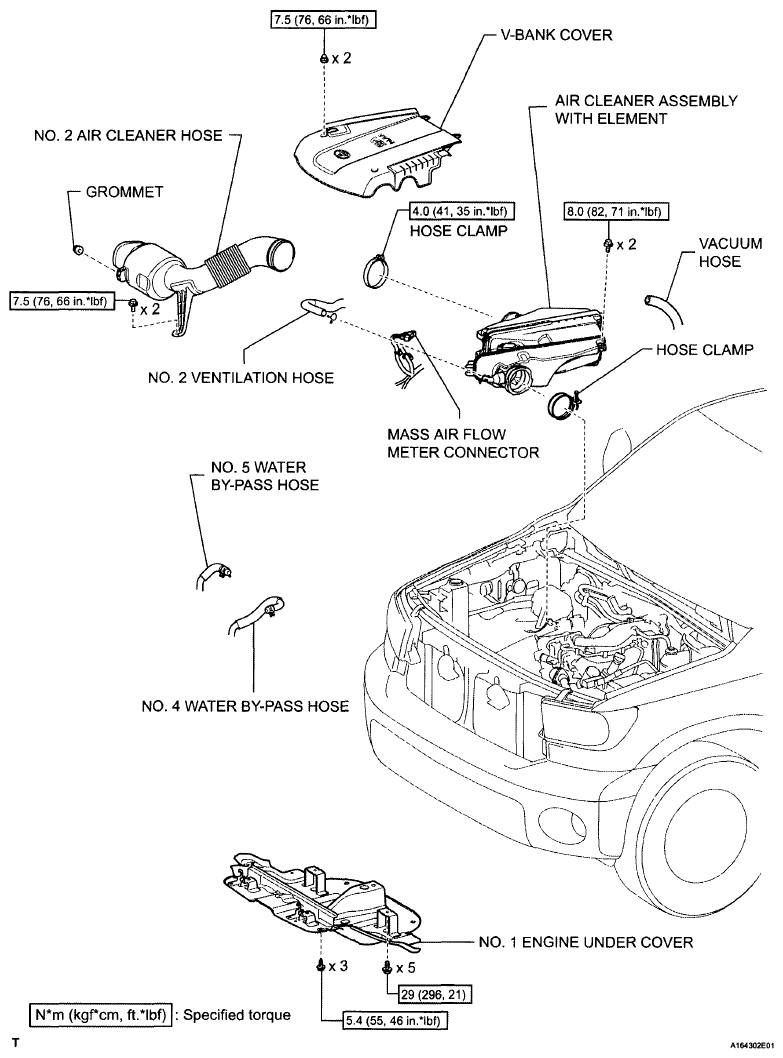

Fig 2: Identifying VVT Sensor Replacement Components And Torque Specifications (2 Of 3)
G06227666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

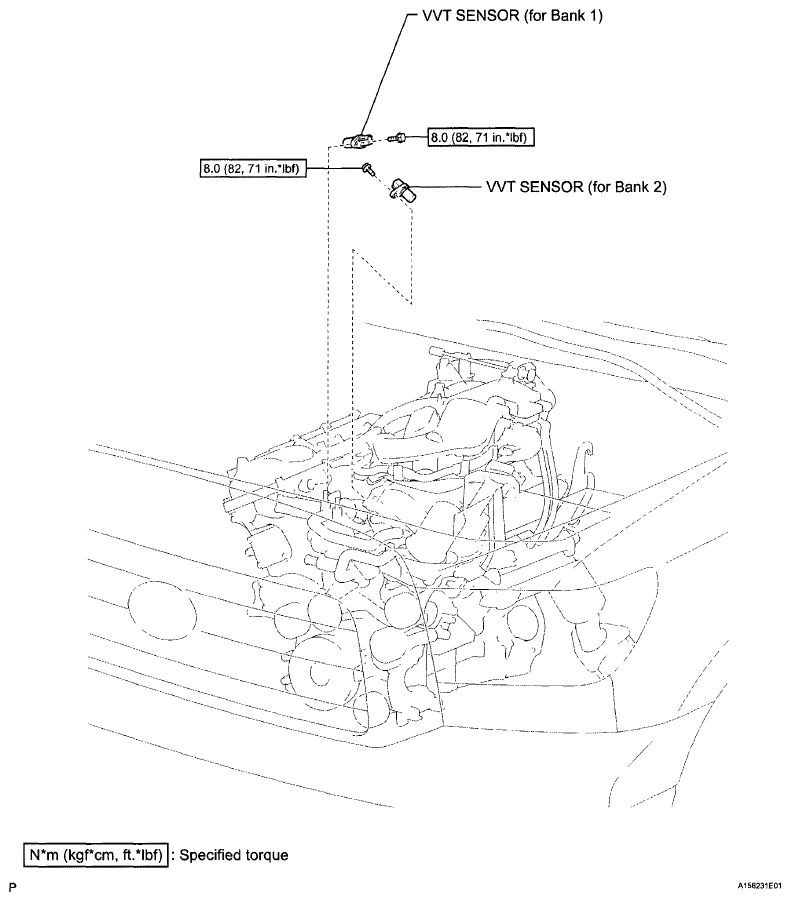

Fig 3: Identifying VVT Sensor Replacement Components And Torque Specifications (3 Of 3)
G06227667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
