Throttle Body: Components

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G06227638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

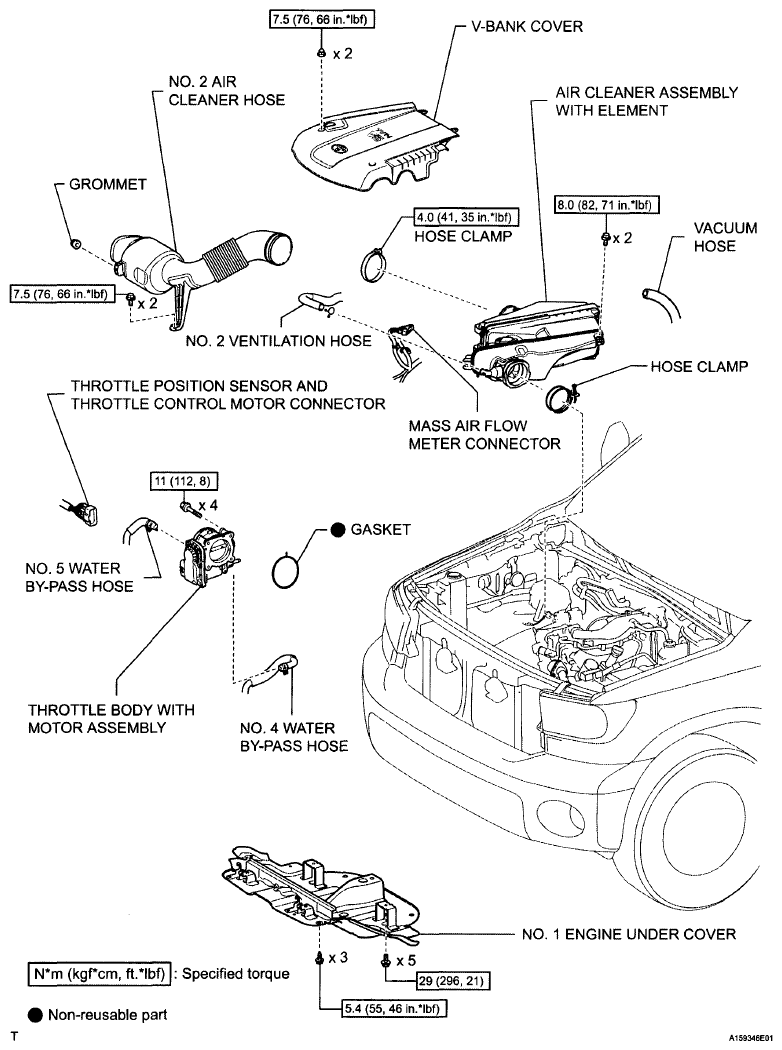

Fig 2: Identifying Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G06227639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
