Mass Air Flow Meter: Components

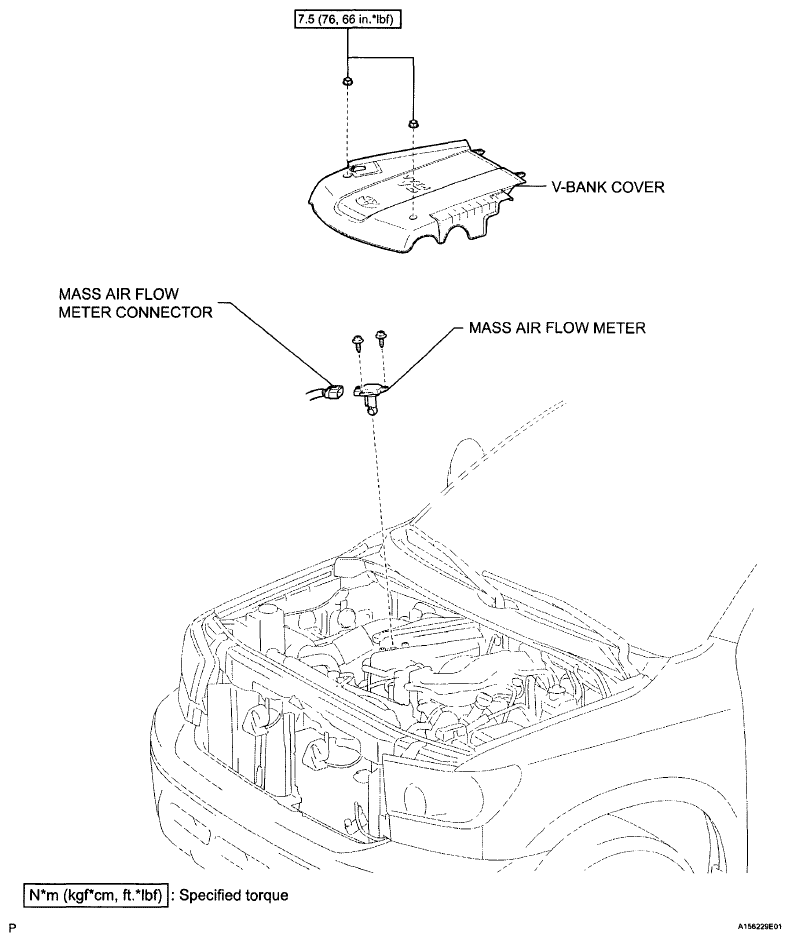

Fig 1: Identifying Mass Air Flow Meter Replacement Components And Torque Specifications
G06227661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
