Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR
    1. Install the 2 sensors with the 2 bolts as shown in the illustration.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Connect the 2 sensor connectors.

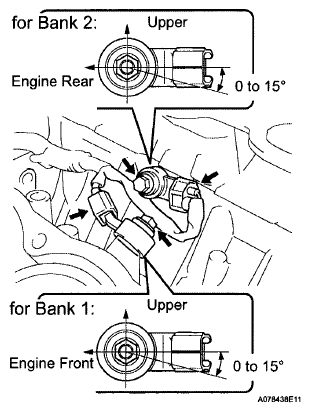

      Fig 1: Locating Sensor Connectors
      G06227699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 WATER OUTLET PIPE
    1. Install the water outlet pipe with the bolt and 2 nuts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Install the 4 wire harness clamps.
  3. INSTALL CYLINDER HEAD SUB-ASSEMBLY RH (for Bank1)
    1. Install the cylinder head RH (see INSTALLATION ).
  4. INSTALL ENGINE ASSEMBLY
    1. Install the engine (see INSTALLATION ).
      Fig 2: Locating Bolt, Nuts And Water Outlet Pipe
      G06227700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
