Heated Oxygen Sensor: Components

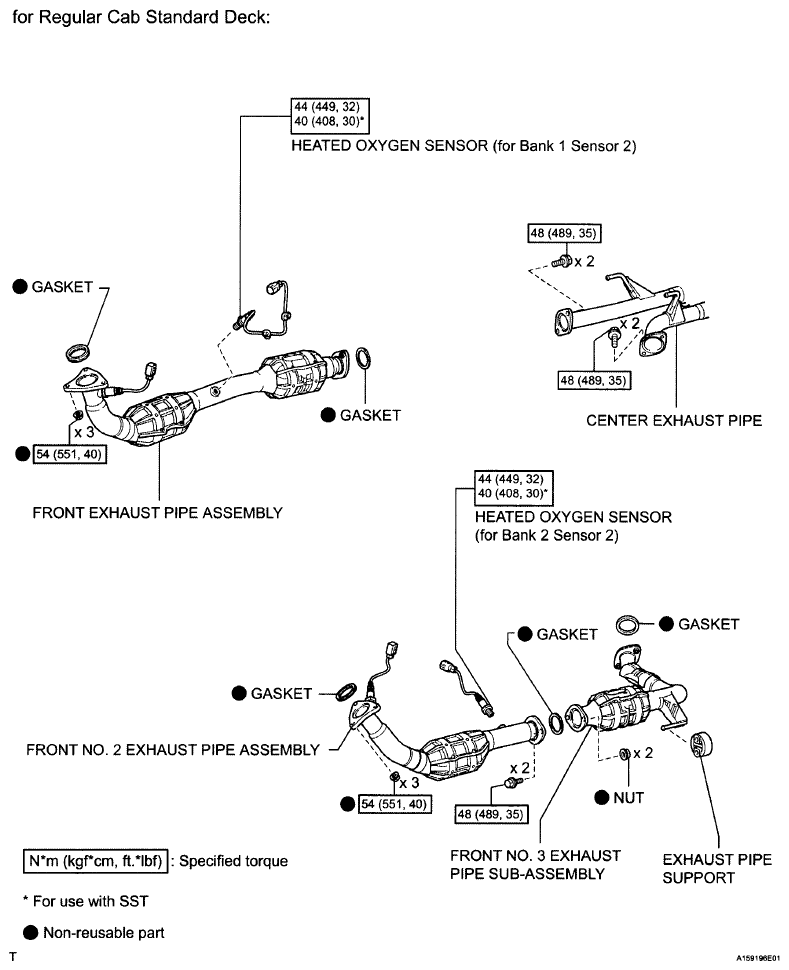

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (1 Of 2)
G06227716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

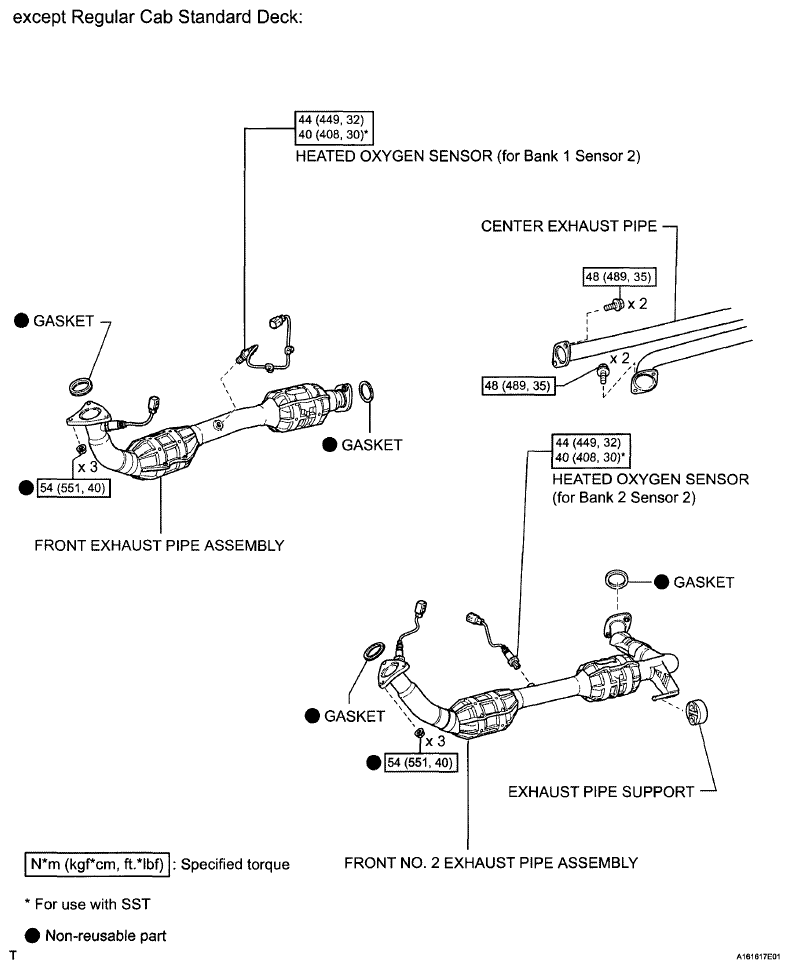

Fig 2: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 2)
G06227717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
