Crankshaft Position Sensor: Components

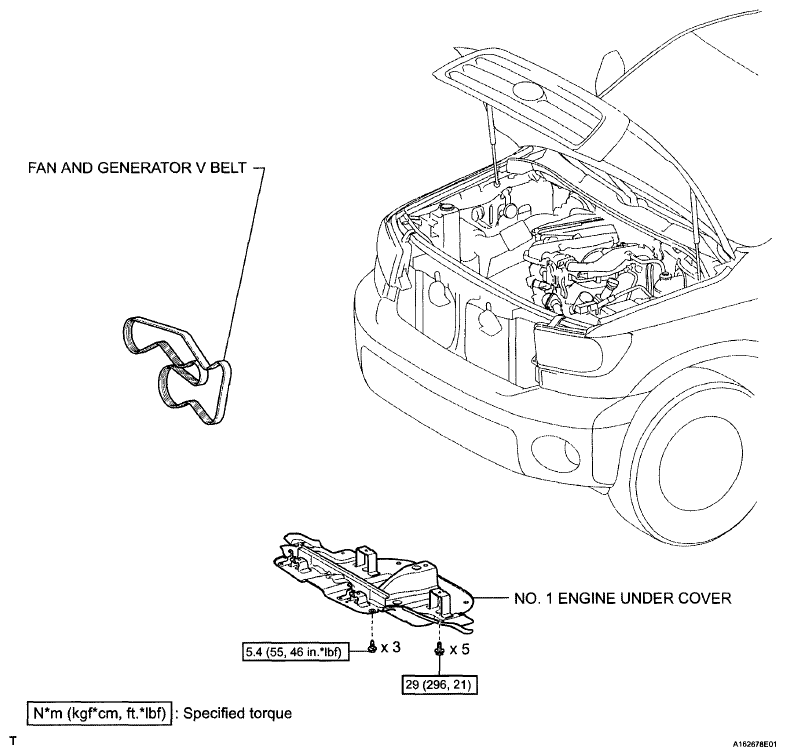

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
G06227674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

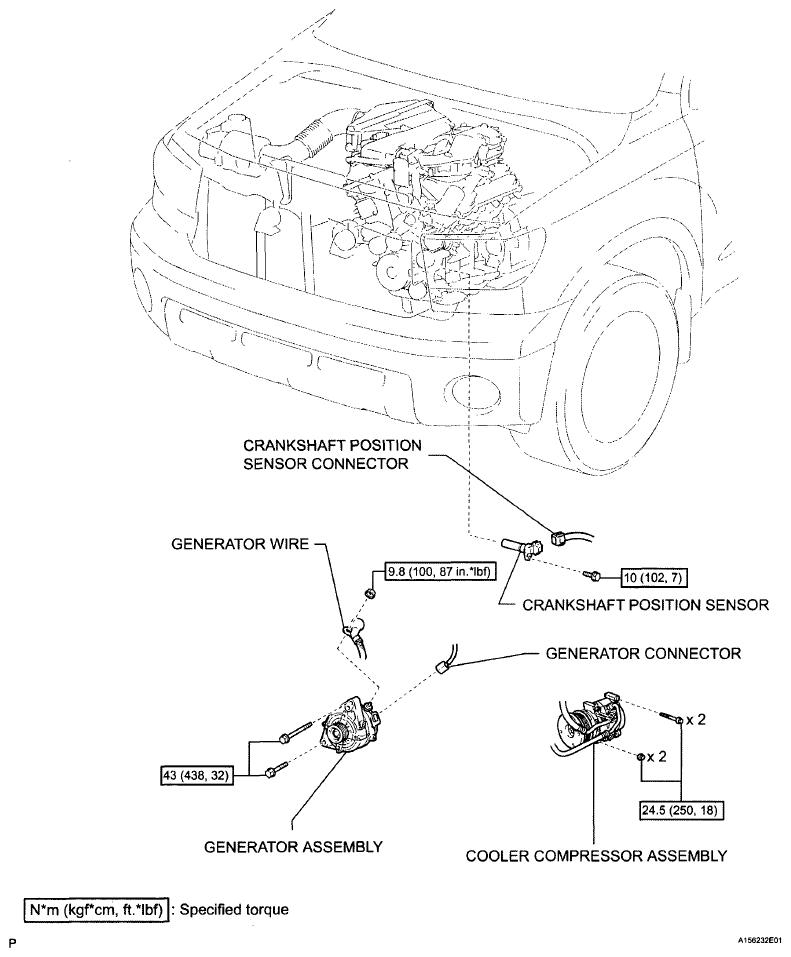

Fig 2: Identifying Crankshaft Position Sensor Replacement Components And Torque Specifications (2 Of 2)
G06227675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
