Air Fuel Ratio Sensor: Components

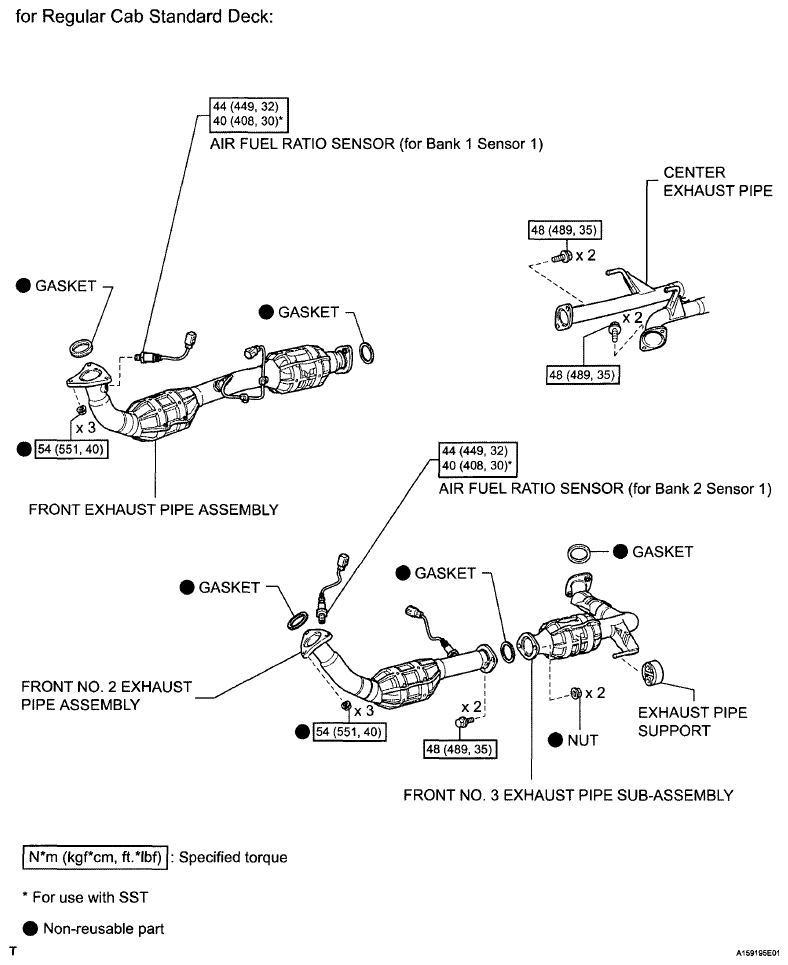

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)
G06227701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

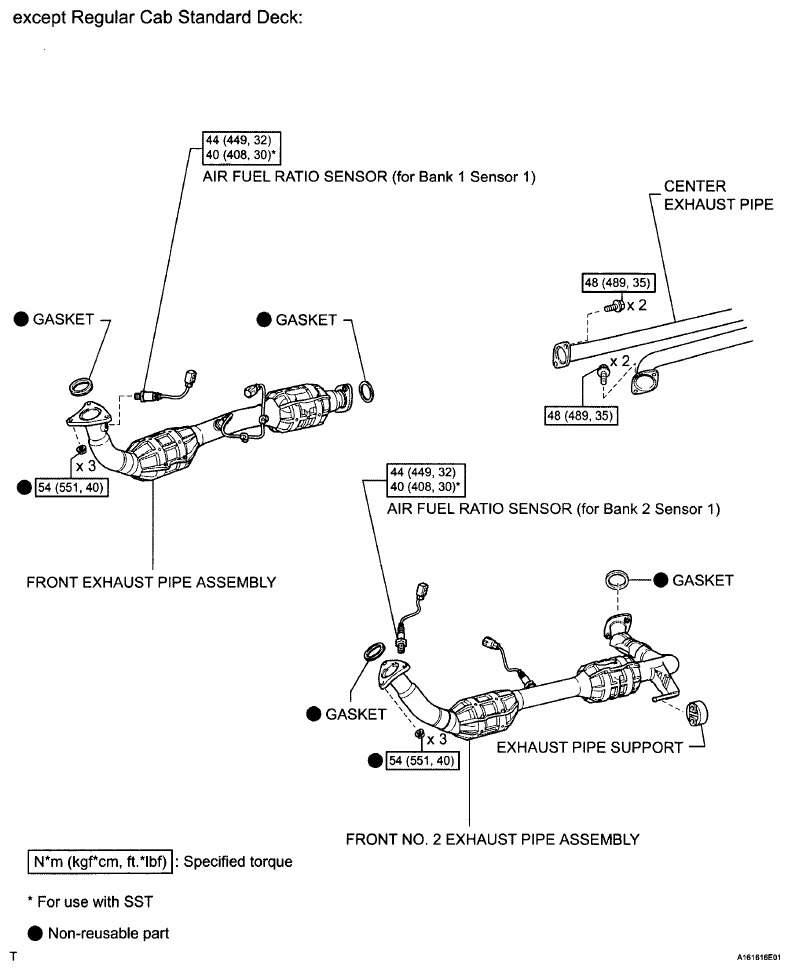

Fig 2: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 2)
G06227702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
