Inspection Procedure

  1. PERFORM ACTIVE TEST USING TECHSTREAM (OPERATE VSV FOR ACIS)
    1. Disconnect the vacuum hose.
    2. Connect the Techstream to the DLC3.
    3. Turn the ignition switch ON and turn the Techstream ON.
    4. Enter the following menus: Powertrain/Engine and ECT/Active Test/Active the VSV for Intake Control. Operate the VSV for ACIS.
    5. Check the VSV operation when it is operated using the Techstream.

      Standard

      TESTER OPERATION SPECIFIED CONDITION CHART

      Tester Operation Specified Condition
      VSV ON Air from port E flows out through port F
      VSV OFF Air from port E flows out through air filter
      Fig 1: Checking VSV Operation
      G06227621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Result Proceed to
      NG A
      OK B
    6. Reconnect the vacuum hose.

      B: Go to step  4

      A: Go to next step

  2. CHECK VSV FOR ACIS (OPERATION)
    1. Inspect VSV for ACIS (See ON-VEHICLE INSPECTION ).

      NG: REPLACE VSV FOR ACIS

      OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (VSV FOR ACIS - ECM, VSV FOR ACIS - EFI NO. 2 FUSE)
    1. Check the wire harness and connectors between the VSV for ACIS and ECM.
      1. Disconnect the D61 VSV for ACIS connector.
      2. Disconnect the D74 ECM connector.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connection Condition Specified Condition
        D61-2 - D74-62 (ACIS) Always Below 1 Ω

        Standard resistance (Check for short)

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connection Condition Specified Condition
        D61-2 or D74-62 (ACIS) - Body ground Always 10 kΩ or higher
      4. Reconnect the VSV for ACIS connector.
      5. Reconnect the ECM connector.
    2. Check the wire harness between the VSV for ACIS and EFI NO. 2 fuse.
      1. Disconnect the D61 VSV for ACIS connector.
      2. Remove the EFI NO. 2 fuse from the engine room relay block.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connection Condition Specified Condition
        D61-1 - EFI NO. 2 fuse (2) Always Below 1 Ω
      4. Reconnect the VSV for ACIS connector.
      5. Reinstall the EFI relay.

        NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

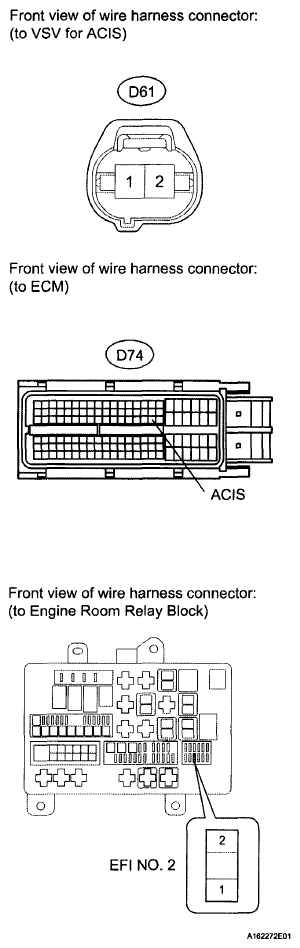

        Fig 2: Identifying D61 VSV For ACIS Connector Terminal
        G06227622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK: Go to next step

  4. CHECK VACUUM HOSES (INTAKE MANIFOLD - IACV, IACV - VSV FOR ACIS)
    1. Check that the vacuum hose is connected correctly.
    2. Check the vacuum hose for looseness and disconnection.
    3. Check the vacuum hose for cracks, holes and damage.

      NG: REPAIR OR REPLACE VACUUM HOSES

      OK: Go to next step

  5. INSPECT INTAKE AIR SURGE TANK (INTAKE AIR CONTROL VALVE)
    1. Check that the lever moves when a vacuum of 26.6 kPa (200 mmHg, 7.85 in.Hg) is applied with the vacuum gauge on.

      OK:

      Lever moves

    2. Check that the vacuum of 26.6 kPa (200 mmHg, 7.85 in.Hg) is sustained for 1 minute in the above state.

      OK:

      Vacuum is sustained

      NG: REPLACE INTAKE AIR SURGE TANK (INTAKE AIR CONTROL VALVE) (See  REMOVAL  )

      Fig 3: Inspecting Intake Air Control Valve (Intake Air Surge Tank)
      G06227623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: REPLACE ECM  (See REMOVAL  )
