Engine Immobiliser System (1GR-FE): Notes

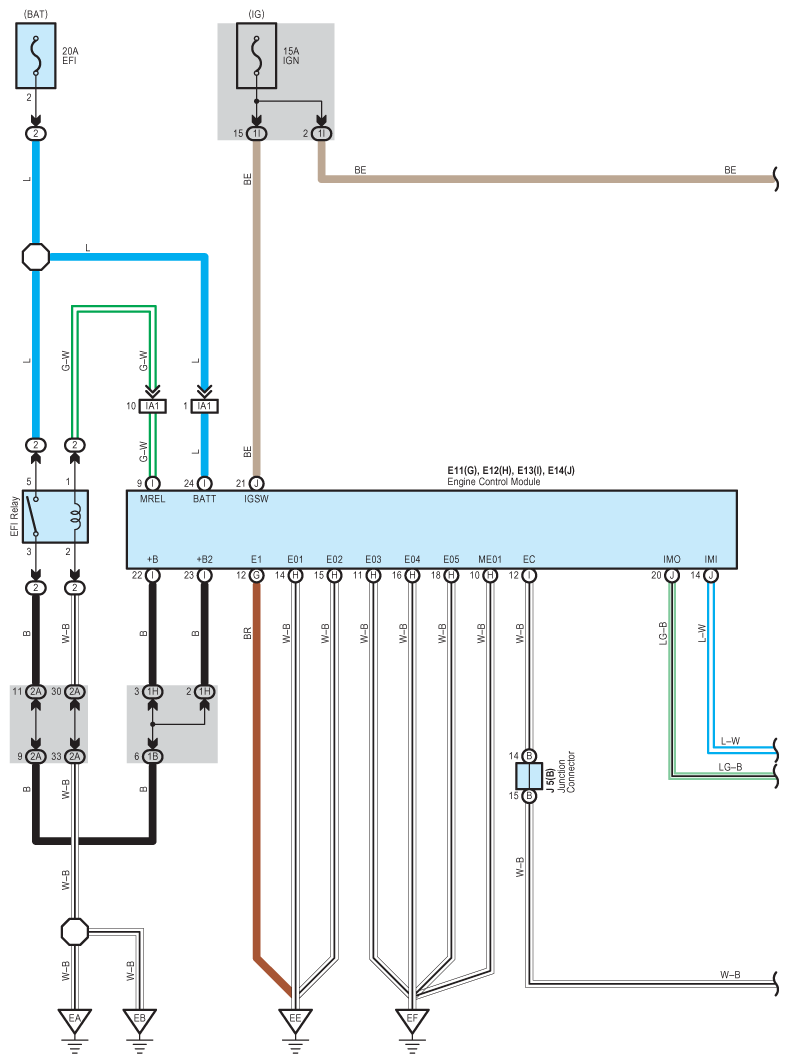

Fig 1: Engine Immobiliser System (1GR-FE) - Circuit Diagram (1 Of 2)
G07612632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

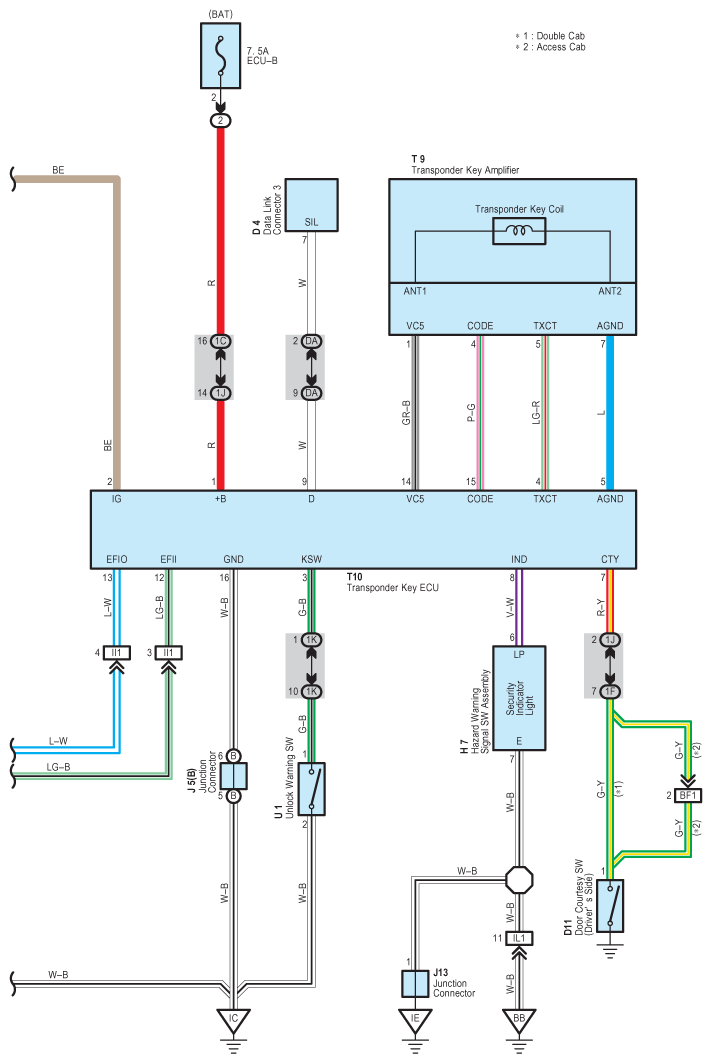

Fig 2: Engine Immobiliser System (1GR-FE) - Circuit Diagram (2 Of 2)
G07612633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
