For MEXICO Models:: Wiring Diagram

Refer to DTC P0351 for wiring diagram of the ignition system (See WIRING DIAGRAM  ).

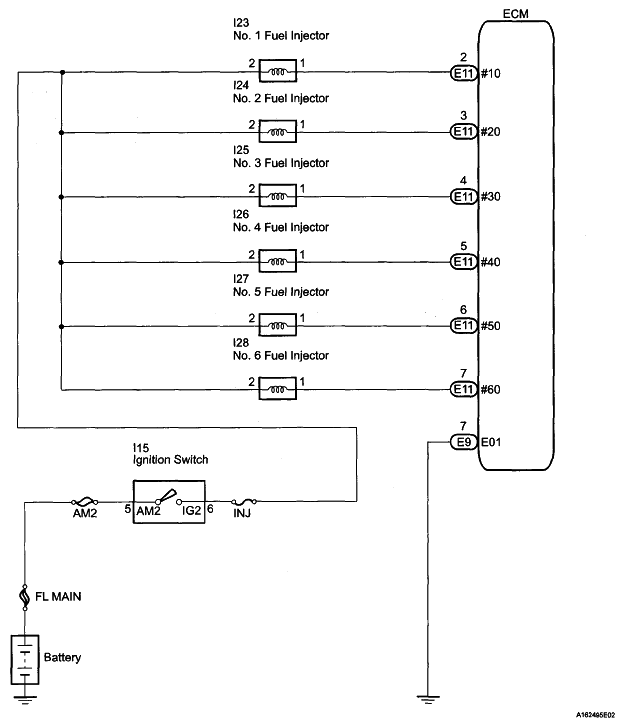

Fig 1: Fuel Injector And Ignition Switch - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
