Terminals Of Ecu

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Turn the ignition switch off before measuring the resistance of the CAN bus main wires and CAN bus branch wires.
  • After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
  • Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If any doors need to be opened in order to check the connectors, open the doors and leave them open.

HINT:

Operating the ignition switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

NOTE: This section describes the standard CAN values for all CAN related components.
  1. JUNCTION CONNECTOR FOR CAN NO. 1 BUS
    1. CAN No. 1 junction connector

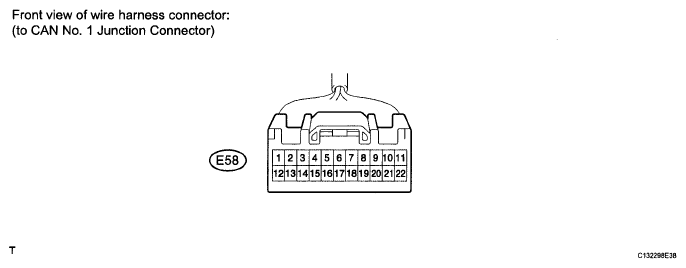

      Fig 1: Identifying CAN No. 1 Junction Connector
      G06010933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 1 Junction Connector Wiring Color Connect to
      E58-2 (CANH) G Combination meter
      E58-13 (CANL) W Combination meter
      E58-3 (CANH) SB Power steering ECU
      E58-14 (CANL) W Power steering ECU
      E58-4 (CANH) V Air conditioning amplifier
      E58-15 (CANL) W Air conditioning amplifier
      E58-5 (CANH) BR Steering angle sensor
      E58-16 (CANL) W Steering angle sensor
      E58-6 (CANH) L Yaw rate sensor
      E58-17 (CANL) W Yaw rate sensor
      E58-7 (CANH) LG DLC3
      E58-18 (CANL) W DLC3
      E58-8 (CANH) R Main body ECU
      E58-19 (CANL) W Main body ECU
      E58-9 (CANH) Y Center airbag sensor assembly
      E58-20 (CANL) W Center airbag sensor assembly
      E58-10 (CANH) B CAN No. 2 junction connector
      E58-21 (CANL) W CAN No. 2 junction connector
      E58-11 (CANH) GR Accessory gateway
      E58-22 (CANL) W Accessory gateway
    2. CAN No. 2 junction connector

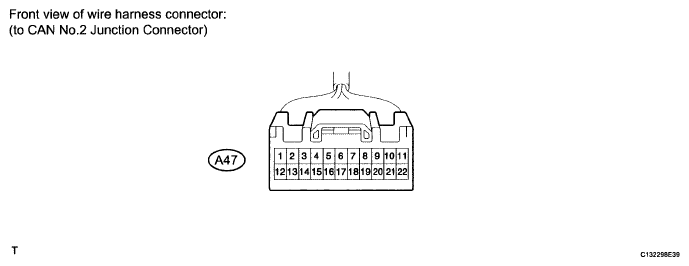

      Fig 2: Identifying CAN No. 2 Junction Connector
      G06010934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 2 Junction Connector Wiring Color Connect to
      A47-8 (CANH) R Skid control ECU
      A47-19 (CANL) W Skid control ECU
      A47-9 (CANH) B CAN No. 1 junction connector
      A47-20 (CANL) W CAN No. 1 junction connector
      A47-10 (CANH) Y ECM
      A47-21 (CANL) W ECM

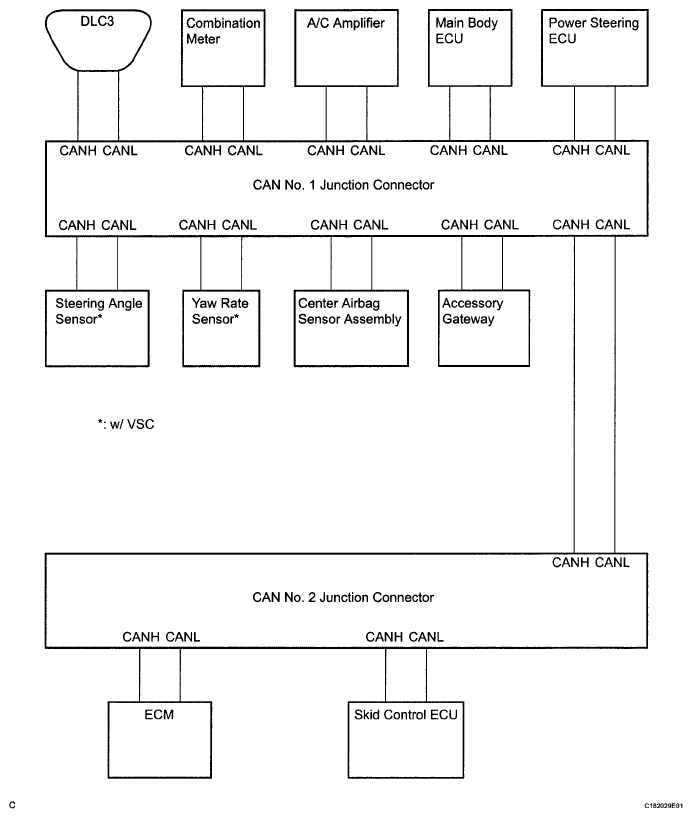

    3. The connection diagram of the components which are connected to the CAN junction connector
    Fig 3: Components Connection Diagram
    G06010935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. JUNCTION CONNECTOR FOR CAN MS BUS
    1. CAN No. 3 junction connector
      Fig 4: Identifying CAN No. 3 Junction Connector
      G06010936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 3 Junction Connector Wiring Color Connect to
      E59-7 (CANH) SB Certification ECU
      E59-18 (CANL) W Certification ECU
      E59-8 (CANH) G Combination meter
      E59-19 (CANL) W Combination meter
      E59-9 (CANH) R Main body ECU
      E59-20 (CANL) W Main body ECU

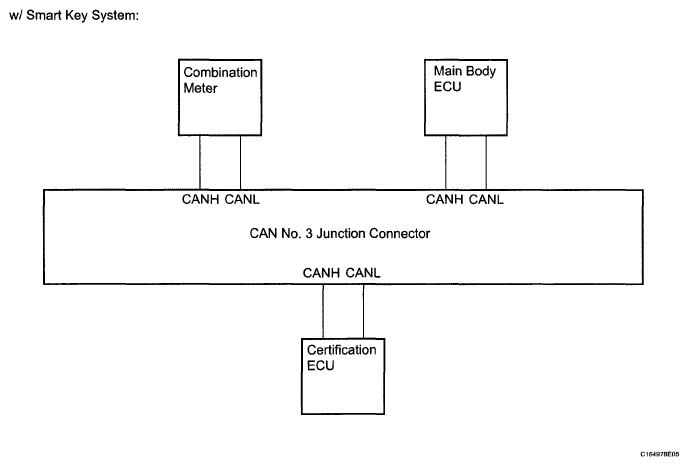

    2. The connection diagram of the components which are connected to the CAN junction connector.
    Fig 5: Components Connection Diagram
    G06010937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DLC3
    1. Measure the resistance according to the value (s) in the table below.
    Fig 6: Identifying E11 DLC3
    G06010938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E11-6 (CANH) - E11-14 (CANL) LG-W Ignition switch off 54 to 69 Ω
    E11-6 (CANH) - E11-4 (CG) LG - W-B Ignition switch off 200 Ω or higher
    E11-14 (CANL) - E11-4 (CG) W-W-B Ignition switch off 200 Ω or higher
    E11-6 (CANH) - E11-16 (BAT) LG-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E11-14 (CANL) - E11-16 (BAT) W-G Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
  4. SKID CONTROL ECU WITH ACTUATOR (w/o VSC)
    1. Disconnect the connector from the skid control ECU.
    2. Measure the resistance according to the value (s) in the table below.
    Fig 7: Identifying A66 Skid Control ECU With Actuator Connector (W/O VSC)
    G06010939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    A66-25 (CANH) - A66-14 (CANL) R-W Ignition switch off 54 to 69 Ω
    A66-25 (CANH) - A66-1 (GND1) R-W-B Ignition switch off 200 Ω or higher
    A66-14 (CANL) - A66-1 (GND1) W-W-B Ignition switch off 200 Ω or higher
    A66-25 (CANH) - A66-24 (+BM) R-L Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    A66-14 (CANL) - A66-24 (+BM) W-L Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
  5. SKID CONTROL ECU WITH ACTUATOR (w/ VSC)
    1. Disconnect the connector from the skid control ECU.
    2. Measure the resistance according to the value (s) in the table below.
    Fig 8: Identifying A51 Skid Control ECU With Actuator Connector (W/ VSC)
    G06010940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    A51-25 (CANH) - A51-14 (CANL) R-W Ignition switch off 54 to 69 Ω
    A51-25 (CANH) - A51-1 (GND1) R-W-B Ignition switch off 200 Ω or higher
    A51-14 (CANL) - A51-1 (GND1) W-W-B Ignition switch off 200 Ω or higher
    A51-25 (CANH) - A51-24 (BM) R-L Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
    A51-14 (CANL) - A51-24 (BM) W-L Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
  6. STEERING ANGLE SENSOR
    1. Disconnect the connector from the steering angle sensor.
    2. Measure the resistance according to the value (s) in the table below.
    Fig 9: Identifying E49 Steering Angle Sensor Connector
    G06010941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E49-3 (CANH) - E49-2 (CANL) BR-W Ignition switch off 54 to 69 Ω
    E49-3 (CANH) - E49-1 (ESS) BR-BR Ignition switch off 200 Ω or higher
    E49-2 (CANL) - E49-1 (ESS) W-BR Ignition switch off 200 Ω or higher
    E49-3 (CANH) - E49-S (BAT) BR-W Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E49-2 (CANL) - E49-5 (BAT) W-W Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
  7. YAW RATE SENSOR
    1. Disconnect the connector from the yaw rate sensor.
    2. Measure the resistance according to the value (s) in the table below.

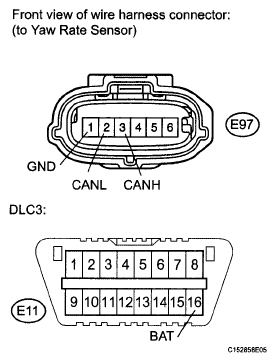

    Fig 10: Identifying Yaw Rate Sensor And E11 DLC3
    G06010942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E97-3 (CANH) - E97-2 (CANL) L-W Ignition switch off 54 to 69 Ω
    E97-3 (CANH) - E97-1 (GND) L-BR Ignition switch off 200 Ω or higher
    E97-2 (CANL) - E97-1 (GND) W-BR Ignition switch off 200 Ω or higher
    E97-3 (CANH) - E11-16 (BAT) L-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E97-2 (CANL) - E11-16 (BAT) W-G Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
  8. CENTER AIRBAG SENSOR
    1. Disconnect the connector from the center airbag sensor.
    2. Measure the resistance according to the value (s) in the table below.

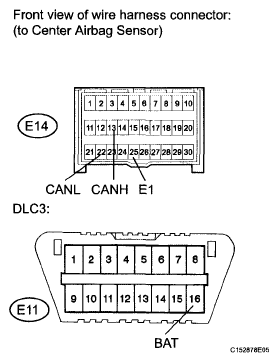

    Fig 11: Identifying E14 Center Airbag Sensor And E11 DLC3
    G06010943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E14-13 (CANH) - E14-22 (CANL) Y-W Ignition switch off 54 to 69 Ω
    E14-13 (CANH) - E14-25 (E1) Y-W-B Ignition switch off 200 Ω or higher
    E14-22 (CANL) - E14-25 (E1) W-W-B Ignition switch off 200 Ω or higher
    E14-13 (CANH) - E11-16 (BAT) Y-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E14-22 (CANL) - E11-16 (BAT) W-G Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
  9. ECM
    1. Disconnect the connector from the ECM.

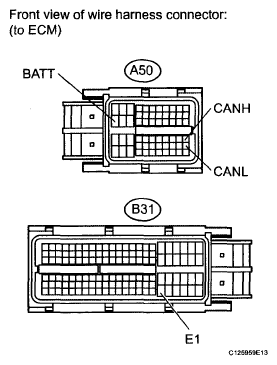

      Fig 12: Identifying A50 And B31 Connectors
      G06010944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    A50-41 (CANH) - A50-49 (CANL) Y-W Ignition switch off 108 to 132 Ω
    A50-41 (CANH) - B31-104 (E1) Y-BR Ignition switch off 200 Ω or higher
    A50-49 (CANL) - B31-104 (E1) W-BR Ignition switch off 200 Ω or higher
    A50-41 (CANH) - A50-20 (BATT) Y-P Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
    A50-49 (CANL) - A50-20 (BATT) W-P Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
  10. AIR CONDITIONING AMPLIFIER (for Automatic Air Conditioning System)
    1. Disconnect the amplifier connector.
    2. Measure the resistance according to the value (s) in the table below.
    Fig 13: Identifying E50 Air Conditioning Amplifier Connector
    G06010945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E30-11 (CANH) - E30-12 (CANL) V-W Ignition switch off 54 to 69 Ω
    E30-11 (CANH) - E30-14 (GND) V-BR Ignition switch off 200 Ω or higher
    E30-12 (CANL) - E30-14 (GND) W-BR Ignition switch off 200 Ω or higher
    E30-11 (CANH) - E30-21 (B) V-W Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E30-12 (CANL) - E30-21 (B) W-W Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
  11. AIR CONDITIONING AMPLIFIER (for Manual Air Conditioning System)
    1. Disconnect the amplifier connector.
    2. Measure the resistance according to the value (s) in the table below.

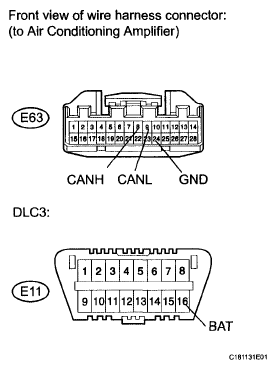

    Fig 14: Identifying E63 Air Conditioning Amplifier And E11 DLC3
    G06010946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E63-8 (CANH) - E63-9 (CANL) V-W Ignition switch off 54 to 69 Ω
    E63-8 (CANH) - E63-24 (GND) V-BR Ignition switch off 200 Ω or higher
    E63-9 (CANL) - E63-24 (GND) W-BR Ignition switch off 200 Ω or higher
    E63-8 (CANH) - E11-16 (BAT) V-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E63-9 (CANL) - E11-16 (BAT) W-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
  12. COMBINATION METER
    1. Disconnect the connector from the combination meter.
    2. Measure the resistance according to the value (s) in the table below.
    Fig 15: Identifying E46 Combination Meter Connector
    G06010947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E46-27 (CANH) - E46-28 (CANL) G-W Ignition switch off 108 to 132 Ω
    E46-27 (CANH) - E46-30 (ET) G-BR Ignition switch off 200 Ω or higher
    E46-28 (CANL) - E46-30 (ET) W-BR Ignition switch off 200 Ω or higher
    E46-27 (CANH) - E46-32 (B) G-W Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E46-28 (CANL) - E46-32 (B) W-W Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E46-13 (TX-) - E46-14 (TX1-) W-G Ignition switch off 108 to 132 Ω
    E46-13 (TX-) - E46-30 (ET) G-BR Ignition switch off 200 Ω or higher
    E46-14 (TX1-) - E46-30 (ET) W-BR Ignition switch off 200 Ω or higher
    E46-13 (TX-) - E46-32 (B) G-W Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
    E46-14 (TX1-) - E46-32 (B) W-W Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
  13. CERTIFICATION ECU
    1. Disconnect the connector from the certification ECU.
    2. Measure the resistance according to the value (s) in the table below.
    Fig 16: Identifying E36 Certification ECU Connector
    G06010948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E36-27 (CANH) - E36-28 (CANL) SB-W Ignition switch off 54 to 69 Ω
    E36-27 (CANH) - E36-17 (E) SB - W-B Ignition switch off 200 Ω or higher
    E36-28 (CANL) - E36-17 (E) W-W-B Ignition switch off 200 Ω or higher
    E36-27 (CANH) - E36-1 (+B) SB-W Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
    E36-28 (CANL) - E36-1 (+B) W-W Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher

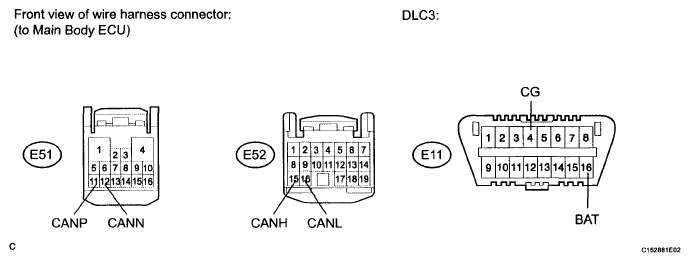

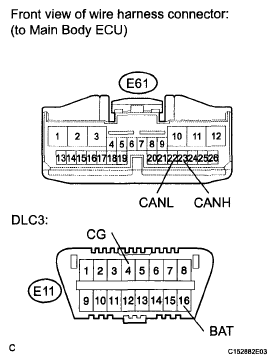

  14. MAIN BODY ECU (w/ Smart Key System or Automatic Light Control System)
    1. Disconnect the connector from the main body ECU.
    2. Measure the resistance according to the value (s) in the table below.
    Fig 17: Identifying E51, E52 And E11 Connectors
    G06010949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E52-15 (CANH) - E52-16 (CANL) R-W Ignition switch off 54 to 69 Ω
    E52-15 (CANH) - E11-4 (CG) R-W-B Ignition switch off 200 Ω or higher
    E52-16 (CANL) - E11-4 (CG) W-W-B Ignition switch off 200 Ω or higher
    E52-15 (CANH) - E11-16 (BAT) R-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E52-16 (CANL) - E11-16 (BAT) W-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E51-11 (CANP) - E51-12 (CANN) R-W Ignition switch off 108 to 132 Ω
    E51-11 (CANP) - E11-4 (CG) R-W-B Ignition switch off 200 Ω or higher
    E51-12 (CANN) - E11-4 (CG) W-W-B Ignition switch off 200 Ω or higher
    E51-11 (CANP) - E11-16 (BAT) R-G Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
    E51-12 (CANN) - E11-16 (BAT) W-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
  15. MAIN BODY ECU (w/o Smart Key System, Automatic Light Control System)
    1. Disconnect the connector from the main body ECU.
    2. Measure the resistance according to the value (s) in the table below.
    Fig 18: Identifying E61 Main Body ECU And E11 DLC3
    G06010950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E61-23 (CANH) - E61-22 (CANL) R-W Ignition switch off 54 to 69 Ω
    E61-23 (CANH) - E11-4 (CG) R-W-B Ignition switch off 200 Ω or higher
    E61-22 (CANL) - E11-4 (CG) W-W-B Ignition switch off 200 Ω or higher
    E61-23 (CANH) - E11-16 (BAT) R-G Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
    E61-22 (CANL) - E11-16 (BAT) W-G Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
  16. POWER STEERING ECU
    1. Disconnect the power steering ECU connectors.
    2. Measure the resistance according to the value (s) in the table below.

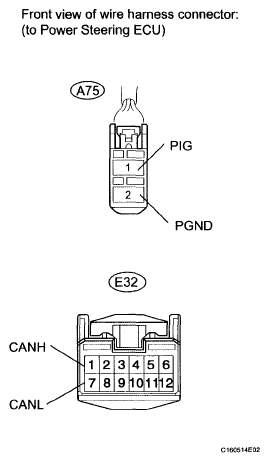

    Fig 19: Identifying A75 Power Steering ECU And E32 Connectors
    G06010951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E32-1 (CANH) - E32-7 (CANL) SB-W Ignition switch off 54 to 69 Ω
    E32-1 (CANH) - A75-2 (PGND) SB-W-B Ignition switch off 200 Ω or higher
    E32-7 (CANL) - A75-2 (PGND) W-W-B Ignition switch off 200 Ω or higher
    E32-1 (CANH) - A75-1 (PIG) SB-L Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
    E32-7 (CANL) - A75-1 (PIG) W-L Cable Is disconnected from negative (-) battery terminal 6 kΩ or higher
  17. ACCESSORY GATEWAY
    1. Measure the resistance according to the value (s) in the table below.

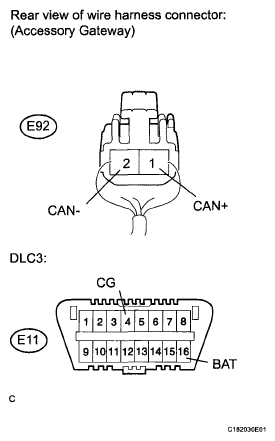

    Fig 20: Identifying E11 DLC3 And Accessory Gateway Connectors
    G06010952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard Resistance

    STANDARD RESISTANCE SPECIFICATION

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E92-1 (CAN+) - E92-2 (CAN-) GR-W Ignition switch off 54 to 69 Ω
    E92-1 (CAN+) - E11-4 (CG) R-W-B Ignition switch off 200 Ω or higher
    E92-2 (CAN-) - E11-4 (CG) W-W-B Ignition switch off 200 Ω or higher
    E92-1 (CAN+) - E11-16 (BAT) R-G Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
    E92-2 (CAN-) - E11-16 (BAT) W-G Cable is disconnected from negative (-) battery terminal 6 kΩ or higher
scientia non olet · About Mike's Workshop Manuals
