Inspection Procedure

1. Disconnect the connectors from the television display assembly and radio receiver.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   CDR+ - R+	Always	Below 1 Ω
   CDR- - R-	Always	Below 1 Ω
   CDL+ - L+	Always	Below 1 Ω
   CDL- - L-	Always	Below 1 Ω
   CSLD - SG1	Always	Below 1 Ω
   R- - Body ground	Always	10 kΩ or higher
   L+ - Body ground	Always	10 kΩ or higher
   L- - Body ground	Always	10 kΩ or higher
   R+ - Body ground	Always	10 kΩ or higher
   SG1 - Body ground	Always	10 kΩ or higher

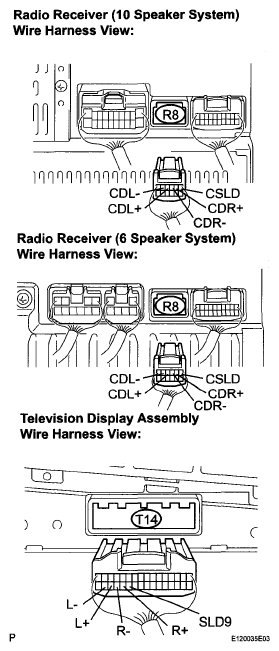

   Fig 1: Identifying Radio Receiver And Television Display Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Reconnect the television display assembly connector.
Fig 2: Identifying Television Display Assembly Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the waveform according to the conditions shown in the table below.

   Standard

   TESTER CONNECTION SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   R+ - Body ground	Voice sound is being produced	A waveform synchronized with sound is output
   R- - Body ground	Voice sound is being produced	A waveform synchronized with sound is output
   L+ - Body ground	Voice sound is being produced	A waveform synchronized with sound is output
   L- - Body ground	Voice sound is being produced	A waveform synchronized with sound is output

NG: REPLACE TELEVISION DISPLAY ASSEMBLY

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
