Cranking Holding Function Circuit: Wiring Diagram

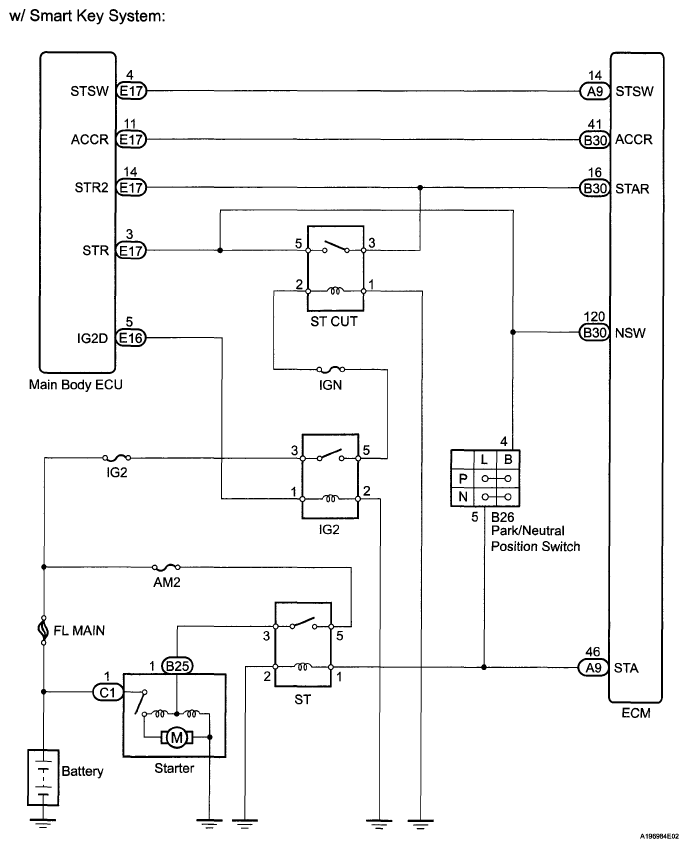

Fig 1: Starter Relay - Wiring Diagram (W/ Smart Key System)

G05997483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
